MIKRON - HSM 800CH-MIL-MIK-2003-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

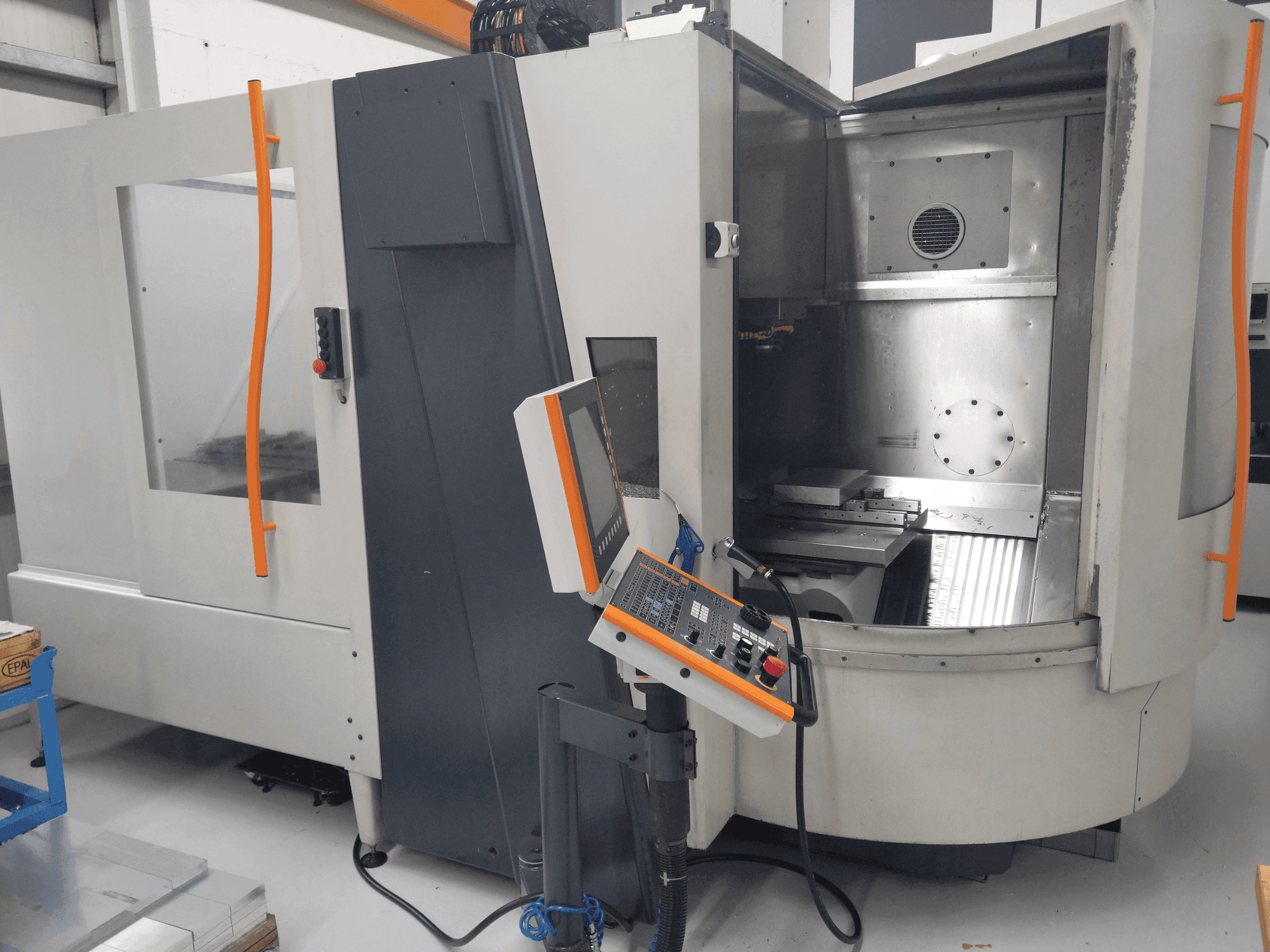

This 3-axis MIKRON HSM 800 vertical machining center was manufactured in 2003. Ideal for precision machining, it offers robust construction and reliability. If you are looking to get high-quality milling capabilities consider the MIKRON HSM 800 machine we have for sale. Contact us for more information.

Overview

  • brand: MIKRON
  • year: 2003
  • MODEL: HSM 800
  • production hours: 3760
  • application type: Milling
  • Location: Switzerland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - MIKRON HSM 800

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC530

Movement

  • Number of Axes: 3
  • X-axis Travel: 800 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Speed: 24000 RPM

Additional Information

Additional equipment

  • Internal coolant supply with ARO belt filter system and IFS Fox extraction system
  • Optional accessories such as clamping devices and tools available

Machine Benefits

Technical Machine Benefits

  • Feed drives: ac servo motors (3000 rpm)
  • Transmission: toothed belt on ball screw spindle
  • Feed speed (x, y, z): 0 - 40 m/min
  • Axis acceleration (x, y, z): 1g (10 m/s²)
  • Wpc 4-station 800x600 mm/ 3700 operating hours
  • 3845 program run hours, 3760 spindle hours

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
