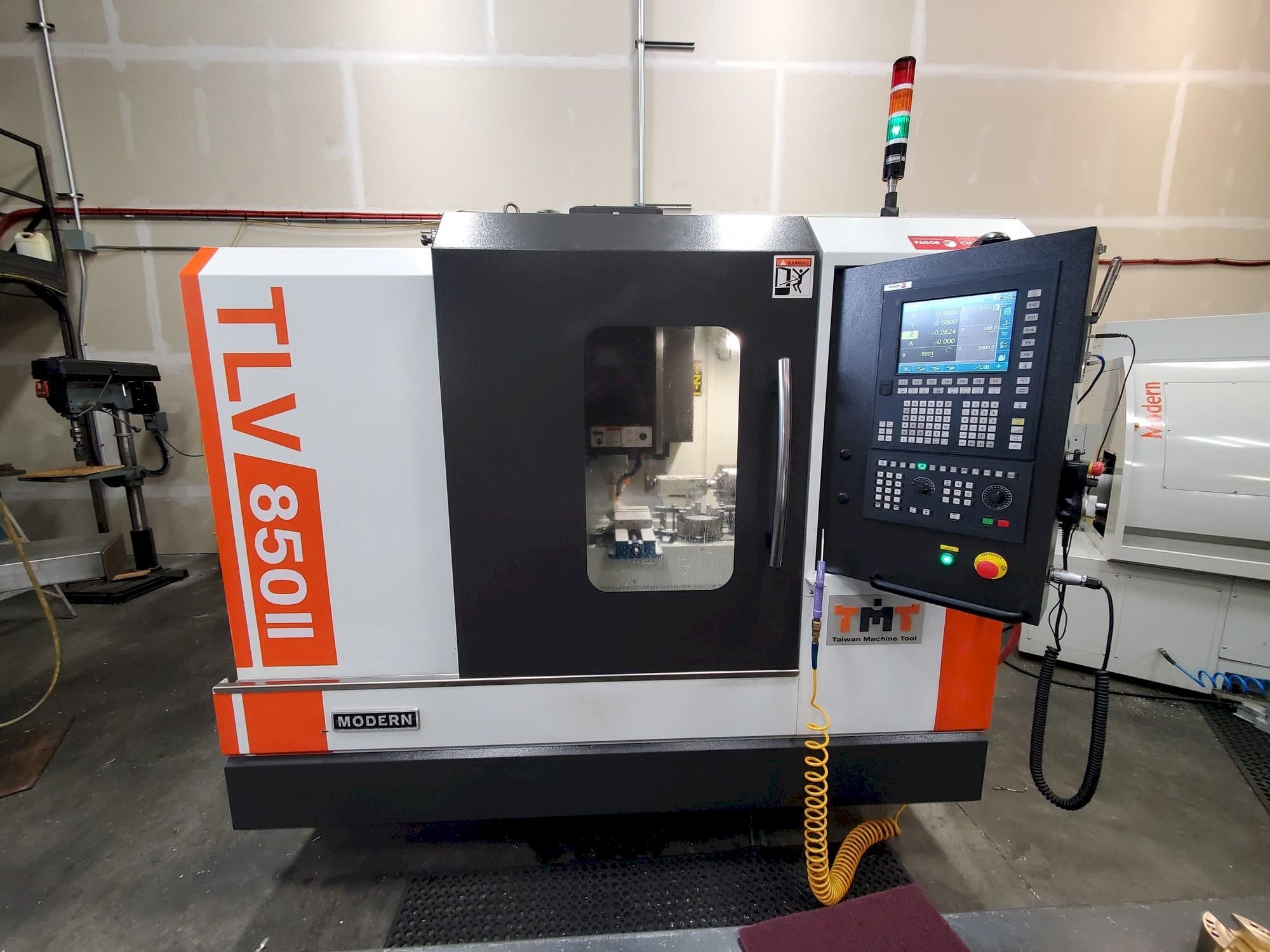

MICROCUT Modern TLV-85011 Vertical Machining Center

Show in original language

This MICROCUT Modern TLV-85011 Vertical Machining Center was built in the year 2015. It is equipped with a 0i-M controller. This machine incorporates a spindle speed up to 10000 rpm.

Overview

brand: MICROCUT
year: 2015
MODEL: Modern TLV-85011
application type: Milling
Location: Canada
machine type: Vertical Machining Centre

Technical Information - MICROCUT Modern TLV-85011

Dimensions

Table Length: 1000 mm
Table Load: 500 kg
Table Width: 530 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Power: 7.5 kW
Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

T-slot (size x number x pitch): 18 mm x 5t x 100 mm
X axis stroke: 850 mm
Y axis stroke: 530 mm
Z axis stroke: 580 mm
Distance from table surface to spindle nose: 100 – 680 mm
Distance from coumn cover to spindle center line: 586 mm
Spindle taper: bt-40
Rapid feedrate (x/y/z): 36/36/30 m/min
Tool storage capacity: arm type 24t pcs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
