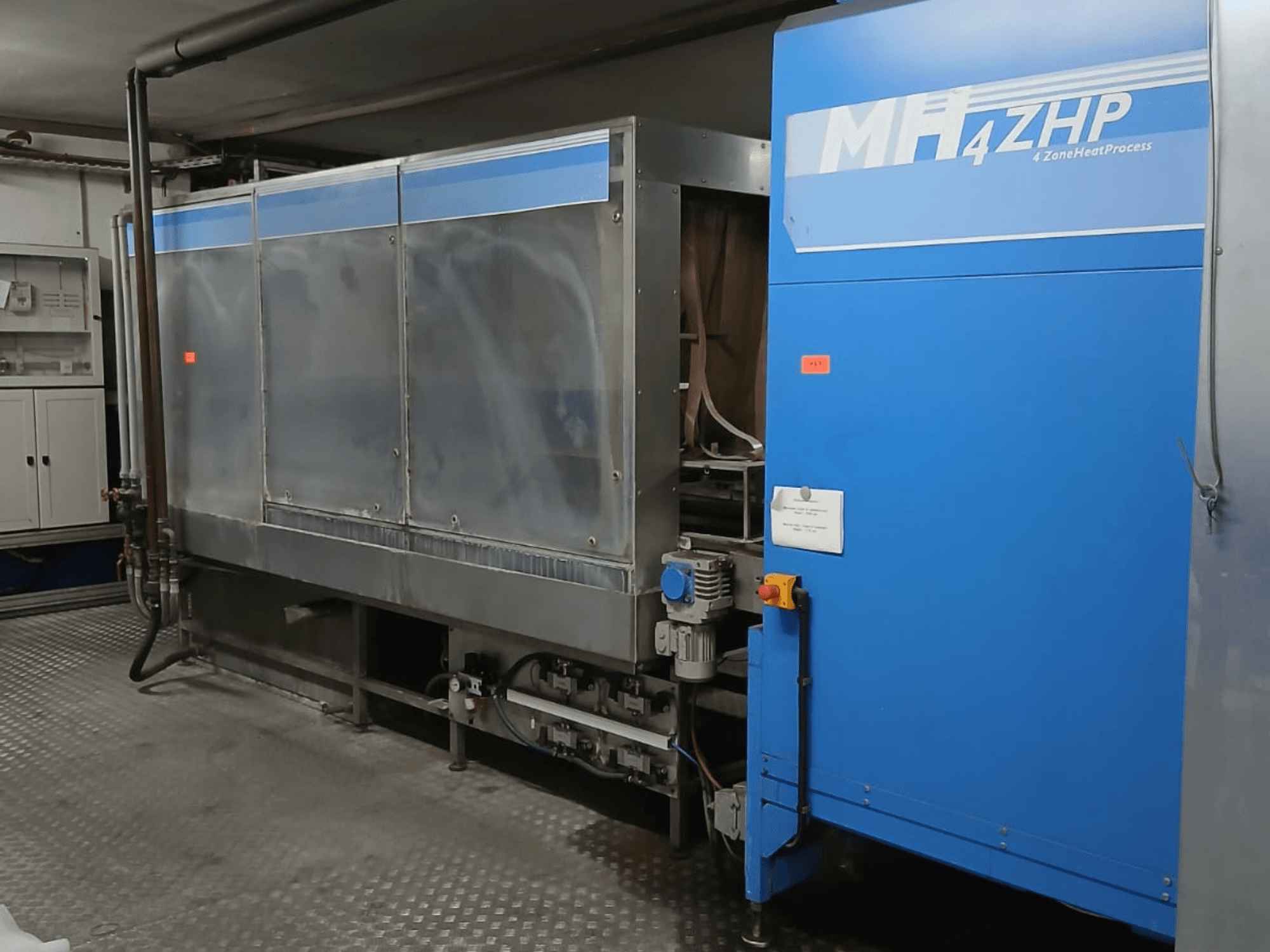

This MH 4ZHP was manufactured in 2010. It features a continuous furnace, cooling system, and a conveyor system with an accumulation section. Key specifications include a passage width of 650 mm, passage height of 1100 mm, and a total system length of 11.53 m. Ideal for operations requiring extensive heating and cooling processes. Contact us for more information about this machine.
Overview
- brand: MH
- year: 2010
- MODEL: 4ZHP
- application type: Other Machine Tools
- Location: Germany
- machine type: Machine Tool
Additional Information
Passage width: 650 mm
Passage height: 1100 mm
Coil length: 4500 mm
Overall length: 5850 mm
Heating capacity: 96 kW
Heating zones: 4
Cooling zone
Length: 1500 mm
Max. pipe length: 1500 mm
Overall length: 1500 mm
Dimensions and weights
Frost length: 6.05 m
Frost width: 1.70 m
Frost height: 2.60 m
Frost weight: 2.4 t
System length: 11.53 m
System width: 3.81 m
System height: 2.55 m
System weight: 3.2 t
Utilities and emissions
Pneumatic supply: operating pressure 6 bar, dry, oil-free
Water supply: 3 bar
Power supply: 230/400 volts, 50 Hz, 120 kW
Noise emission: < 70 dB(A)
Additional equipment
Cooling system (cooling unit)
Conveyor system (accumulation section)
Cooling water collection tank with level monitoring
Tool carrier
