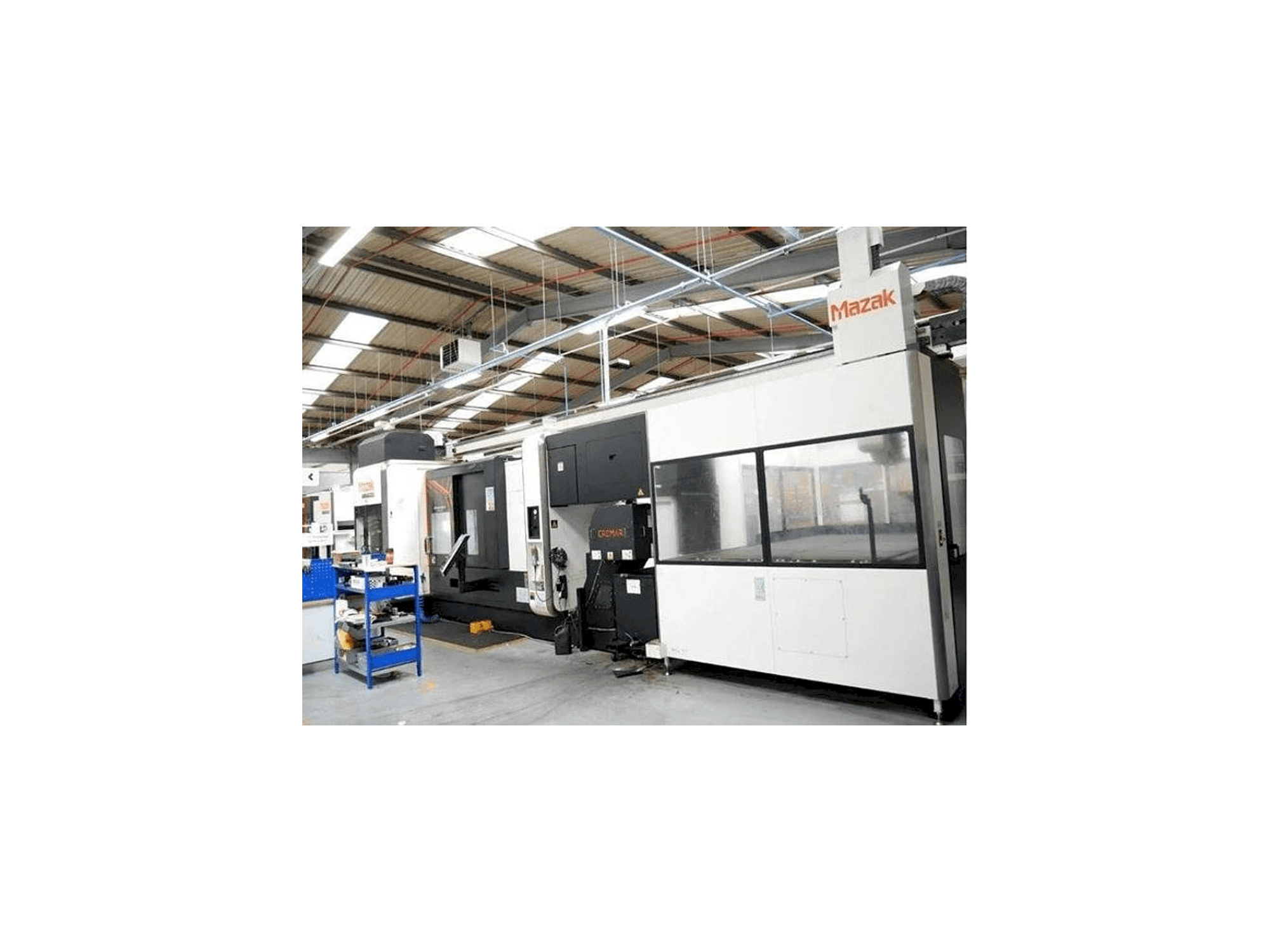

Front view of Mazak INTEGREX i-400 ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak INTEGREX i-400 ST

Photo Gallery

Mazak - INTEGREX i-400 STIT-TUR-MAZ-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak INTEGREX i-400 ST

Show in original language

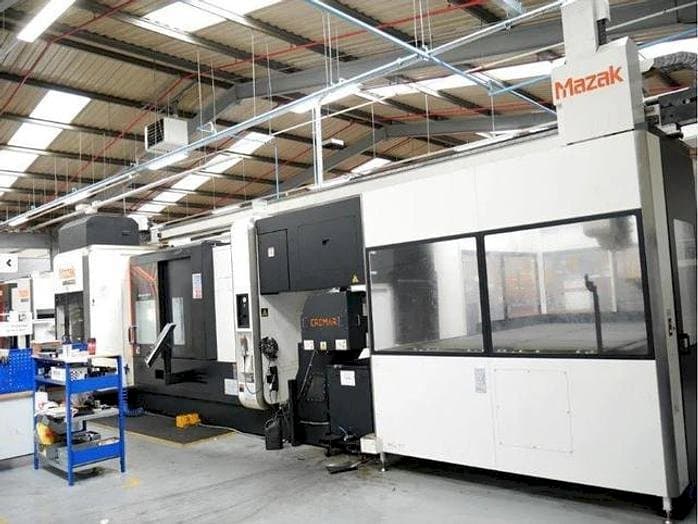

This Mazak INTEGREX i-400 ST lathe was made in 2016. It has a Smooth X control unit. This 5 axis machine works with a milling spindle speed up to 12000 rpm and a high pressure of 70 bar. It includes a Renishaw touch probe and a hand D3 with 40 Kg (x2).

Overview

brand: Mazak
year: 2016
MODEL: INTEGREX i-400 ST
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - Mazak INTEGREX i-400 ST

Control Unit

Model: Smooth X

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 30 Kw
Number of axis: 5

Movement

W-Axis Movement: 1539 mm

Turret

Number of tool slots: 9

Media

Chip conveyor: Yes

Additional equipment

- Renishaw touch probe

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle bar passage 102 mm
- - 80 mm secondary spindle bar passage
- - High pressure 70 bar
- - Spindle connection (spindle) kapto
- - Secondary spindle power 26 kw
- - X2 axis travel 230 mm
- - Y axis (strokes) 260 mm
- - Z axis (strokes) 1585 mm
- - Machine configuration: as080 overload detection system
- - At385 capto-tool charger 110
Qualitative Machine Benefits:
- - Pl083 signaling tower (3 color lights, square
- - Si098 2nd spdl c-ax. Continuous sync
- - Co029 air blow on the first spindle
- - Cs808 i preparation for 70 bar refrigerant (europe) + 70 bar high pressure system
- - Mb267 preparation for renishaw
- - Mt201 tool break detector loader side
- - No092 air blow milling spindle
- - No123 tool radius compensation / 5 axis
- - No442 g00 constant slope
- - Np326 for smoothx 5 axis machining package

Extra information

- HAND D3 WITH 40 KG X 2; MAX PIECE DIAMETER 350 MM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
