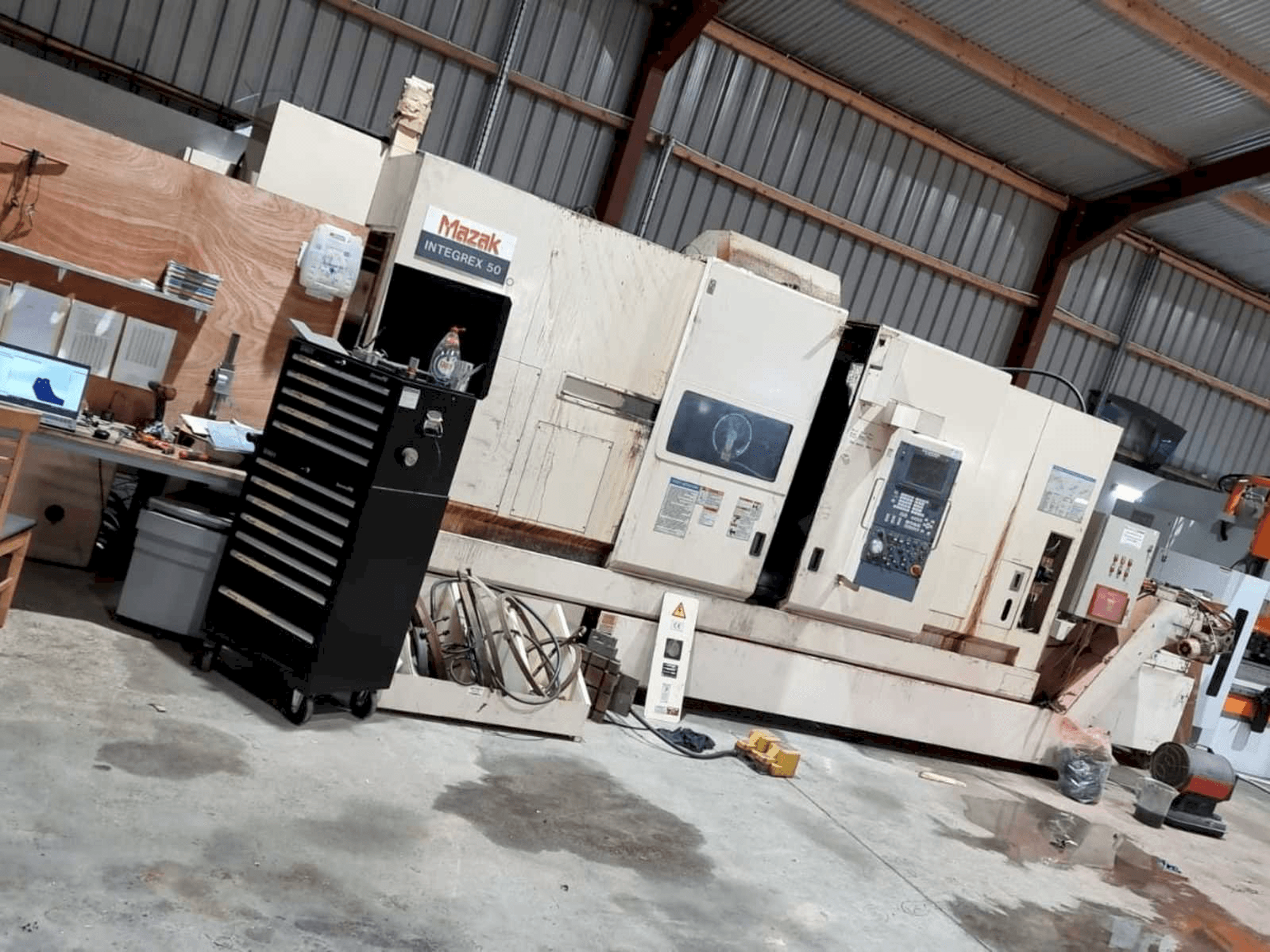

Front view of Mazak Integrex 50YR-1500U machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 50YR-1500U

Photo Gallery

Mazak - Integrex 50YR-1500UIE-TUR-MAZ-1999-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 50YR-1500U Lathe machine

Show in original language

This Mazak Integrex 50YR-1500U Lathe machine was manufactured in Japan in 1999. This machine have 9082 spindle hours and it is equipped with a Mazak Mazatrol PC Fusion CNC 640MT control unit. This 5 axis machine can works with a spindle speed up to 3000 rpm.

Overview

brand: Mazak
year: 1999
MODEL: Integrex 50YR-1500U
production hours: 9082
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 50YR-1500U

General Data

Measurements width: 7500 mm
Measurements depth: 2950 mm
Measurements height: 2200 mm
Machine weight: 16000 kg

Control Unit

Model: Mazatrol PC Fusion CNC 640MT
CNC main language: English
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 3000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 645 mm
Y-AXIS Movement: 210 mm
Z-AXIS Movement: 1550 mm
B-AXIS Movement: 90 deg
C-AXIS Movement: 360 deg

Workpiece

Workpiece drm over bed: 700 mm

Tools

Slots in storage: 60
Type of tool holder: CAT 50

Media

Main electronic connection: 400 V
Power consumption: 71,18 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

SMW Autoblok Hydraulic Chuck
Tailstock
Tooling
Toolholders
Chuck Jaws
Coolant Filtration
Manuals

Machine Benefits

Qualitative Machine Benefits

Low working hours

Technical Machine Benefits

Heavy duty machine
Milling spindle
Turning spindle
60 station atc

Machine History

Industries

Agricultural industry

End product

Agricultural parts

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
