Matsuura Lumex Avance-25 3D Printer

Show in original language

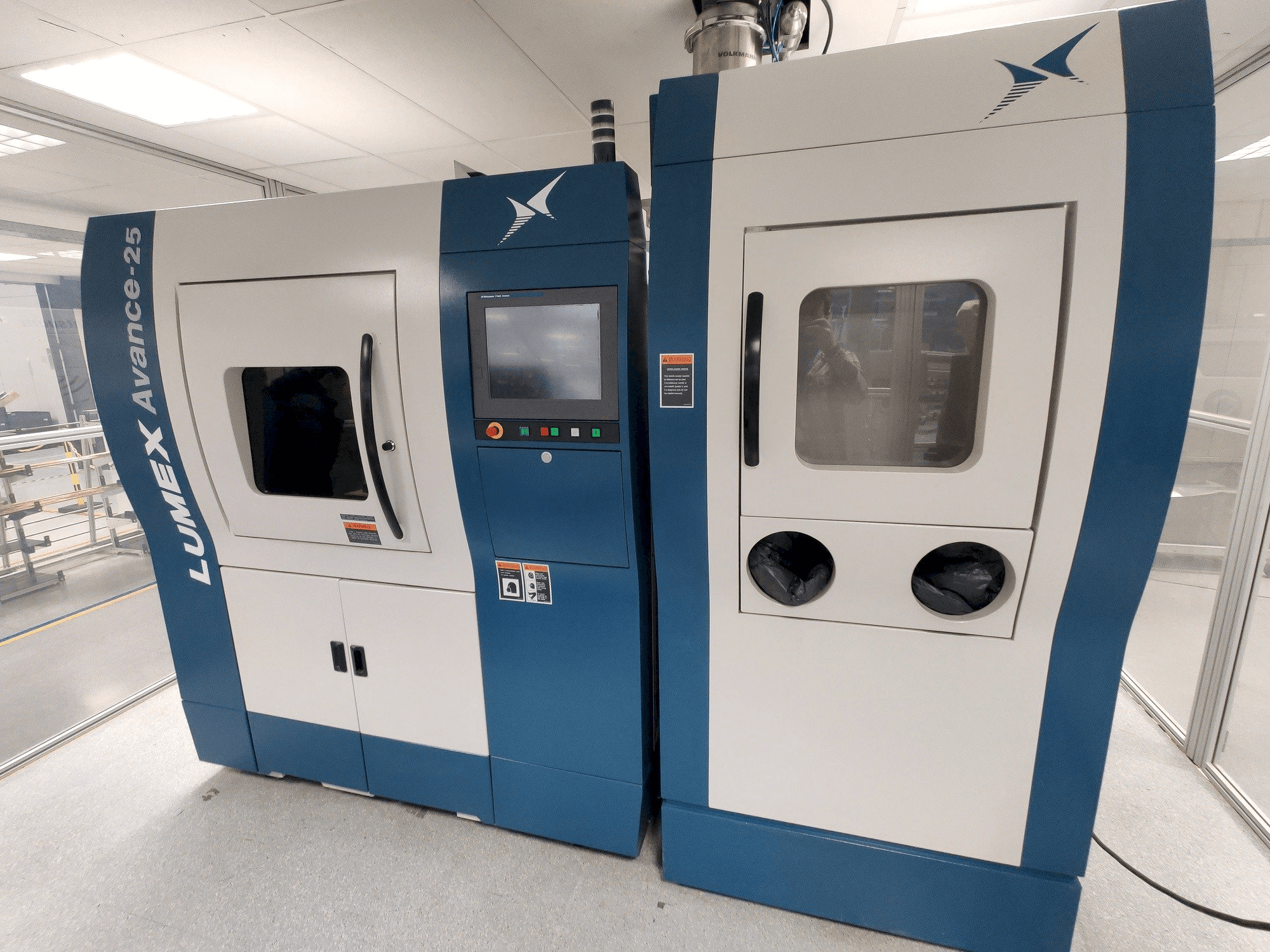

This Matsuura Lumex Avance-25 3D Printer was manufactured in the year 2018 in Japan. It is equipped with a Fanuc 31i Model B control unit and has 3 axis. The machine has a spindle speed of 450-45000 rpm.

Overview

brand: Matsuura
year: 2018
MODEL: Lumex Avance-25
application type: 3D Printing
Location: Netherlands
machine type: Metal 3D Printer
availability: Immediately
control unit brand: FANUC

Technical Information - Matsuura Lumex Avance-25

Control Unit

Brand: FANUC
Model: 31i Model B

Main drive

Spindle speed range: 450-45000 1/MIN
Spindle bore: 25 mm
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 260 mm
Z-AXIS Movement: 100 mm

Tools

Slots in storage: 20
Max weight: 0,5 kg
Max tool diameter: 10 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Oscillator output range: 100~1000 w
- - Wavelength: 1070±5 nm
- - Diameter of laser beam at build area: 0. 1~0. 6 mm
- - Laser wavelength: 1070±10 nm
- - Maximum laser power: 400 w
- - Exposure speed: up to 5100 mm/s
- - Repeatability, scanner position (@ table surface): ±20 μm
- - Oil cooler tank capacity: 7 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
