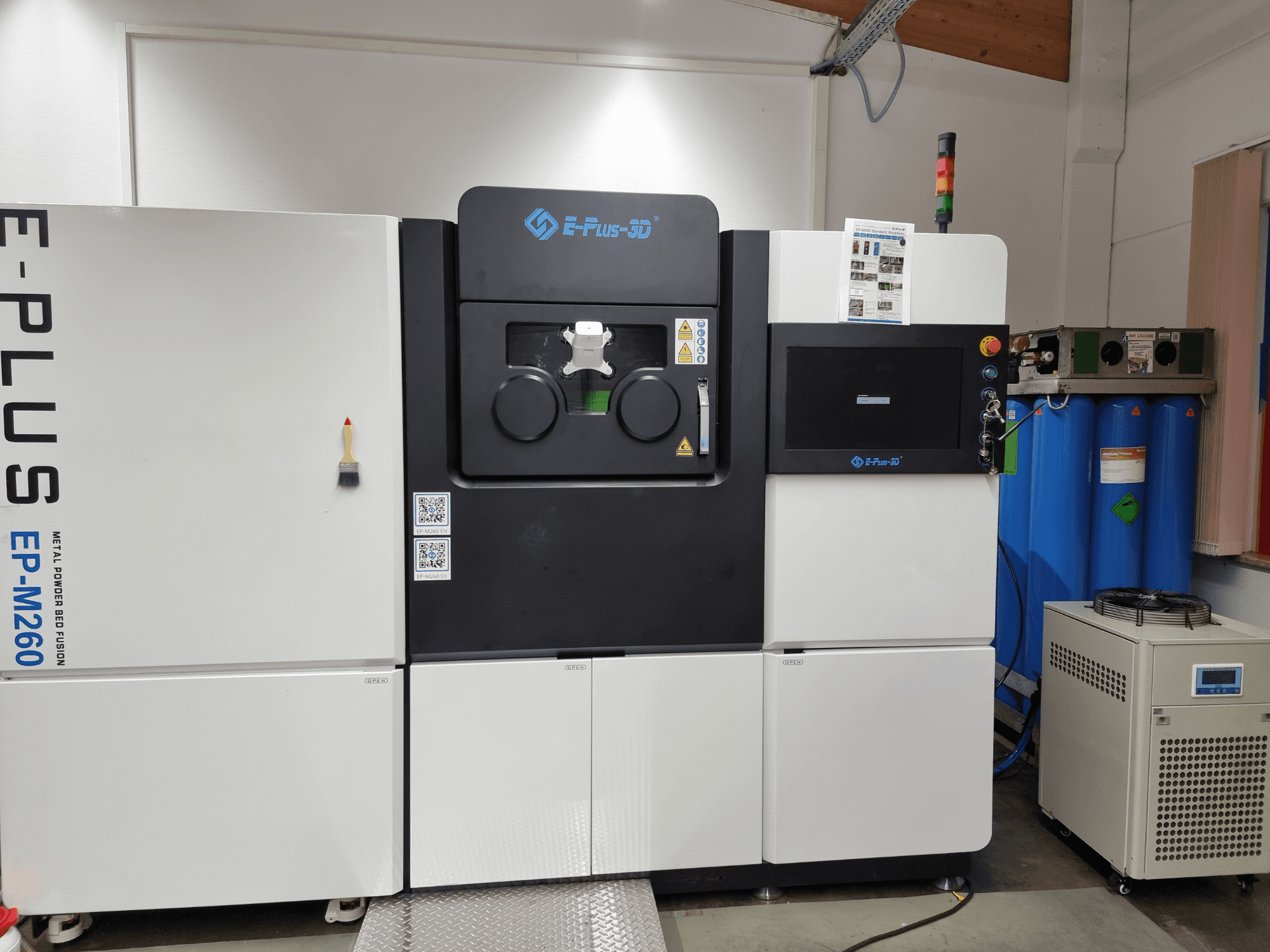

Metal 3D printer manufactured in 2021. This Eplus3D EP-M260 features a working area of 260 mm x 260 mm x 390 mm and a laser configuration of 1x 500 W. It has a maximum scanning speed of 8 m/s and a deposition rate of 15–35 cm³/h. If you are looking to get high-quality metal additive manufacturing capabilities, consider the Eplus3D EP-M260 machine we have for sale. Contact us for further details.
Overview
- brand: Eplus3D
- year: 2021
- MODEL: EP-M260
- production hours: 475
- application type: 3D Printing
- Location: Germany
- machine type: Metal 3D Printer
- control unit brand: SIEMENS
Technical Information - Eplus3D EP-M260
Control Unit
- Control Brand: SIEMENS
- Control Model: SIMATIC HMI
Dimensions
- Machine Height: 2410 mm
- Machine Length: 2800 mm
- Machine Weight: 2300 kg
- Machine Width: 1300 mm
Movement
- Number of Axes: 3
- X-axis Travel: 266 mm
- Y-axis Travel: 266 mm
- Z-axis Travel: 390 mm
Additional Information
- Machine Type: Metal Powder Bed Fusion Machine
- Working Area: 260 mm x 260 mm x 390 mm (W x D x H)
- External Dimensions: 2800 mm x 1300 mm x 2410 mm (L x W x H)
- Machine Hours: 475 h
- Laser Configuration: 1x Laser, 500 W
- Power Supply: AC 380V, 50Hz, 24A, 7.5kW
- Max. Scanning Speed: 8 m/s
- Deposition Rate (Single Laser): 15–35 cm³/h
- Layer Thickness: 20 μm – 120 μm
- Accuracy (< 100 mm build size): < ± 0.1 mm
- Accuracy (≥ 100 mm build size): ± 0.1%
- Gas Supply: Ar / N₂
- Oxygen Content in Chamber: < 100 ppm
- Compatible Materials: Titanium, Aluminum, Nickel-based alloys, Cobalt-chromium alloys, Tool steels, Stainless steels
- Last Used Material: Aluminum powder (AlSi10Mg powder can be included)
- Included Accessories:
* E-Plus-3D ATEX-rated Industrial Vacuum Cleaner
* 3B Additive MPS 5 Metal Powder Station (with Siemens SIMATIC HMI Touch Panel)
* Pallet jack for system filter replacement
* Various filters
* Spare recoater blade
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
