Matsuura Lumex Avance 25 hybrid metal printer

Photo Gallery

Matsuura - Lumex Avance 25 hybrid metal printer HU-3DP-MAT-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matsuura Lumex Avance 25 hybrid metal printer For Sale

Show in original language

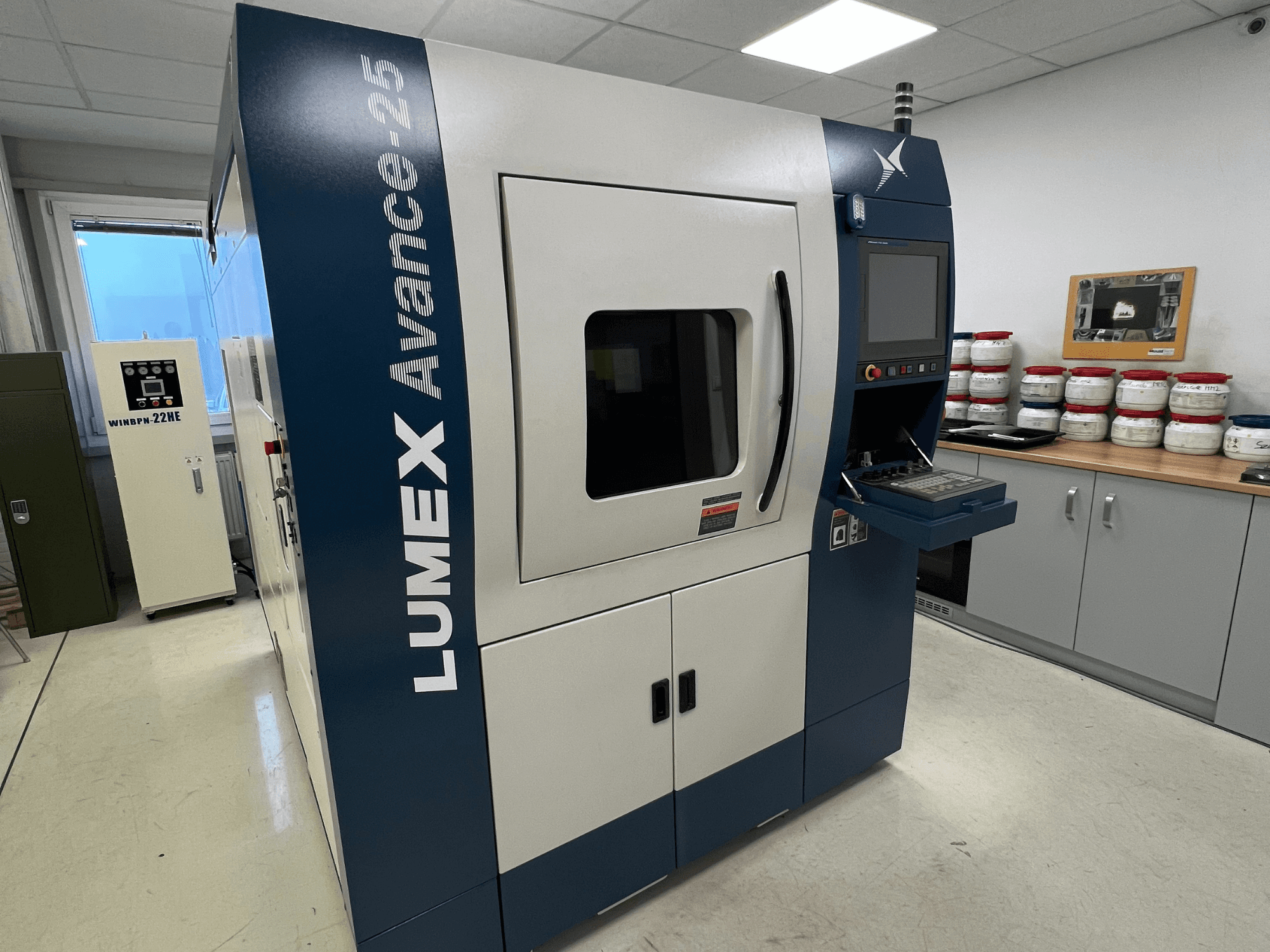

This 3s Matsuura Lumex Avance 25 hybrid metal printer was manufactured in 2019. It features a hybrid system combining metal laser sintering and high-speed milling, with a maximum workpiece size of 250 × 250 mm and a table load capacity of 90 kg. The spindle speed ranges from 450 to 45,000 rpm, accommodating a tool magazine of 20 tools. Consider the opportunity to buy this Matsuura Lumex Avance 25 metal 3D printer. Contact us for further details.

Overview

brand: Matsuura
year: 2019
MODEL: Lumex Avance 25 hybrid metal printer
application type: 3D Printing
Location: Hungary
machine type: Metal 3D Printer

Technical Information - Matsuura Lumex Avance 25 hybrid metal printer

Dimensions

Machine Height: 2050 mm
Machine Weight: 4500 kg

Movement

Number of Axes: 3
X-axis Travel: 260 mm
Y-axis Travel: 260 mm
Z-axis Travel: 100 mm

Additional Information

Working hours: 2,000 h
Technology: Hybrid system (metal laser sintering + high-speed milling on a single platform)
Laser type: Yb fiber laser
Laser power: up to 400 W
Layer thickness: 0.05 mm
Build/work area:
- Max workpiece size: 250 × 250 mm
- Table size: 270 × 270 mm
Axes/travels:
- U-axis (sintering table): 185 mm
- W-axis (powder blade): 522 mm
Spindle (milling):
- Tool holder: BT20 (special Matsuura taper)
- Tool magazine: 20 tools
Accuracy:
- Positioning accuracy (X/Y/Z): ±0.0025 mm
- Repeatability (X/Y/Z): ±0.001 mm
Materials (typical): Tool steels, maraging steel; stainless steels (e.g., 316L, 630); titanium alloys (Ti‑6Al‑4V, Ti‑6Al‑7Nb)
Machine data:
- Power supply: AC 200/220 V, 50/60 Hz
- Installed power: approx. 39 kVA
- Inert gas: Nitrogen / Argon

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
