Makino V33i Graphite
Makino - V33i Graphite
2014
Rs. 6,739,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Makino V33i Graphite Vertical Machining Center
Show in original language

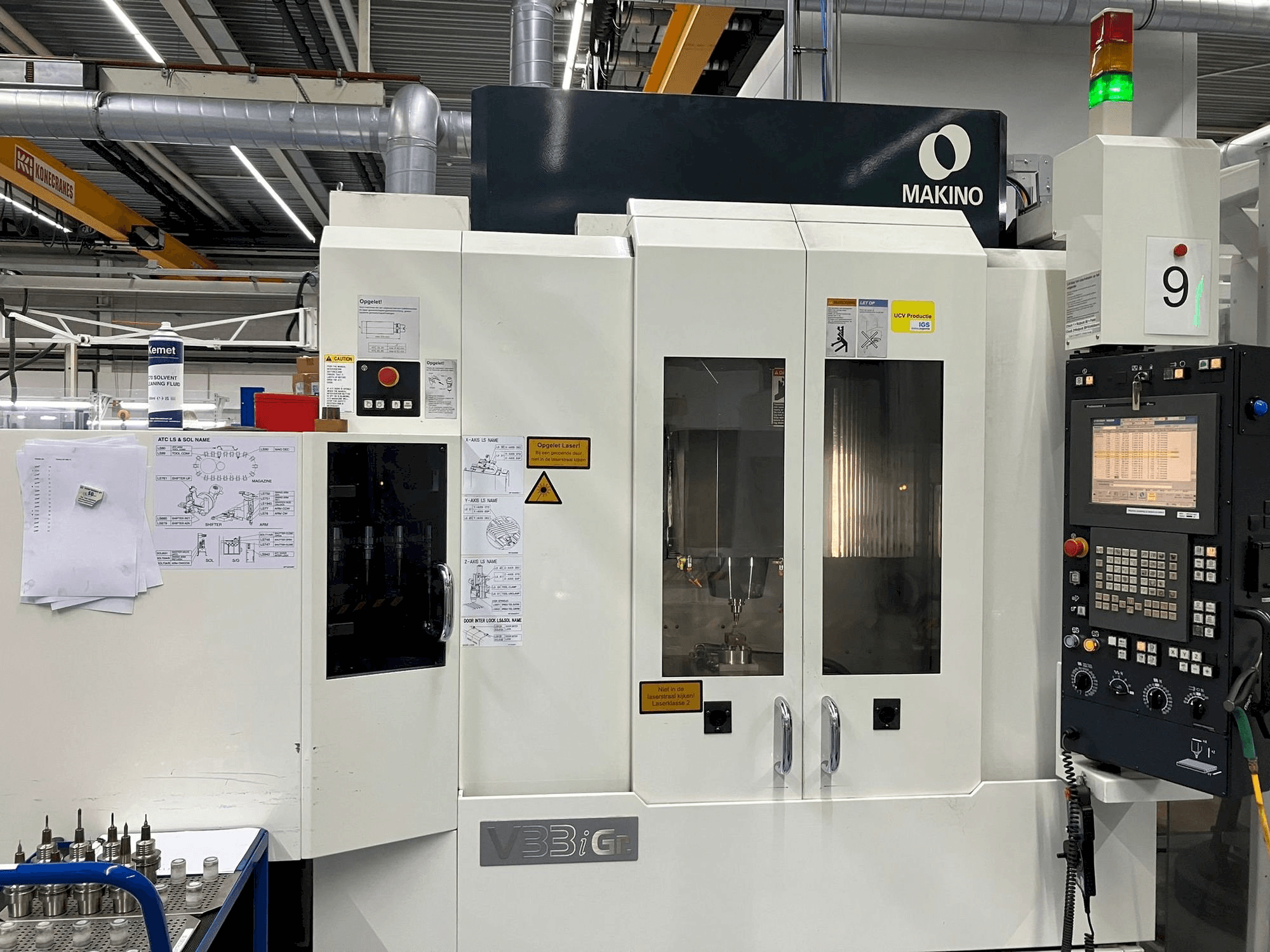

This Makino V33i Graphite Vertical Machining Center was made in the year 2014 in Germany. It is equipped with a Professional 6 control unit and has 3 axis. The machine has a spindle speed of 20000 rpm.
Overview
- brand: Makino
- year: 2014
- MODEL: V33i Graphite
- application type: Milling
- Location: Netherlands
- machine type: Machining centers (vertical)
- availability: 01 02 2024
- control unit brand: Makino
- GINDUMAC ID: NL-MIL-MAK-2014-00001
Technical Information
Control Unit
- Brand: Makino
- Model: Professional 6
Main drive
- Spindle speed range: 20000 1/MIN
- Tool taper: CAT40 (HSK-A63, HSK-F63 & HSK-E32)
- Number of axis: 3
Movement
- X-AXIS Movement: 650 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 350 mm
Table
- Outer length: 750 mm
- Outer width: 450 mm
Additional Information
- Technical Machine Benefits:
- - Rapid traverse 20,000 mm/min
- - Cutting feedrate 10,000 mm/min
- - Maximum workpiece 750 x 635 x 250 mm
- - Maximum payload 300 kg
- - Atc capacity 25 (40, 60)
- - Tool to tool 4. 8 secs
- - Maximum tool diameter 80 mm
- - Maximum tool weight 7 kg
- - Optional atc capacity: yes
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
