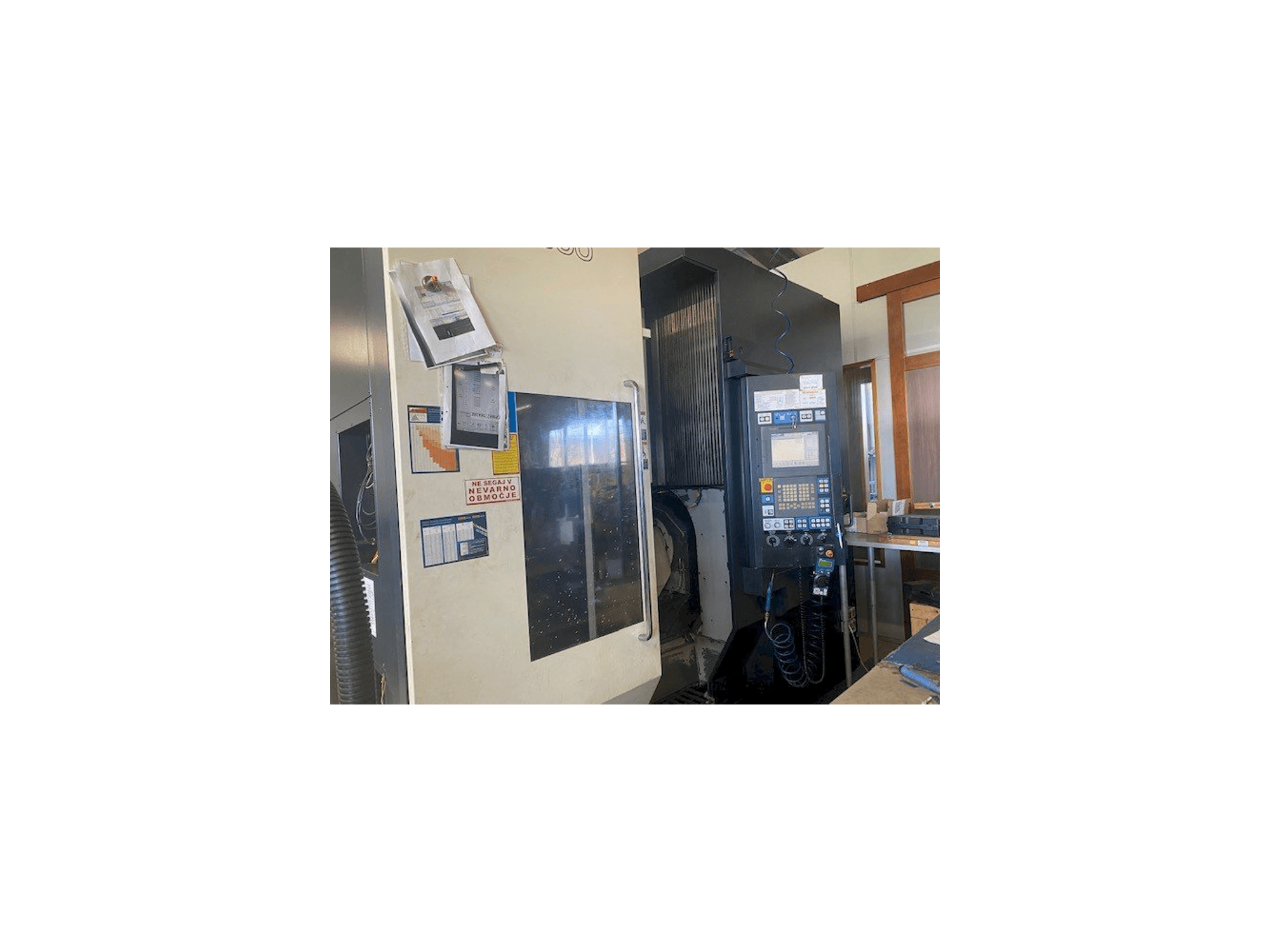

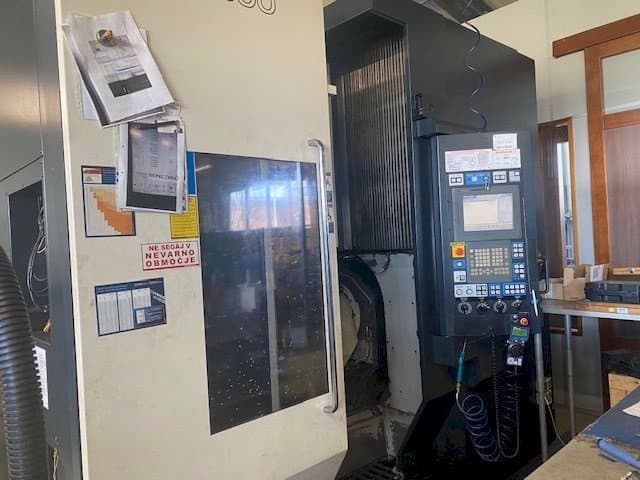

Front view of Makino D500  machine

Makino - D500SI-MIL-MAK-2008-00001

Rs. 8,379,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Makino D500 Vertical Machining Center was built in Japan in the year 2008. This 5 axis machine works with a CNC controller Professional 5 control unit and a spindle speed of 14000 rpm. It also has a pallet changer with 4 pallets of dimensions 300 x 300 mm, cooling through the spindle and Renishaw for tools and parts.

Overview

  • brand: Makino
  • year: 2008
  • MODEL: D500
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • availability: Immediatly

Technical Information - Makino D500

General Data

  • Measurements width: 3550 mm
  • Measurements depth: 2900 mm
  • Measurements height: 3200 mm
  • Machine weight: 18000 kg

Control Unit

  • Model: Cnc controller Professional 5

Main drive

  • Spindle speed range: 14000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 550 mm
  • X-AXIS Rapid traverse: 48000 mm/min
  • Y-AXIS Movement: 1000 mm
  • Y-AXIS Rapid traverse: 50000 mm/min
  • Z-AXIS Movement: 500 mm
  • Z-AXIS Rapid traverse: 50000 mm/min

Media

  • Main electronic connection: 400V / 50Hz

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Pallet changer with 4 pallets dim. : 300 x 300 mm
      • - Atc 100 places for tools
      • - 80 bar cooling through spindle
      • - Renishaw for tools and parts
      • - Hsk 63a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
