Makino A99-A132

Photo Gallery

Makino - A99-A132IT-MIL-MAK-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Makino A99-A132 For sale | gindumac.com

Show in original language

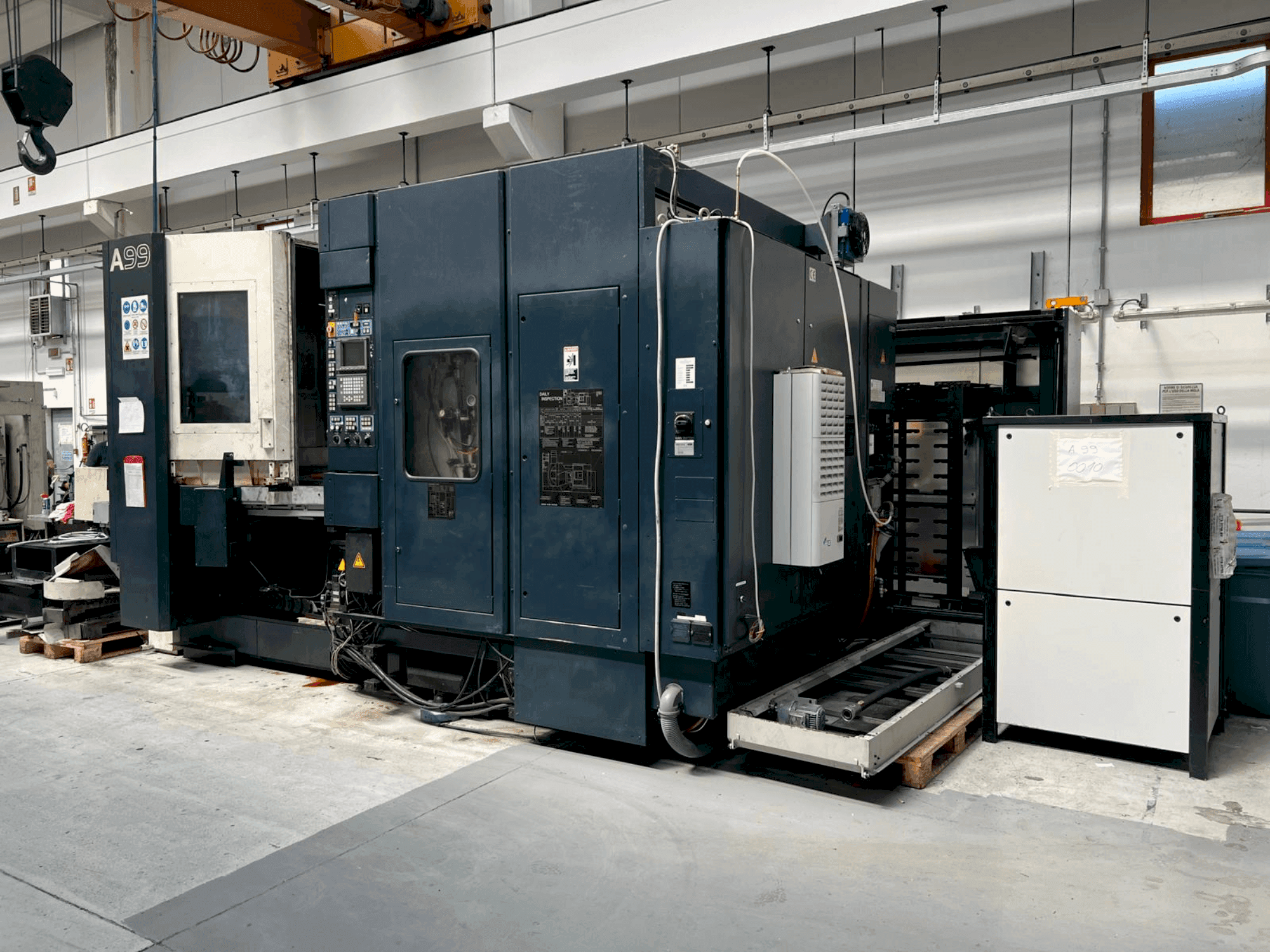

This 4-axis Makino A99-A132 horizontal machining centre was manufactured in 2000. It features a robust HSK 100 spindle, capable of 12,000 rpm and a maximum torque of 380 N/m. The machine offers extensive travels with 1000 mm on both X and Y axes, and 950 mm on the Z-axis. It supports a hefty 1800 kg on its 800x800 mm table. Ideal for complex, heavy-duty machining, the Makino A99-A132 machine we have for sale. Contact us for further details.

Overview

brand: Makino
year: 2000
MODEL: A99-A132
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Makino A99-A132

General Data

Measurements width: 6000 mm
Measurements depth: 4500 mm
Machine weight: 23000 kg

Control Unit

Model: 16 im pro
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 Rpm 1/MIN
Spindle motor power: 30 Kw
Tool taper: HSK 100
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 950 mm

Table

Outer length: 800 mm
Outer width: 800 mm
Table load: 1800 kg

Tools

Number of index: 245 positions

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Total machine enclosure ensuring safety and cleanliness
Tool breakage and measurement detection system enhancing precision and reducing downtime

Technical Machine Benefits

Rapid feed rate: 50,000 mm/min for x, y, and z axis
High maximum torque: 380 n/m
High tool magazine capacity: 245 positions
Positioning accuracy: +/- 0. 004 mm
Repeatability: +/- 0. 003 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
