Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
MAHO - MH 500NL-MIL-MAH-1990-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Maho MH 500 Milling Machine

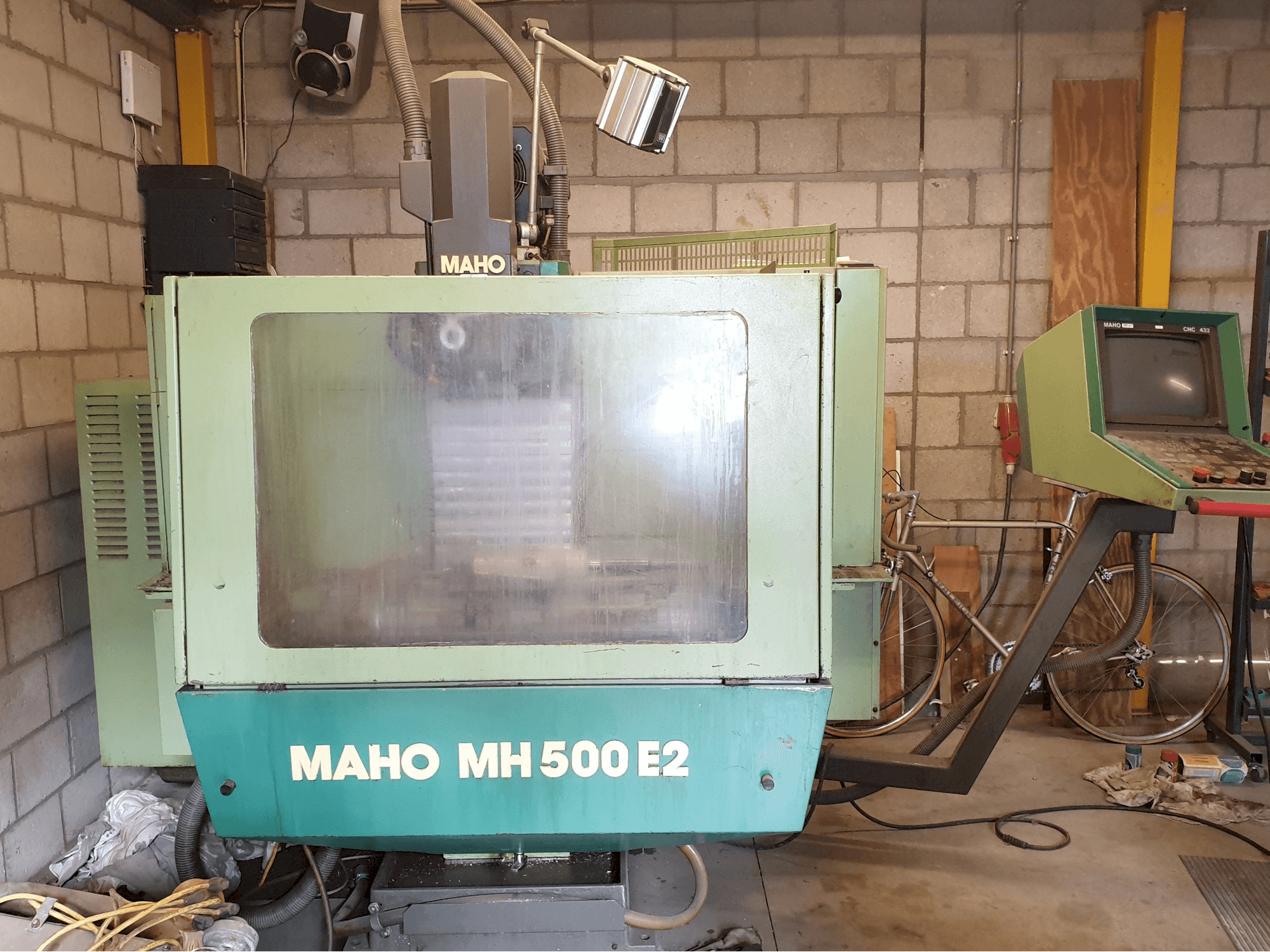

This Maho MH 500 Milling Machine was made in 1990 in Germany and counts a production record of 16218 hours. Operated through a Maho CNC 432 Control unit, this trustful machine has mainly worked with steel sheets up to 10mm of thickness during the past. It excels for its strong table, providing a wide angle work by its open doors. It presents very good conditions, as it was recently given engineer maintenance.
Overview
- brand: MAHO
- year: 1990
- MODEL: MH 500
- production hours: 16218
- application type: Milling
- Location: Netherlands
- machine type: Universal Machining Centre
Technical Information - MAHO MH 500
Dimensions
- Machine Depth: 1800 mm
- Machine Height: 1900 mm
- Machine Weight: 1700 kg
- Table Length: 800 mm
- Table Width: 360 mm
Movement
- X-axis Travel: 500 mm
- Y-axis Travel: 380 mm
- Z-axis Travel: 350 mm
Technical Specification
- Max. Tool Weight: 3 kg
- Number of Tools: 16
- Spindle Speed: 4000 RPM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
