MAHO MH 1600 W

Photo Gallery

Video gallery

SOLD

MAHO - MH 1600 W

1992

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

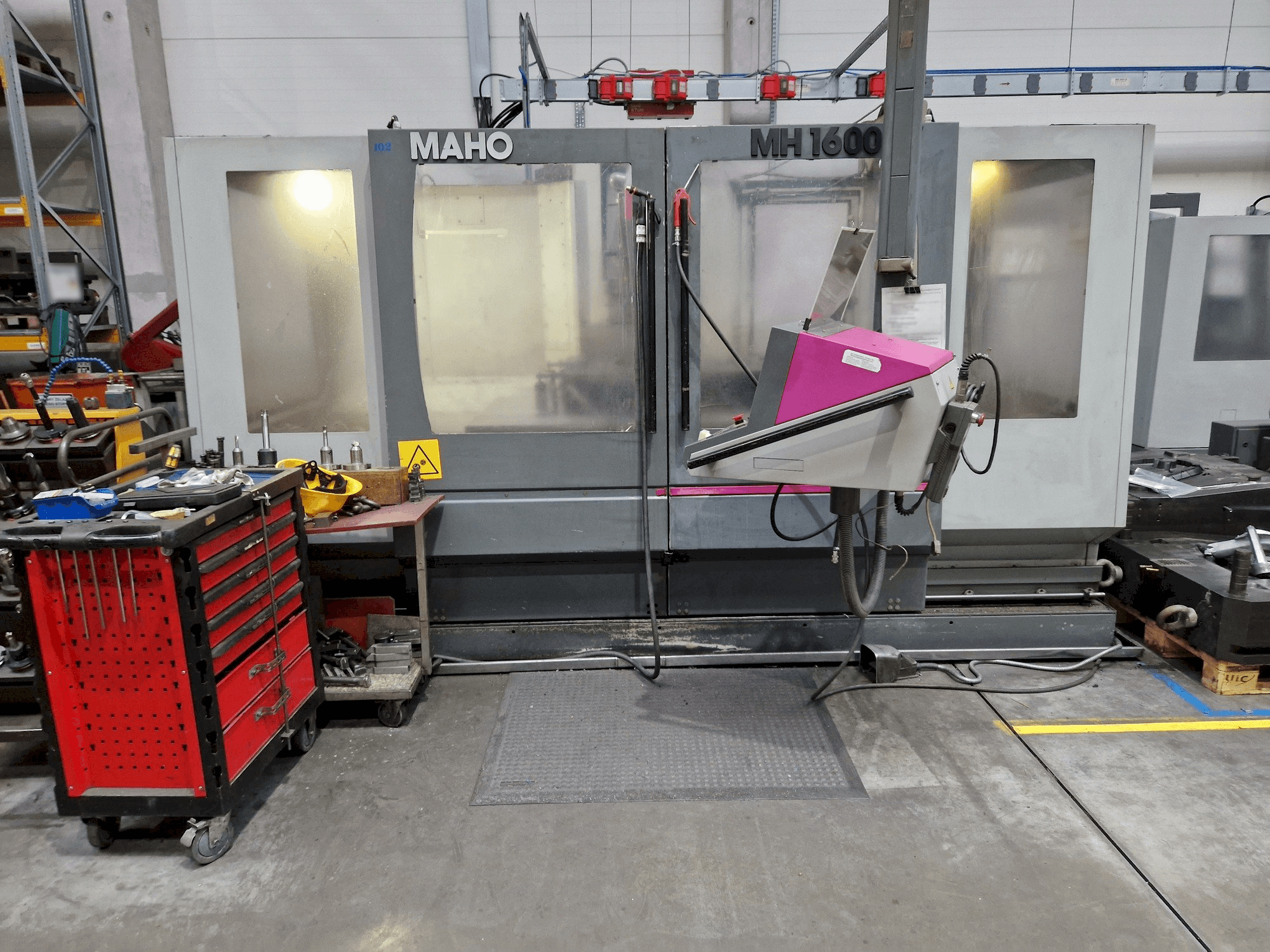

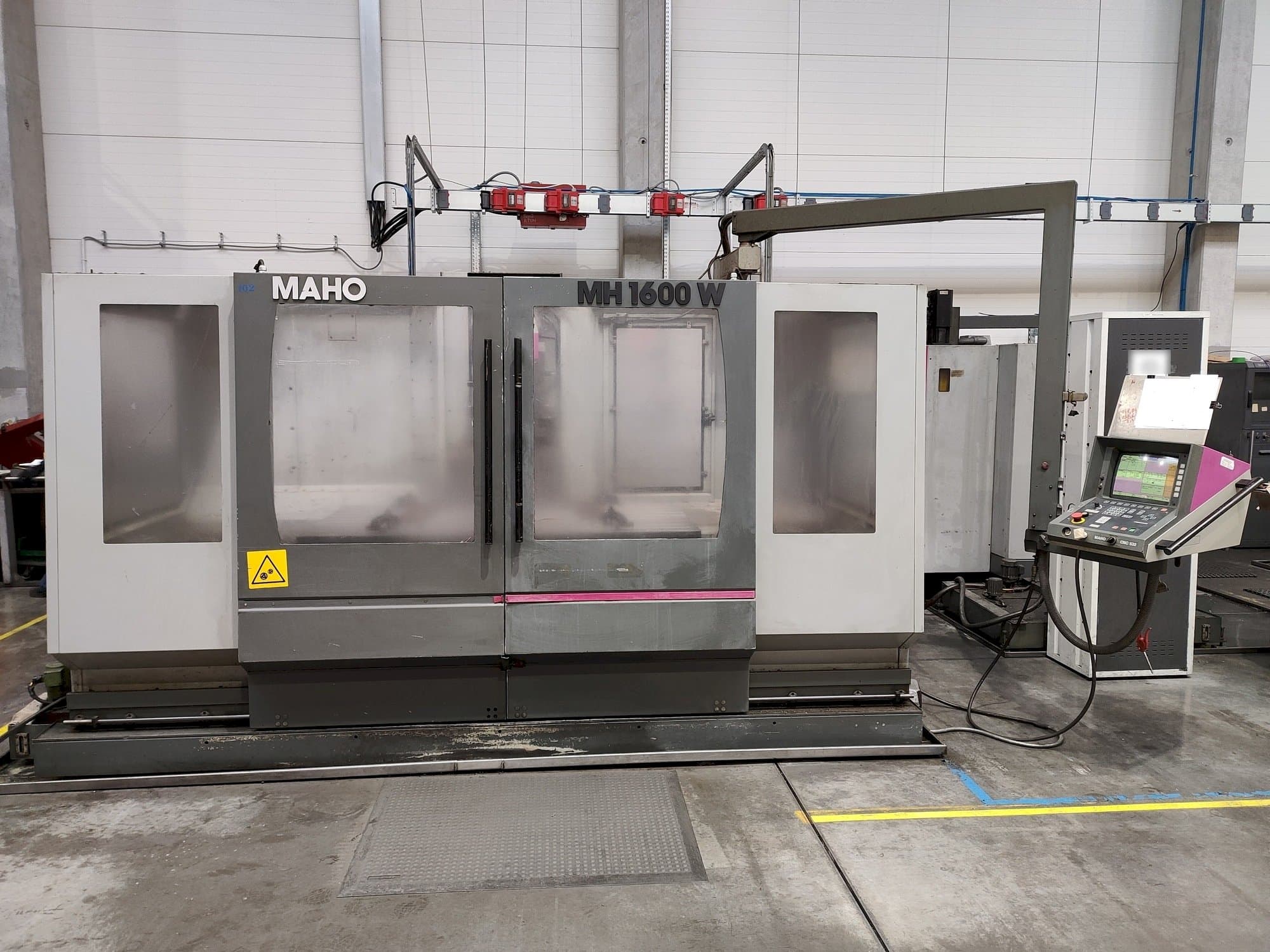

MAHO MH 1600 W Universal Machining Center

Show in original language

This MAHO MH 1600 W Universal Machining Center was manufactured in the year 1992 in Germany and has 84413 working hours. It is equipped with a MAHO CNC 532 control unit and has 3 axis. The machine has a spindle speed of 3000 rpm, is in very good condition and well maintained.

Overview

brand: MAHO
year: 1992
MODEL: MH 1600 W
production hours: 84413
application type: Milling
Location: Poland
machine type: Machining centers (universal)
availability: Sold
control unit brand: MAHO CNC 532
GINDUMAC ID: PL-MIL-MAH-1992-00003

Technical Information

General Data

Measurements width: 5000 mm
Measurements depth: 3700 mm
Measurements height: 2900 mm
Machine weight: 16000 kg

Control Unit

Brand: MAHO CNC 532
Model: 532

Main drive

Spindle speed range: 3000 rpm 1/MIN
Spindle motor power: 10 kW
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1800 mm
Outer width: 1000 mm

Media

Main electronic connection: 3 x 380V/ 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Head vertical, rotating, with hydraulic clamp
- - Spindle milling, horizontal, with hydraulic assembly
- - Tool changer: single tool
- - Standard installation requirements

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
