MAHO MH 1200W
MAHO - MH 1200W
1992
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MAHO MH 1200W Universal Machining center

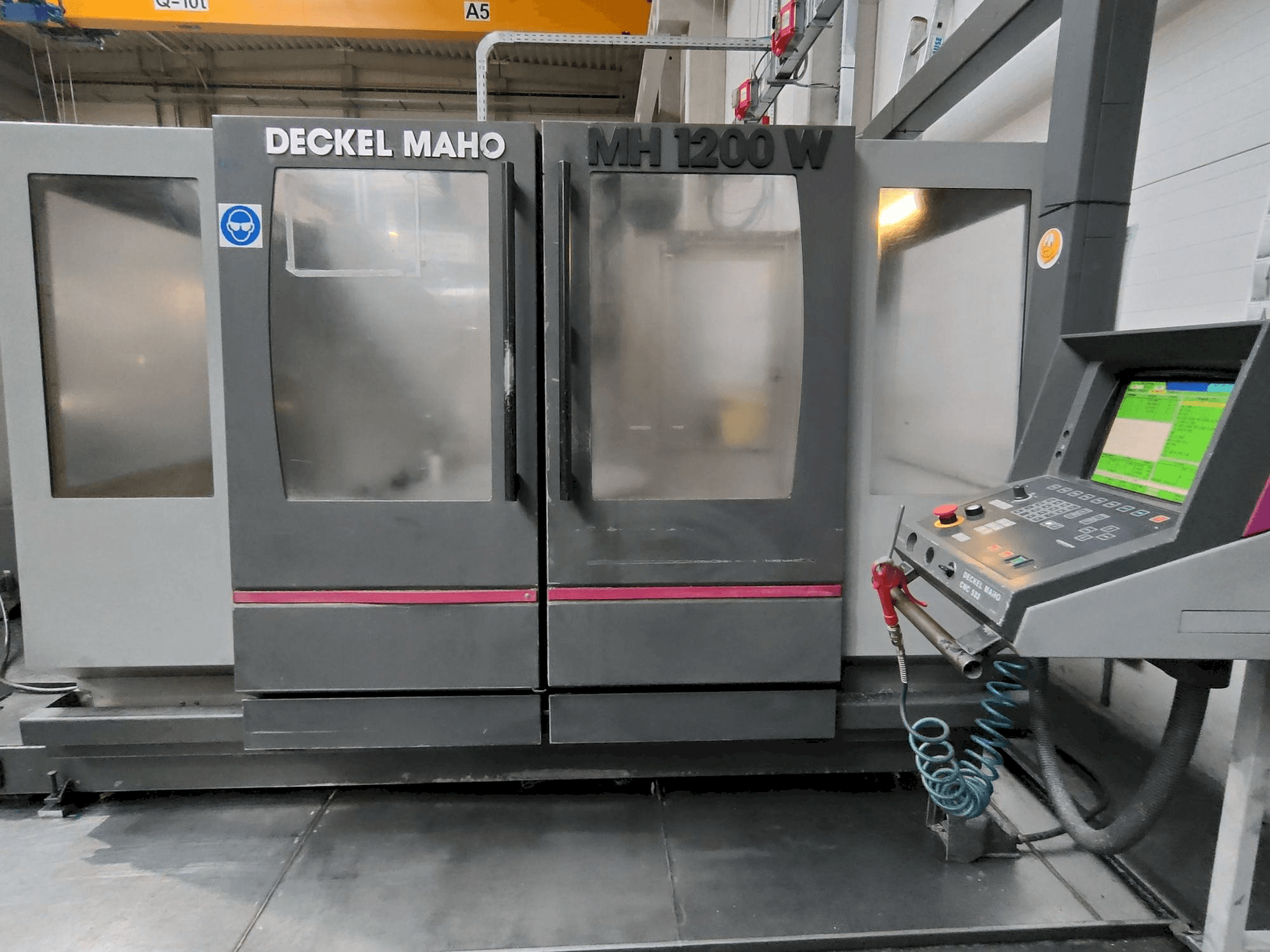

This MAHO MH 1200W Universal Machining center was manufactured in the year 1992 and has 86659 working hours. It is equipped with a DECKEL MAHO CNC 532 control unit and has 4 axis. The machine has a spindle speed of 4000 rpm, is in very good condition and well maintained.
Overview
- brand: MAHO
- year: 1992
- MODEL: MH 1200W
- production hours: 86659
- application type: Milling
- Location: Poland
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: DECKEL MAHO
- GINDUMAC ID: PL-MIL-MAH-1992-00001
Technical Information
General Data
- Measurements width: 2840 mm
- Measurements depth: 3560 mm
- Measurements height: 2645 mm
- Machine weight: 7000 kg
Control Unit
- Brand: DECKEL MAHO
- Model: CNC 532
Main drive
- Spindle speed range: 4000 rpm 1/MIN
- Spindle motor power: 7.5 kW
- Number of axis: 4
Movement
- X-AXIS Movement: 1200 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 600 mm
Table
- Outer length: 1000 mm
- Outer width: 800 mm
Media
- Main electronic connection: 3x 380V /50Hz
Additional Information
- Technical Machine Benefits:
- - Head vertical, rotating, with hydraulic clamp
- - Spindle milling, horizontal, with hydraulic assembly
- - Tool changer: single tool
- Qualitative Machine Benefits:
- - The machine is in very good working condition, ready for tests.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
