LVD - STRIPPIT S 1212GB-PUN-LVD-2011-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- LVD STRIPPIT S 1212 Punching Machine

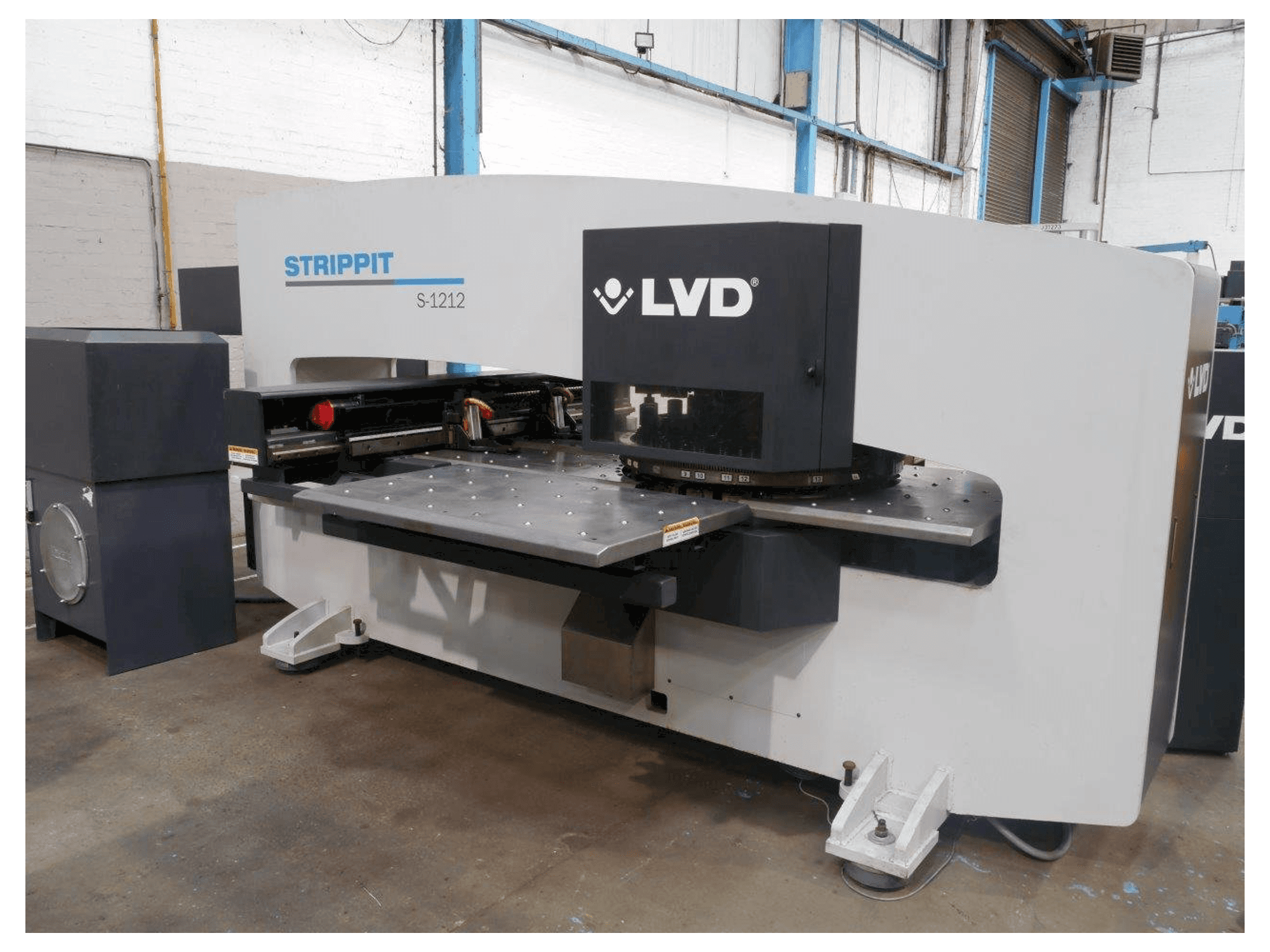

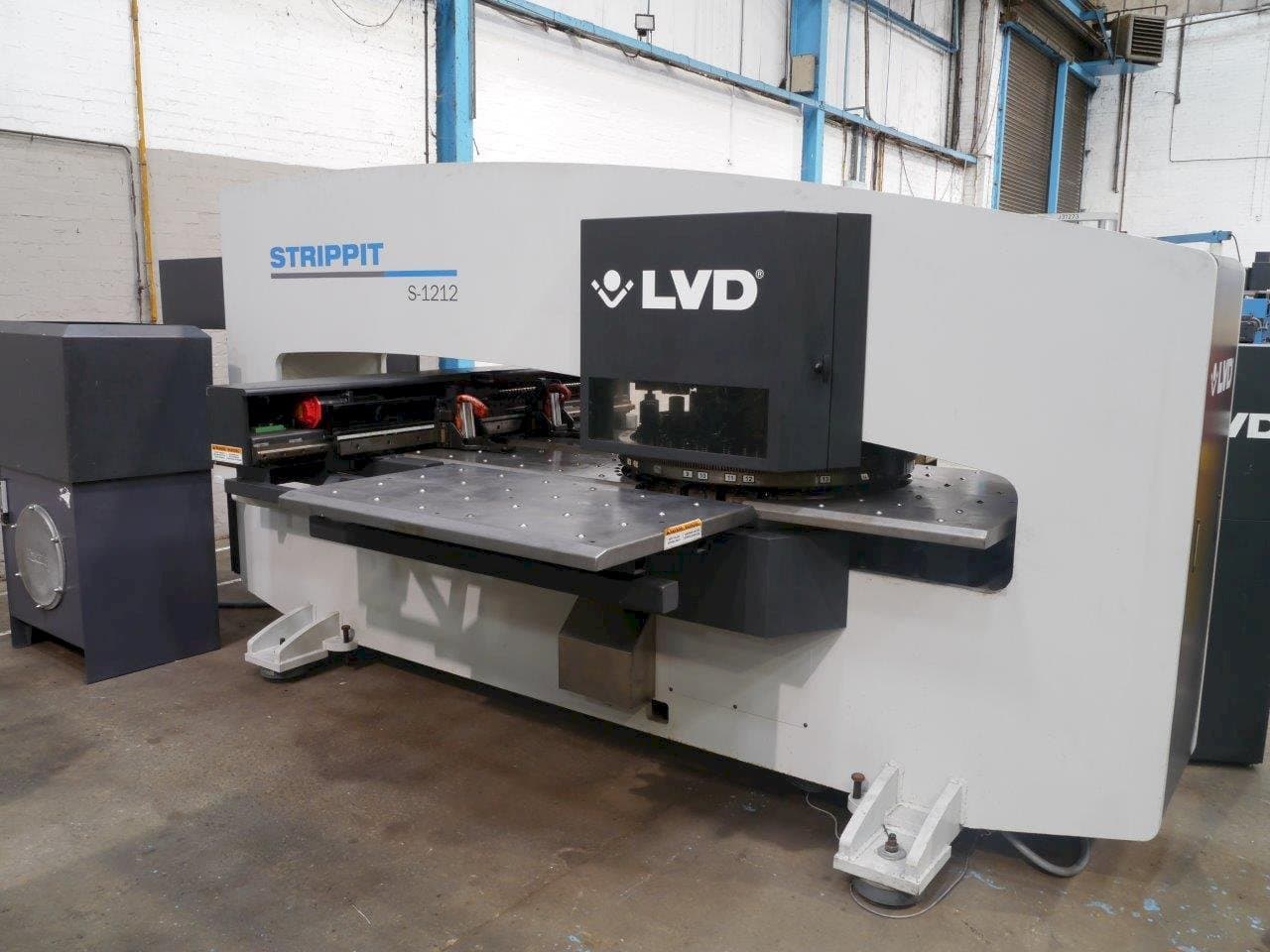

This LVD STRIPPIT S 1212 Punching Machine was manufactured in the year 2011 in the United States. The model is operated through a Fanuc Series 18i ‑ PB control unit. This machine can work with a punching force of 200 kN. It is supplied with quantity of tooling.
Overview
- brand: LVD
- year: 2011
- MODEL: STRIPPIT S 1212
- application type: Punching
- Location: United Kingdom
- machine type: CNC Punch Press
- availability: Sold
- control unit brand: FANUC
Technical Information - LVD STRIPPIT S 1212
General Data
- Measurements width: 4700 mm
- Measurements depth: 2600 mm
- Measurements height: 2250 mm
- Machine weight: 9120 kg
Control Unit
- Model: Series 18i ‑ PB
- Brand: FANUC
Main drive
- Punching force: 200 kN
Movement
- X-AXIS Movement: 1326 mm
- Y-AXIS Movement: 1337 mm
Table
- Outer length: 2590 mm
- Table load: 110 kg
Media
- Main electronic connection: 400/3/50hz
- Power consumption: 50kw
Additional equipment
- - Supplied with: Quantity of tooling
Additional Information
- Material thickness: 6. 35 mm
- Technical Machine Benefits:
- - Punching accuracy: 0,1mm + or ‑
- - Hole size: 88. 9mm at 2mm mild steel thickness, 30mm at 6mm mild steel thickness
- - Largest tool diameter: `d` (88. 9mm)
- - Feed clearance: 25mm
- - Turret configuration: 31 stations
- - Turret layout: 16 `a` (12,7mm) 10 `b` (31,7mm) 2 `c` (50. 8mm) 3 `d` (88,9mm) auto index stations
- - Sheet size: 1250mm x 1250mm
- - Hit rate @2mm working stroke: up to 900 hpm @ 1mm feed rate, up to 360 hpm @ 25mm feed rate
- - Fitted with: light guards
- Qualitative Machine Benefits:
- - Literature: manuals available in german
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
