LISSMAC - SBM-M 1500 B2DE-OTH-LIS-2014-00001

Name: LISSMAC SBM-M 1500 B2
Brand: LISSMAC
SKU: DE-OTH-LIS-2014-00001
Price: 1561350 INR
Availability: InStock

Rs. 1,561,350

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used LISSMAC SBM-M 1500 B2 For Sale | gindumac.com

Show in original language

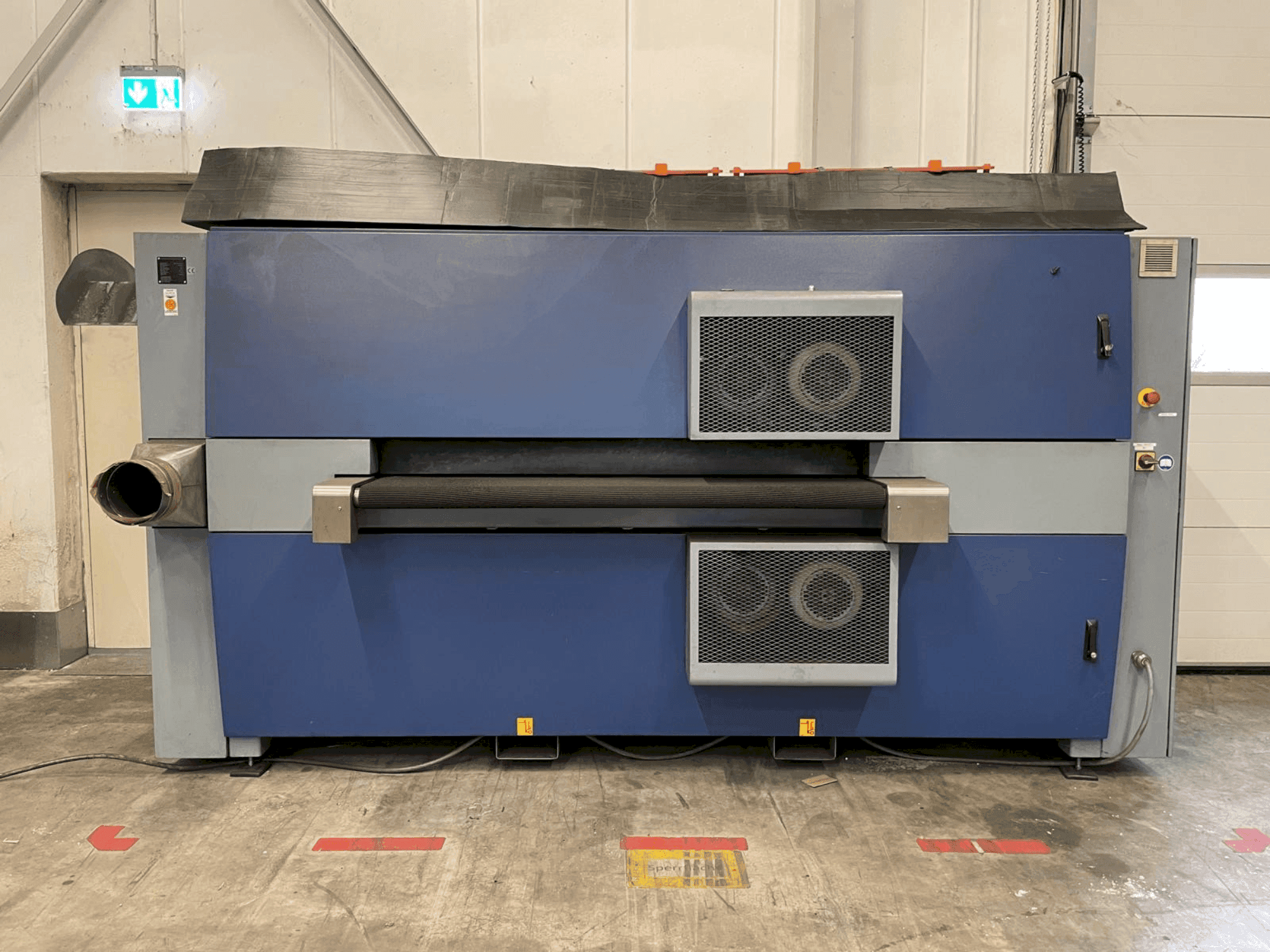

This LISSMAC SBM-M 1500 B2 deburring machine was manufactured in 2014. Ideal for efficient deburring applications, it ensures consistent quality and performance. Consider the opportunity to buy this LISSMAC SBM-M 1500 B2 deburring machine. Contact us for more information.

Overview

brand: LISSMAC
year: 2014
MODEL: SBM-M 1500 B2
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Deburring Machine

Technical Information - LISSMAC SBM-M 1500 B2

General Data

Measurements width: 1400 MM
Measurements depth: 3100 MM
Measurements height: 1800 MM
Machine weight: 2300 KG

Main drive

Spindle speed range: 1415 1/MIN
Maximum sheet thickness: 20 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Feed motor current consumption: 0. 7 a
Sound power level: 79. 5 db (a)
Protection rating: ip 42
Sheet thickness adjustment: electric

Technical Machine Benefits

Voltage: 400 v/50 hz, 440-480 v/60 hz
Total rated power: 19. 6 kw, usa 26 kw
Total rated current: 45 a, usa 37 a
Feed rate: continuously variable 0-4 m/min
Medium adjustment: electric
Medium: brush block
Material feeding: automatic
Passage width: 1500 mm
Brush motor drive power: 4x 4. 8 kw, usa 4x 6. 4 kw
Brush motor current consumption: 4x 10 a, usa 4x 9. 2 a

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
