KLAASSEN RZE12

Photo Gallery

Rs. 16,286,062

gindumac price

(Ex works)

Get an official quote

KLAASSEN - RZE12DE-MIL-KLA-2023-00001

Name: KLAASSEN RZE12
Brand: KLAASSEN
SKU: DE-MIL-KLA-2023-00001
Price: 16286062 INR
Availability: InStock

Rs. 16,286,062

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used KLAASSEN RZE 12 Robotic Deburring Cell For Sale | gindumac.com

Show in original language

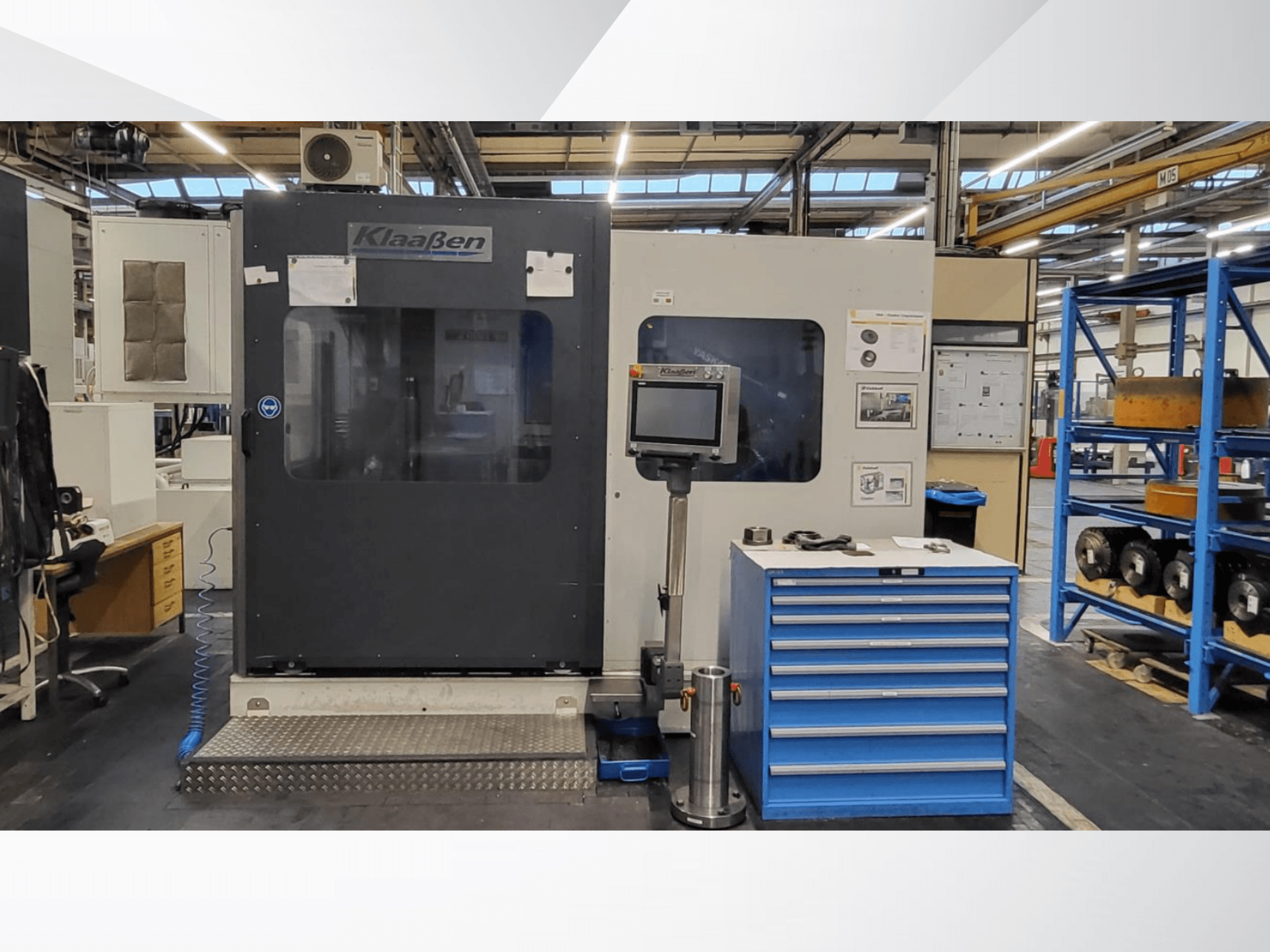

This Klaaßen RZE 12 robotic deburring cell was manufactured in 2023. It features a 6-axis Yaskawa GP-Series industrial robot powered by a Yaskawa YRC1000 controller. Designed for precision finishing on steel components, this cell accommodates workpieces up to 1,200 mm in diameter, 1,200 mm in height, and up to 3,000 kg in weight. If you are looking to add high-quality deburring capabilities to your shop, consider this Klaaßen RZE 12 cell we have for sale. Contact us for further details.

Overview

brand: KLAASSEN
year: 2023
MODEL: RZE12
production hours: 1500
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Deburring Machine
control unit brand: SIEMENS

Technical Information - KLAASSEN RZE12

Control Unit

Control Brand: SIEMENS
Control Model: SIMATIC

Movement

Number of Axes: 6

Additional Information

- Control System: Yaskawa YRC1000

- HMI Interface: Siemens SIMATIC HMI touchscreen panel

- Max. Workpiece Diameter: 1,200 mm

- Max. Workpiece Height: 1,200 mm

- Max. Workpiece Weight: 3,000 kg

- Spindle Speed: 35,000 rpm

- Power: 2,400 W

- Typical Workpiece Materials: Case-hardened steel

- Typical Workpiece Components: Gears

- Deburrable Gearing Types: External gears, Claw gears, Driver/spline gears

- Production Environment: Single parts and small series

- Operating Shift Model: 1 shift

- Machine Weight: approx. 5.8 t

- Connected Load: max. 9.9 kVA

- Nominal Voltage: 3/N/PE, 400V, 50Hz (TN-C-S)

- Control Voltage: 24VDC

- Max Current: 25A

- Machine Protection / Fuse: Slow-blow NH32 or D32 without RCD (FI)

- Workholding / Chucks Included: 3-jaw chuck with long jaws, 3-jaw chuck with short jaws

- Additional Equipment: Diebold MS 3.0 tool device / shrink unit / pre-setter

- Auxiliary / Cooling Equipment: Enclosure-mounted cabinet AC unit and external chiller unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
