LAGUN L2000

Photo Gallery

LAGUN - L2000FR-MIL-LAG-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used LAGUN L2000 For Sale | gindumac.com

Show in original language

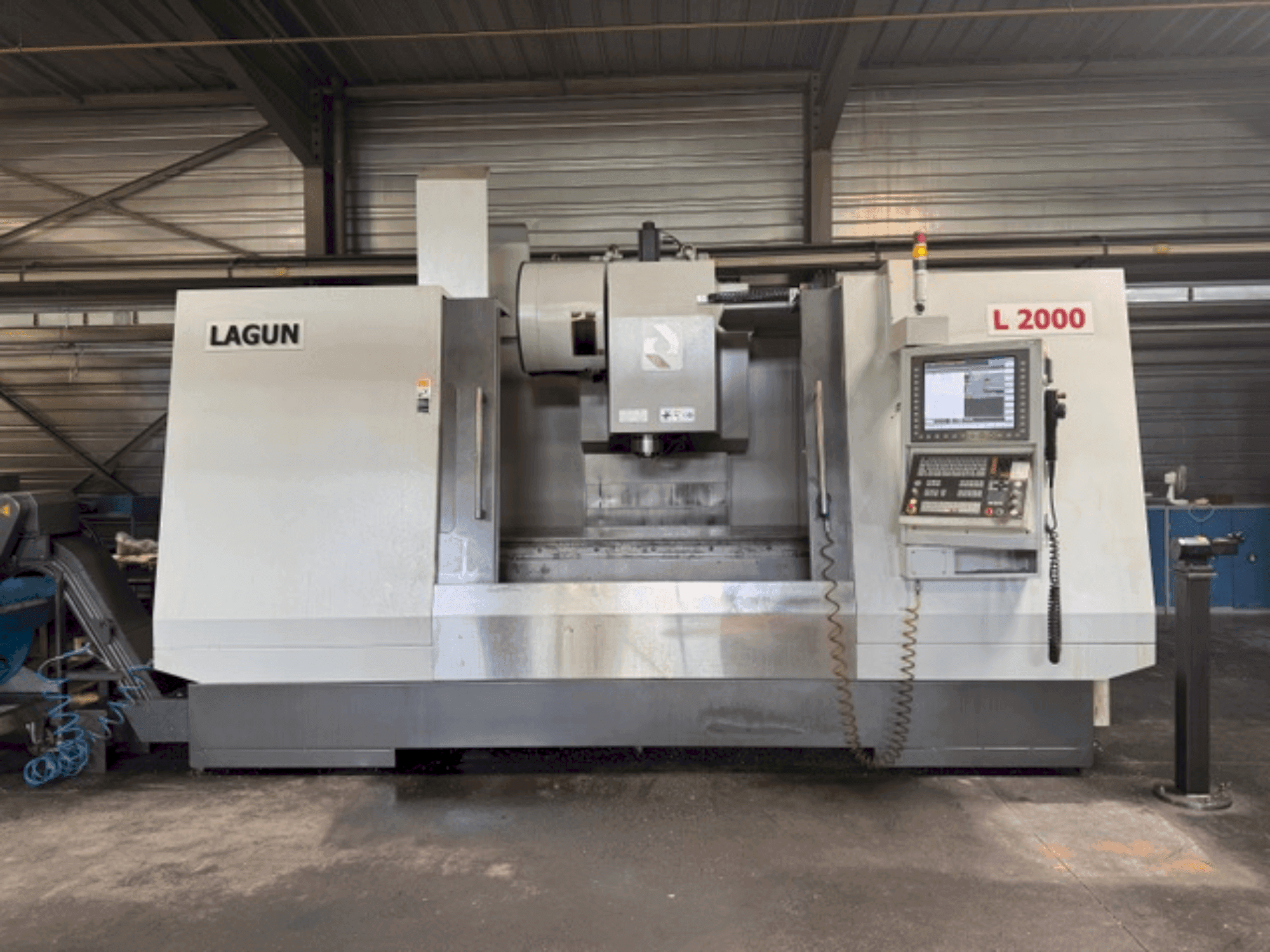

This 4-axis LAGUN L2000 vertical machining centre was manufactured in 2015. It features a table size of 2100 x 800 mm, capable of handling weights up to 2000 kg. Equipped with a high-speed spindle up to 8000 rpm and a 24-station automatic tool changer, it ensures efficient machining. The CNC HEIDENHAIN ITNC 530 enhances operational precision. Reach out for further details regarding this machine.

Overview

brand: LAGUN
year: 2015
MODEL: L2000
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - LAGUN L2000

General Data

Measurements width: 3190 mm
Measurements depth: 4800 mm
Machine weight: 19000 kg

Control Unit

Brand: HEIDENHAIN
Model: na

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 20/30 kW
Tool taper: MAS-403-BT40
Number of axis: 4

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 820 mm
Z-AXIS Movement: 820 mm

Tools

Number of stations: 24
Type of tool holder: HSK63

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Air-conditioned Electrical Cabinet
Lamp Status: 3 colors
Full Documentation

Machine Benefits

Technical Machine Benefits

Spindle cooler: yes
Center spindle coolant: high pressure
C axis: 360000°
Distance spindle/table: 200-1020 mm
Table dimensions: 2100 x 800 mm
Admissible weight on table: 2000 kg

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
