KUNZMANN BA600

Photo Gallery

KUNZMANN - BA600DE-MIL-KUN-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

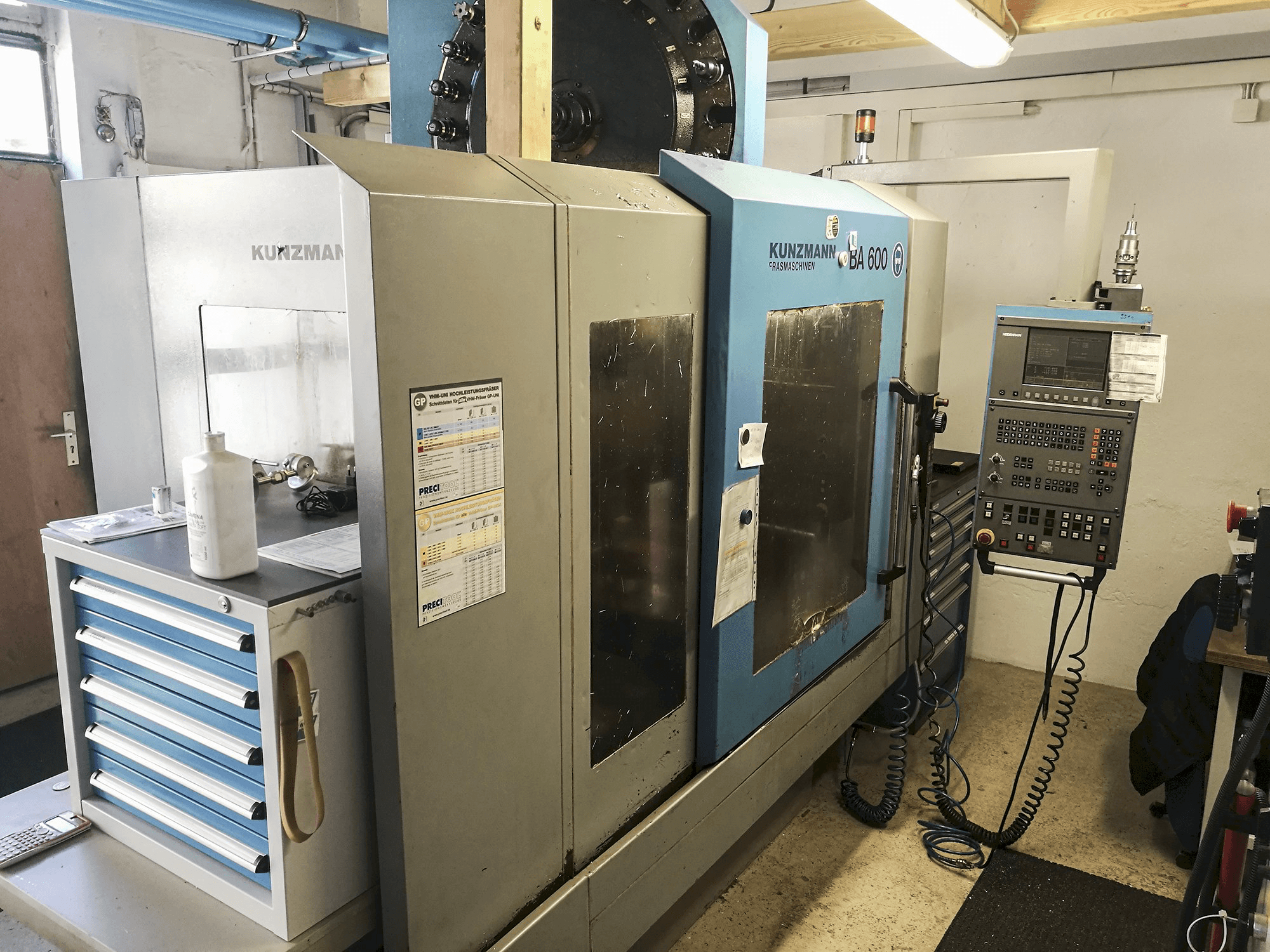

KUNZMANN BA600 Vertical Machining Center

Show in original language

This KUNZMANN BA600 Vertical Machining Center from 1999 was fabricated in Germany and is operated through a HEIDENHAIN Control unit. During the past, this machine has mainly worked with steel.

Overview

brand: KUNZMANN
year: 1999
MODEL: BA600
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN BA600

General Data

Measurements width: 2500 mm
Measurements depth: 1600 mm
Measurements height: 2800 mm
Machine weight: 3200 kg

Control Unit

CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 50-9000 1/min

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 750 mm
Outer width: 450 mm

Tools

Max weight: 4 kg
Max tool diameter: 130 mm
Max tool length: 225 mm

Media

Main electronic connection: 400 V
Power consumption: 18 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
