Nameplate of KUKA KR16-2  machine

KUKA - KR16-2HU-ROB-KUK-2017-00001

Rs. 1,717,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

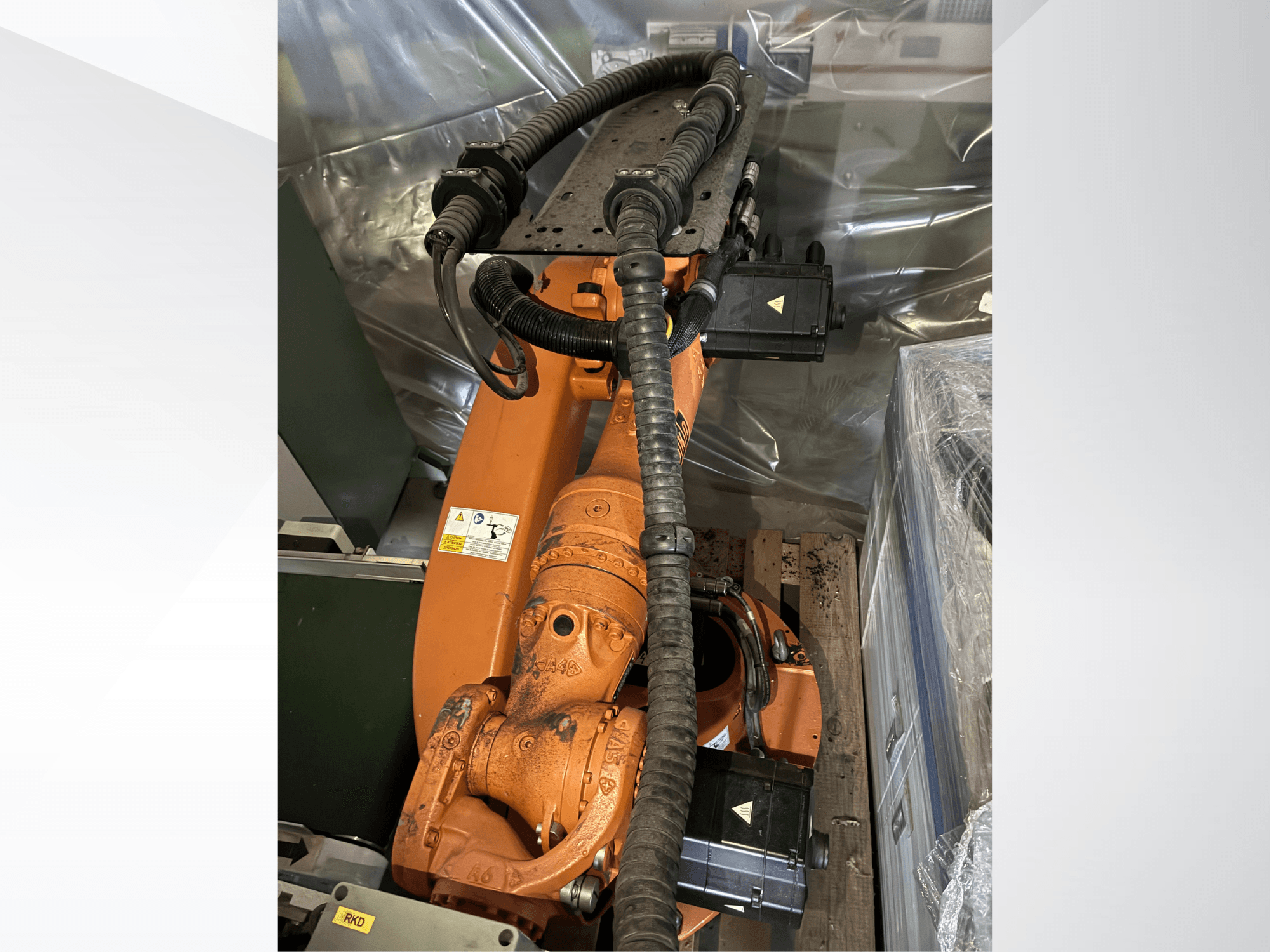

This 6-axis KUKA KR16-2 robot arm was manufactured in 2017. It features a payload capacity of 16 kg and a maximum reach of 1650 mm. Versatile mounting options include floor, inverted, or angled setups. Ideal for material handling, assembly, welding, and more. Weighs approximately 280 kg. Compatible with KUKA KR C2 or KR C3 series controllers. Contact us for more information about this machine.

Overview

  • brand: KUKA
  • year: 2017
  • MODEL: KR16-2
  • application type: Robotics
  • Location: Hungary
  • machine type: Robot Arm
  • availability: Immediately

Technical Information - KUKA KR16-2

General Data

  • Machine weight: 280 kg

Main drive

  • Number of axis: 6
  • Max payload: 16 kg

    Additional equipment

    • - Drive System: Servo motors with harmonic drive gearing

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Application areas: material handling, assembly, welding, machine tending, pick and place
        • - Safety features: integrated safety functions according to industrial standards
        • - Reach: 1650 mm
        • - Repeatability: ±0. 03 mm
        • - Mounting options: floor, inverted, or angled mounting possible
        • - Power supply: typically 400 v, 50/60 hz
        • - Controller compatibility: compatible with kr c2 or kr c3 series

      Extra information

      • - Movement Motion Range per Axis: Axis 1 (Base rotation): ±170° Axis 2 (Shoulder): +85° to -125° Axis 3 (Elbow): +156° to -102° Axis 4 (Wrist 1): ±185° Axis 5 (Wrist 2): ±120° Axis 6 (Wrist 3): ±350°

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
