KUKA KR16-2 with KR C4 Controller

Photo Gallery

SOLD

KUKA - KR16-2 with KR C4 Controller

2014

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
KUKA KR16-2 with KR C4 Controller Robot

Show in original language

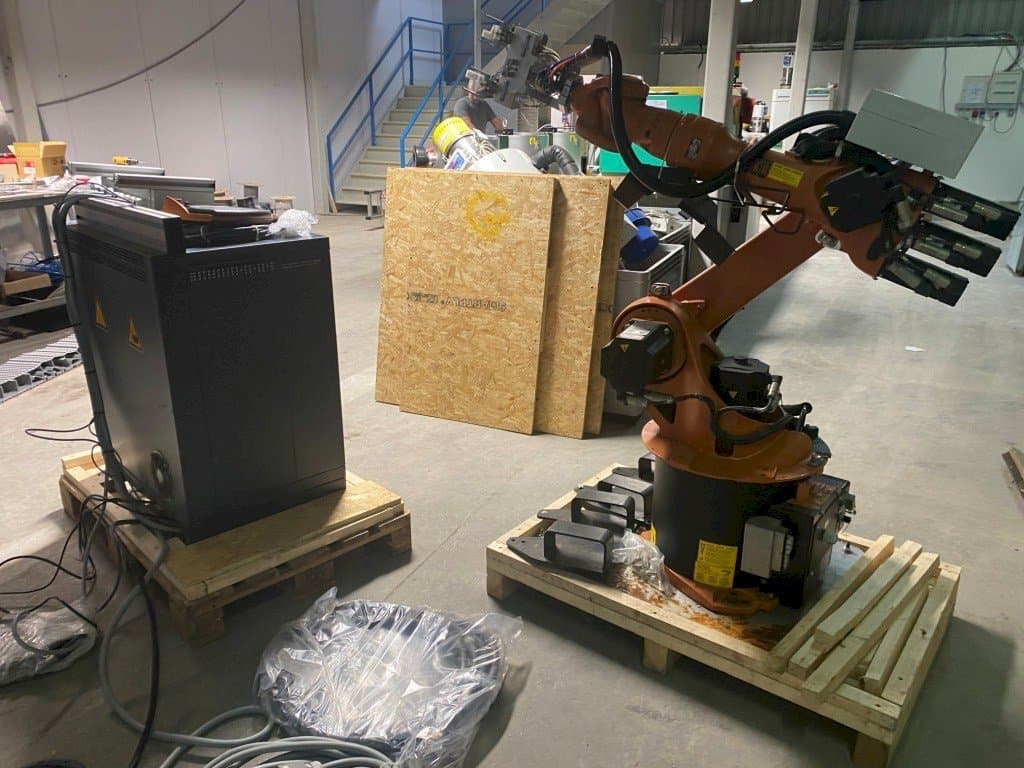

This KUKA KR16-2 with KR C4 Controller Robot was built in 2014. This 6 axis robot is operated with a Kuka KR C4 control unit, and a payload of max 46 kg.

Overview

brand: KUKA
year: 2014
MODEL: KR16-2 with KR C4 Controller
application type: Robotics
Location: Ireland
machine type: Robot
availability: Sold
control unit brand: Kuka
GINDUMAC ID: IE-ROB-KUK-2014-00001

Technical Information

General Data

Measurements width: 500 mm
Measurements depth: 500 mm
Measurements height: 2026 mm
Machine weight: 235 kg

Control Unit

Brand: Kuka
Model: KR C4
CNC main language: English

Main drive

Number of axis: 6
Range payload: 16 kg
Max payload: 46 kg
Max reach: 1611 mm

Movement

X-AXIS Movement: *+/- 185 MM
Y-AXIS Movement: *+35/-155 MM
Z-AXIS Movement: *+154/-130 MM
V-Axis Movement: *+/-350 MM
Others Movement: *+/-130
U-Axis Movement: *+/- 350 MM

Media

Main electronic connection: 400 V
Power consumption: 7,3 kVA

Additional equipment

- Pneumatic Gripper
- Control Pendant
- Cables

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Robot rarely used
- - Very good condition
- - Well maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
