KUKA KR 16 L6 ARC-C

Photo Gallery

KUKA - KR 16 L6 ARC-CPL-ROB-KUK-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
Welding system KUKA KR16 ARC

Show in original language

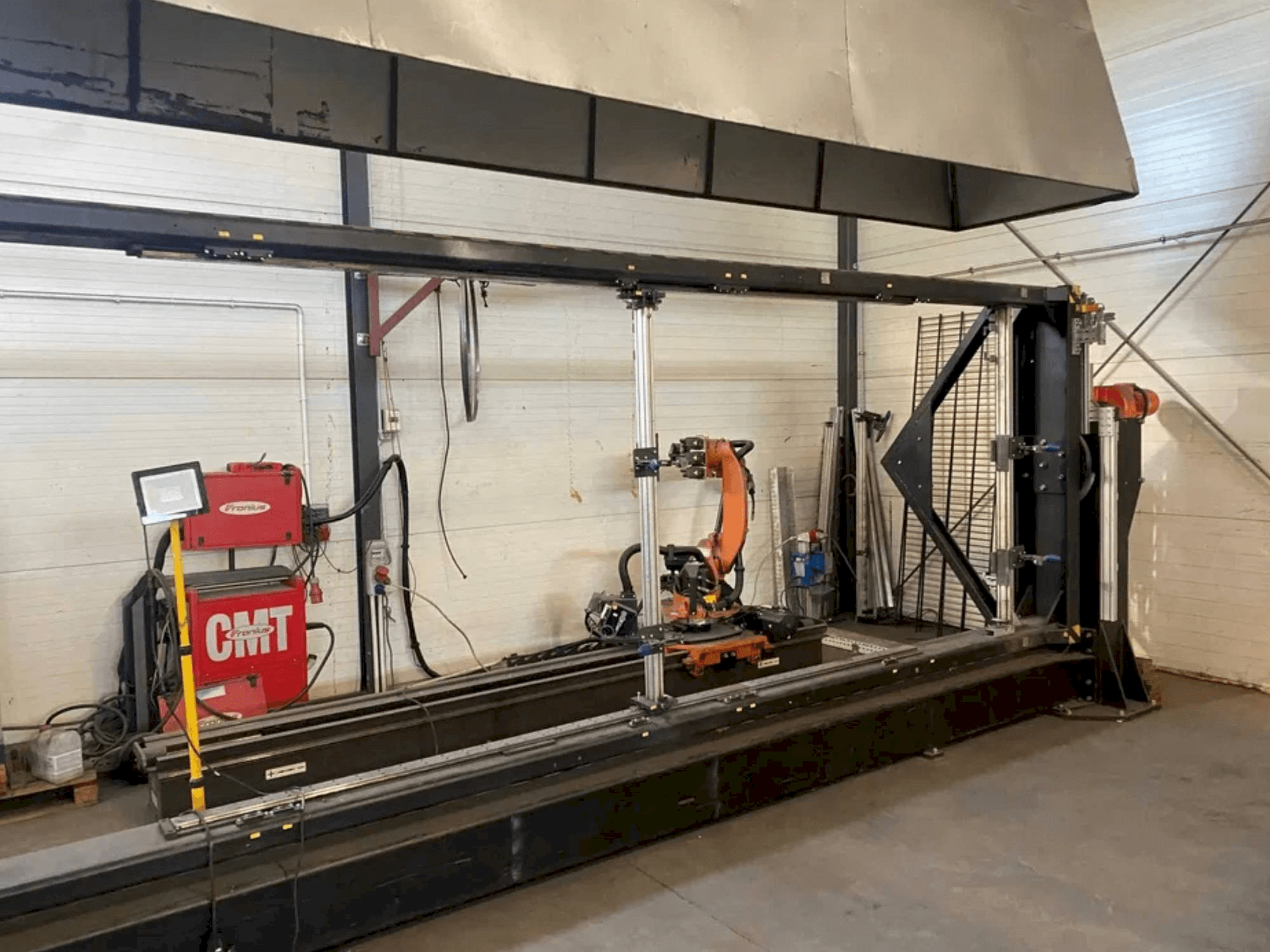

This Welding system KUKA KR16 ARC was manufactured in the year 2009 in Germany. The system includes a Robot KUKA KR 16 L6 ARC-C, with 50 hours and a max load of 6 kg, and a welding station Fronius TransPuls Synergic 4000 CMT R, with a pulse welding up to 400 A a process of MIG/MAG, and a base metals: Aluminium, CrNi, Special metals, Steel.

Overview

brand: KUKA
year: 2009
MODEL: KR 16 L6 ARC-C
production hours: 50
application type: Robotics
Location: Poland
machine type: Robot Arm

Technical Information - KUKA KR 16 L6 ARC-C

Dimensions

Machine Depth: 2000 mm
Machine Height: 2407 mm
Machine Weight: 4940 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Rotary table weight: 960kg
4 lifting shackles, each with lifting capacity: 3250 kg
The first installation and start up in 2017
The system is designed for welding sliding gates, fence spans but possible other applications. Full documentation available, ready for presentation

Technical Machine Benefits

The system includes:
1- robot: kuka kr 16 l6 arc-c yom: 03/2009 working hours: 50h max load: 6 kg
2- welding station: fronius transpuls synergic 4000 cmt r pulse welding up to 400 a process: mig/mag base metals: aluminium, crni, special metals, steel
System parameters:
Base width: 960mm
Axis position relative to the ground: 1407mm
Axle position relative to link 300: 1082mm
Spacing between discs: 6350mm
Load capacity on rotary table: 1040kg
Total load capacity: 2000kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
