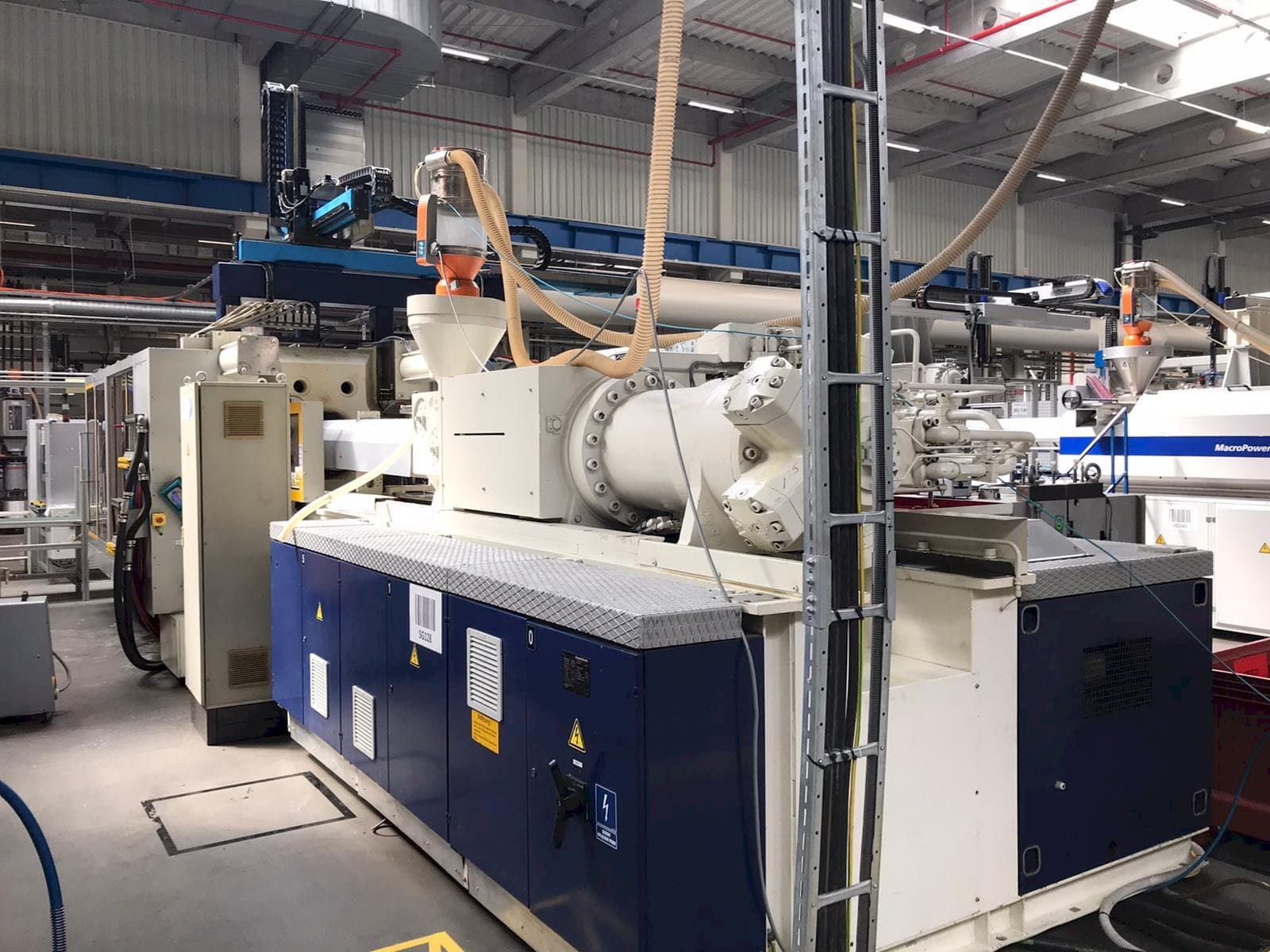

Front view of Krauss Maffei 800-8000 MC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 800-8000 MC

Photo Gallery

Krauss Maffei - 800-8000 MCPL-INJ-KRA-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Krauss Maffei 800-8000 MC Moulding Machine - Pre-Owned

Show in original language

This Krauss Maffei 800-8000 MC Injection Moulding Machine was built in the year 1999 in Germany. It is equipped with a control unit of the same brand. This machine is capable of working with a clamping force of 8000 kN, and a screw diameter 130 mm. This machine is in very good working condition.

Overview

brand: Krauss Maffei
year: 1999
MODEL: 800-8000 MC
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 800-8000 MC

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 130 mm
Shot weight: 4395 g
Stroke volume: 4830 CM³
Injection pressure: 1656 bar

Clamping unit

Clamping force: 8000 kN
Max open daylight: 2000 mm
Distance between bars: 1120x1000 mm
Mould height min: 600 mm
Mould height max: 1100 mm
Size of mold platens: 1600/1530 mm
Ejector stroke: 250 mm

Media

Main electronic connection: 400 V -50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Injection rate: 955 cm3
- - L/d radio: 20
- - Max. Mold weight: 12000 kg
Qualitative Machine Benefits:
- - Machine in very good, working condition, ready for tests.
- - Machine is serviced regularly
- - Full documentation available

Extra information

- Robot is not included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
