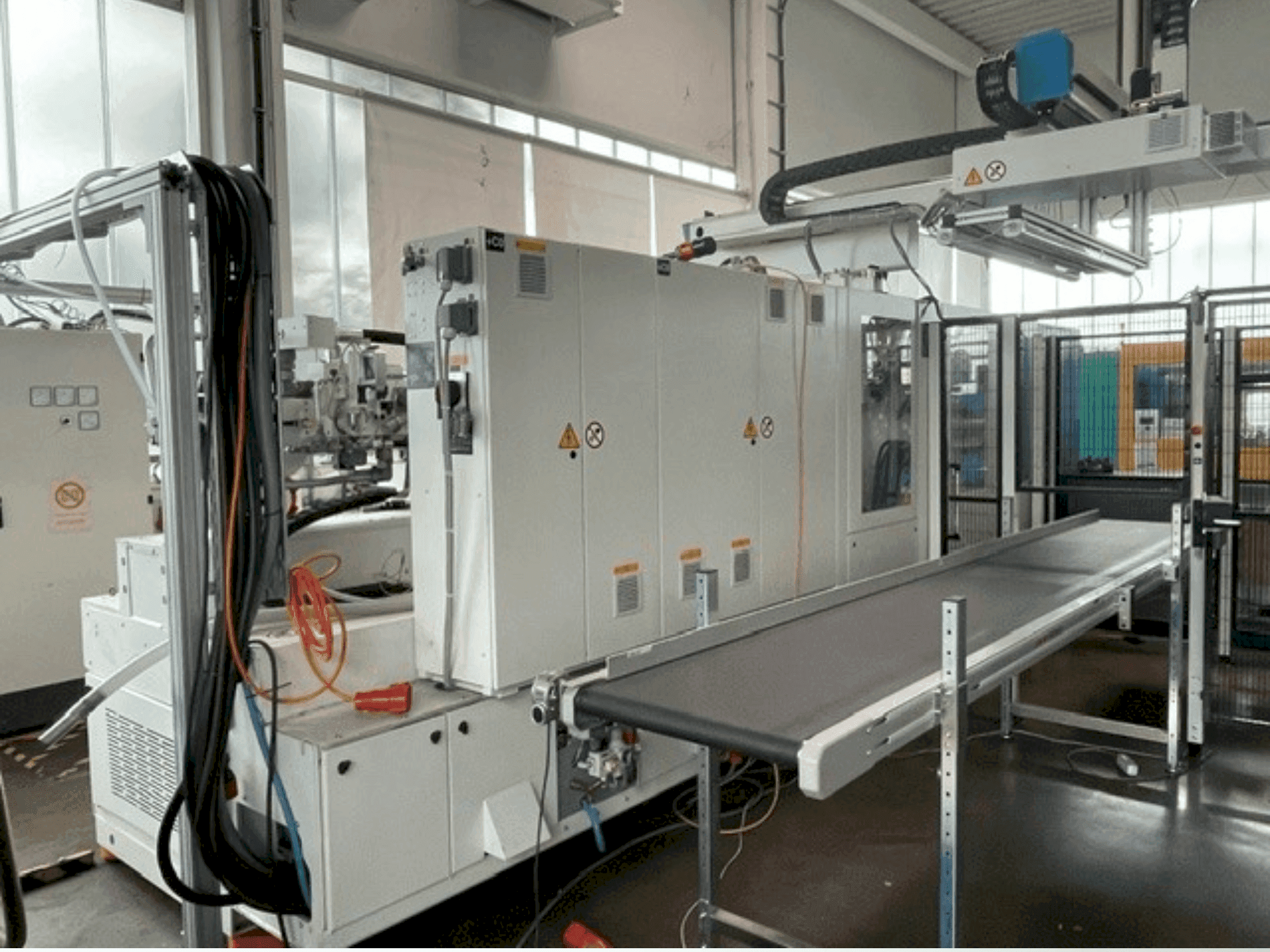

Krauss Maffei - 300-1400 CX MC6DE-OTH-KRA-2020-00001

Additional equipment

• Weight: 19,300 kg

• Oscillating Mounts for Machine Mounting

• Support for Clamping Unit on Foundation (for high weight loads, e.g., large tools or turning devices)

Clamping & Injection Unit

• Chrome-Plated Tie Bars

• Clamping Unit and Injection Unit with Internal Oil Filtration in the Bypass Flow

• Manual Ejector Coupling System:

  • Machine-side and tool-side coupling elements

  • 3 thread adapters for customer-supplied ejector pins

  • Hook wrench

  • Compensates for minimal axis offset between machine and mold ejector

  • “Rear” end position of ejector and mold ejector plate monitored in series

Mold Platen Widening

• KM 65 / 80 CX: 50 mm

• KM 110 / 130 CX: 60 mm

• KM 160 CX: (not specified)

• KM 200 CX: 70 mm

• KM 250 / 300 CX: 80 mm

• KM 350 CX: 90 mm

• KM 420 CX: 100 mm

• Note: Position affects mechanical interface according to EUROMAP 18 for handling device on FWAP (with intermediate plate up to KM 420 CX)

Hydraulic & Pneumatic Systems

• Hydraulic Screw Anti-Rotation Lock

• Hydraulic Screw Drive with Standard Speed

• Pneumatic and Hydraulic Cascade Valves for Hot (Cold) Channel Needle Valve:

  • Hydraulic: 2 × 4/3-Way Valves with 2 Solenoid Coils, connection fitting size 12 S (24° cone DIN EN ISO 8434-1)

  • Pneumatic: 2 × 5/2-Way Valves with 2 Solenoid Coils, connection via hose connector to FWAP BGS

  • Cascade control selectable on screen for pneumatic or hydraulic operation

Compressed Air Service Unit

• Service Unit Combination for Compressed Air Preparation:

  • Manual shut-off valve with pressure relief

  • Manual pressure adjustment valve with gauge and air filter

  • Pressure switch for electrical monitoring

  • Electric shut-off valve with pressure relief

Nozzle & Ejector Chamber Control

• Nozzle and Ejector Chamber Control and Monitoring Systems:

  • Control for opening/closing tool nozzles based on distance or time

  • Tool nozzles can open/close twice during injection and holding pressure

  • Time-delayed closure after holding pressure

  • Monitoring of at least one open tool nozzle

  • Manual operation in setup mode

  • Nozzle guard can be opened opposite operator

  • Ejector chamber protective door can be opened on operator side
