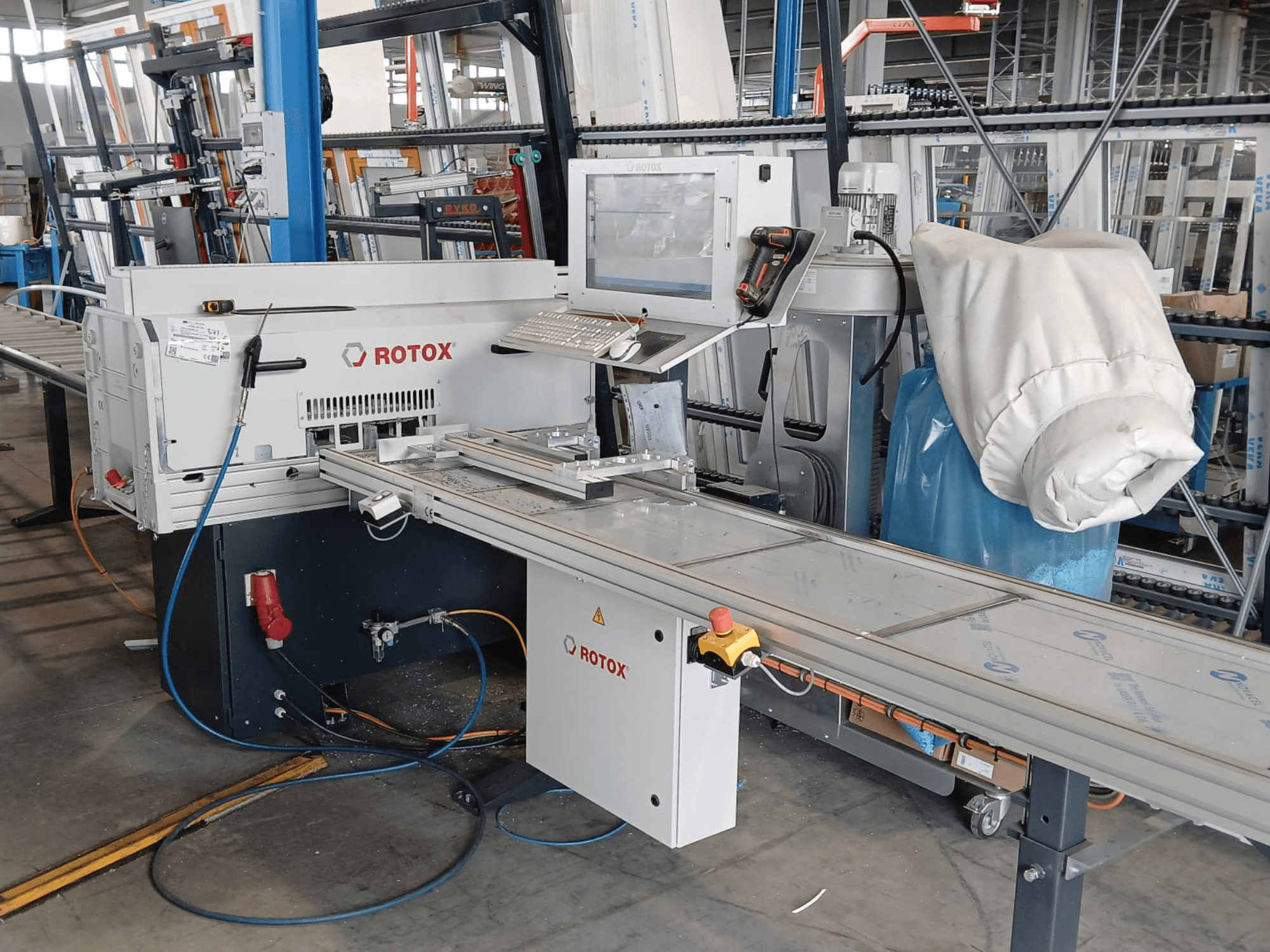

Glazing bead saw manufactured in 2024. This ROTOX GLA 401 features simultaneous cutting of 4 glazing beads at 45° and milling of fixing holes. It includes pneumatic material clamping and an electric locking machine cover for enhanced safety. The machine accommodates PVC profiles with a maximum section of 375 × 45 mm and offers a cutting length of up to 260 mm with a length stop. If you are looking to get high-quality cutting capabilities, consider the ROTOX GLA 401 machine we have for sale. Contact us for further details.

Overview

  • brand: Rotox
  • year: 2024
  • MODEL: GLA401
  • application type: Other Plastic Processing Machinery
  • Location: Italy
  • machine type: Plastic Processing Machine

Additional Information

  • Function: Simultaneous cutting of 4 glazing beads (45°) and milling of fixing holes

  • Pneumatic material clamping: Yes

  • Pneumatic pressure: 2 bar

  • Pneumatic pressure gauge with filter: Yes

  • Electric locking of machine cover: Yes

  • Clamping plates: Tool-free

  • PVC profile section capacity: Min 50 × 50 mm; Max 375 × 45 mm

  • Cutting length: 200 mm (without length stop); 260 mm (with length stop)

  • Electrical connection: 400 V / 50 Hz

  • Installed power: 1.1 kW

  • Profile list: Available

  • Operating instructions: English

  • Machine inscription: Italian

  • Attachment side: Right

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
