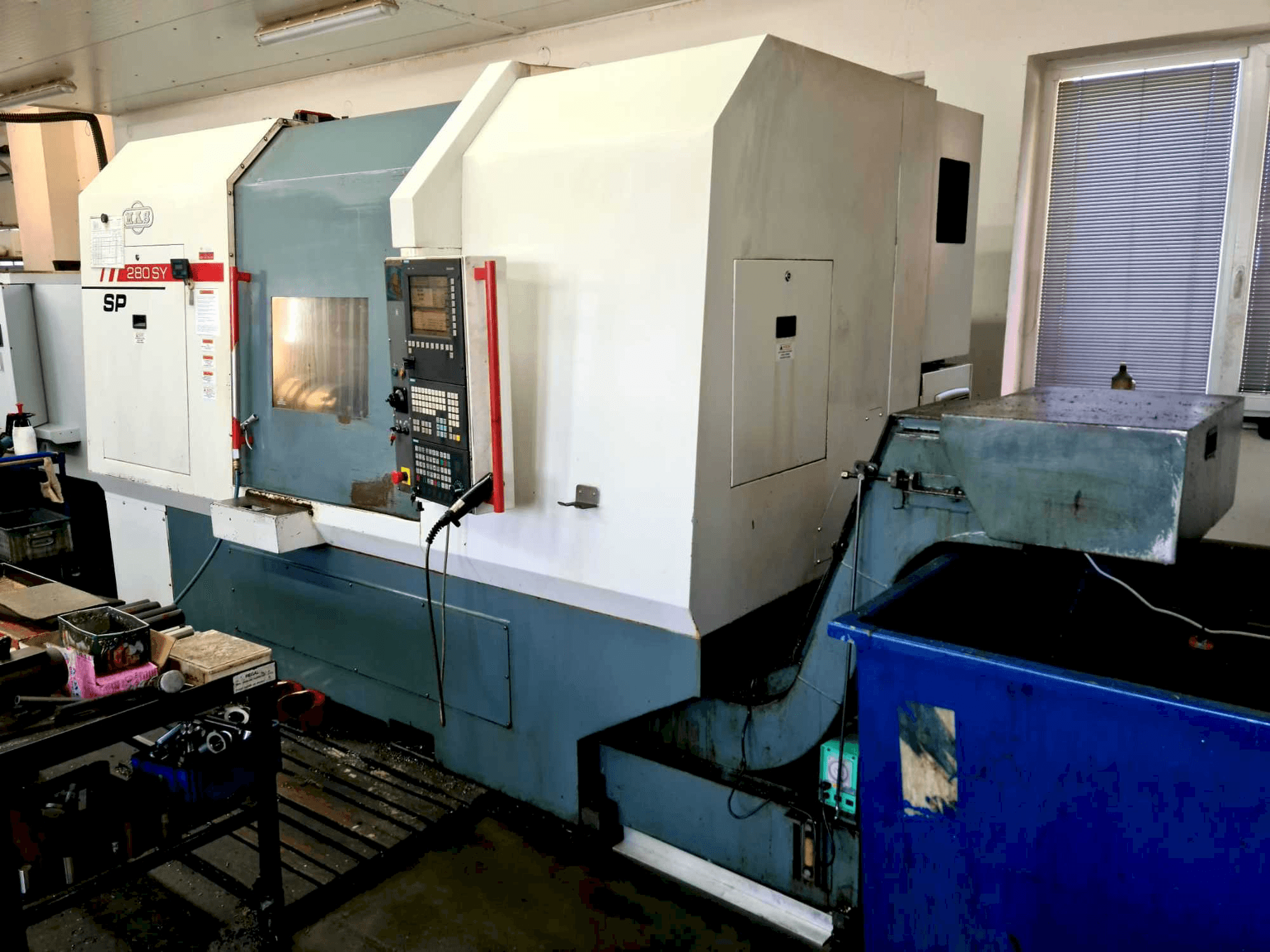

Front view of KOVOSVIT MAS SP 280 SY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS SP 280 SY

Photo Gallery

KOVOSVIT MAS - SP 280 SYCZ-TUR-KOV-2007-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS SP 280 SY Lathe

Show in original language

This KOVOSVIT MAS SP 280 SY Lathe was built in the year 2007 in Czech Republic. This 4 axis machine can operate with a main spindle speed up to 5000 rpm, and a sub spindle speed up to 6000 rpm. It is operated with a Siemens Sinumerik control unit.

Overview

brand: KOVOSVIT MAS
year: 2007
MODEL: SP 280 SY
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - KOVOSVIT MAS SP 280 SY

General Data

Measurements width: 3875 mm
Measurements depth: 2122 mm
Measurements height: 2345 mm
Machine weight: 7900 kg

Control Unit

Model: Sinumerik
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 241 mm
Y-AXIS Movement: (+/-) 50 MM
Z-AXIS Movement: 640 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Subspindle speed 6000 rpm
- - Turning diameter over bed 570 mm
- - Max. Cutting length 450 mm
- - Max. Cutting diameter 280 mm
- - Main spindle bore 70 mm
- - Subspindle bore 40 mm
- - Max. Bar diameter 61 mm
- - Fast feed 30 m/min
- - Spindle power s1/s6 (40%) 20. 9/27 kw
- - Spindle power s1/s6 (40%) 7. 5/9 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
