➤ Used KOVOSVIT MAS Optimat A42 For Sale | gindumac.com

Show in original language

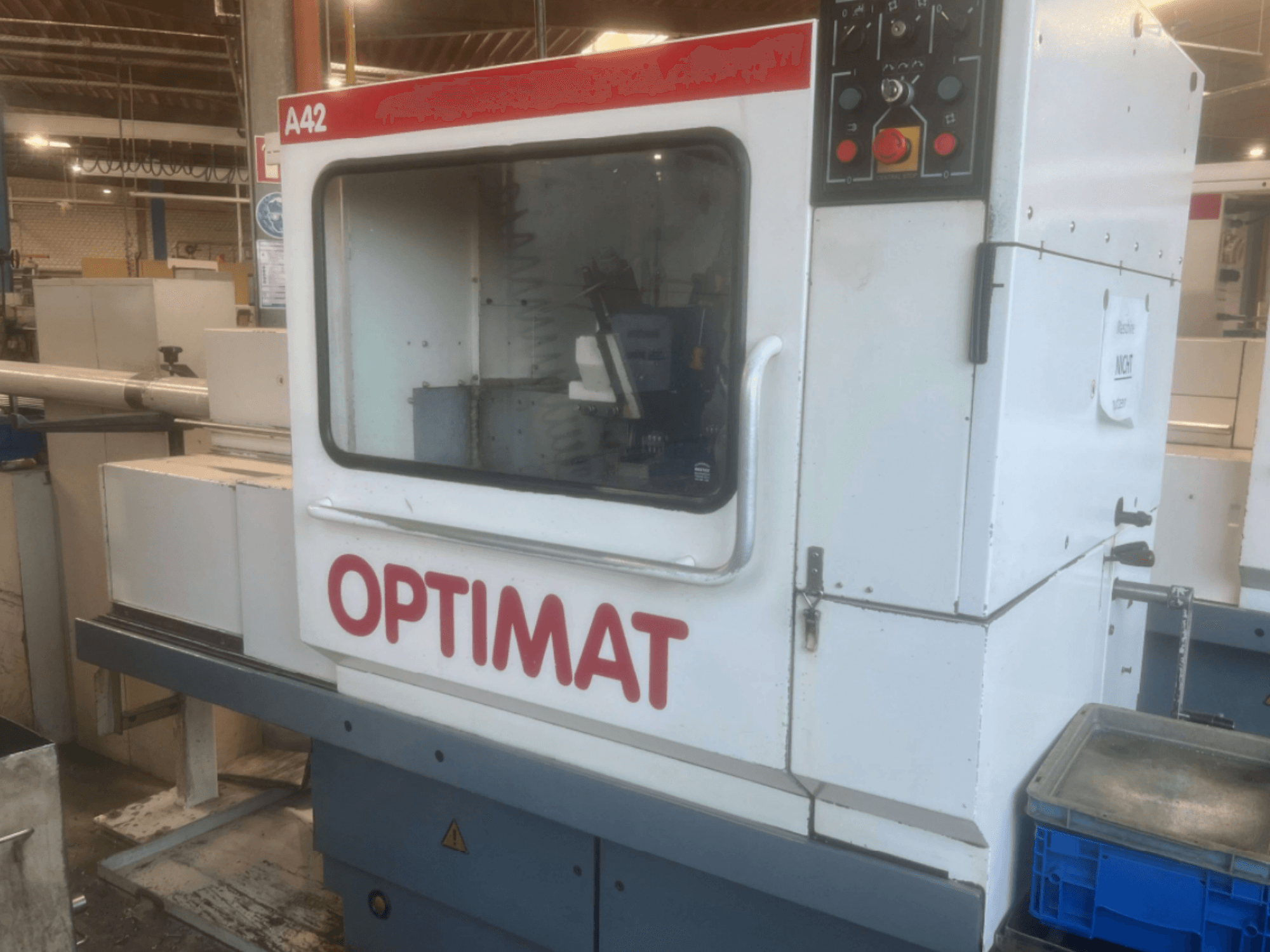

Horizontal turning machine manufactured in 2002. This KOVOSVIT MAS Optimat A42 features a robust design with a weight of 2505 kg and a total power consumption of 12 kVA. It is equipped with a manual guide bar/tube loading support system for enhanced functionality. If you are looking to get high-quality turning capabilities, consider the KOVOSVIT MAS Optimat A42 machine we have for sale. Contact us for further details.

Overview

brand: KOVOSVIT MAS
year: 2002
MODEL: Optimat A42
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - KOVOSVIT MAS Optimat A42

Dimensions

Machine Weight: 2505 kg

Movement

Number of Axes: 2
X-axis Travel: 110 mm
Z-axis Travel: 310 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 2818 RPM
Tool Stations: 6

Additional Information

- Main Phase Voltage: 3x 400 V ~

- Rated Current: 26 A

- Total Power Consumption: 12 kVA

- Frequency: 50 Hz

- Control Circuit Voltage (AC): 110 V ~

- Control Circuit Voltage (DC): 24 V =

- Machine Lighting Voltage: 220 V

- Machine Lighting Wattage: 2x 20 W

- Control: Curve

- Spindle diameter: 42 (50) mm

- Spindle speed: 85 – 2,818

- Number of tools: 4 side-cutting tools

- 6 tool stations on the turret

- Schematic / Diagram Reference: SCH 338 / 40004 - 34

- Bar Feed Equipment: Fitted with manual guide bar/tube loading support system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
