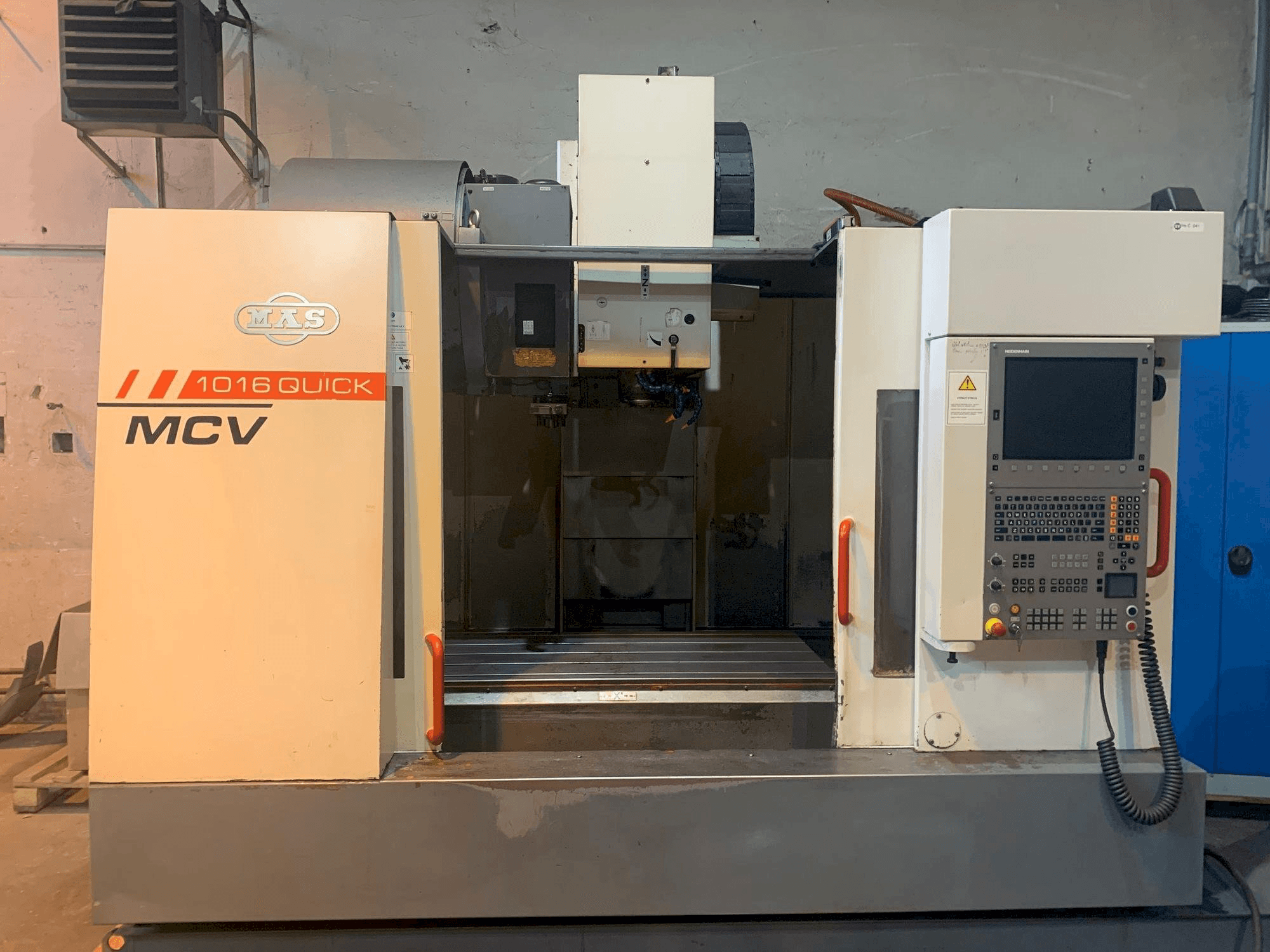

Front view of KOVOSVIT MAS MCV 1016 QUICK machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS MCV 1016 QUICK

Photo Gallery

KOVOSVIT MAS - MCV 1016 QUICKCZ-MIL-KOV-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS MCV 1016 QUICK

Show in original language

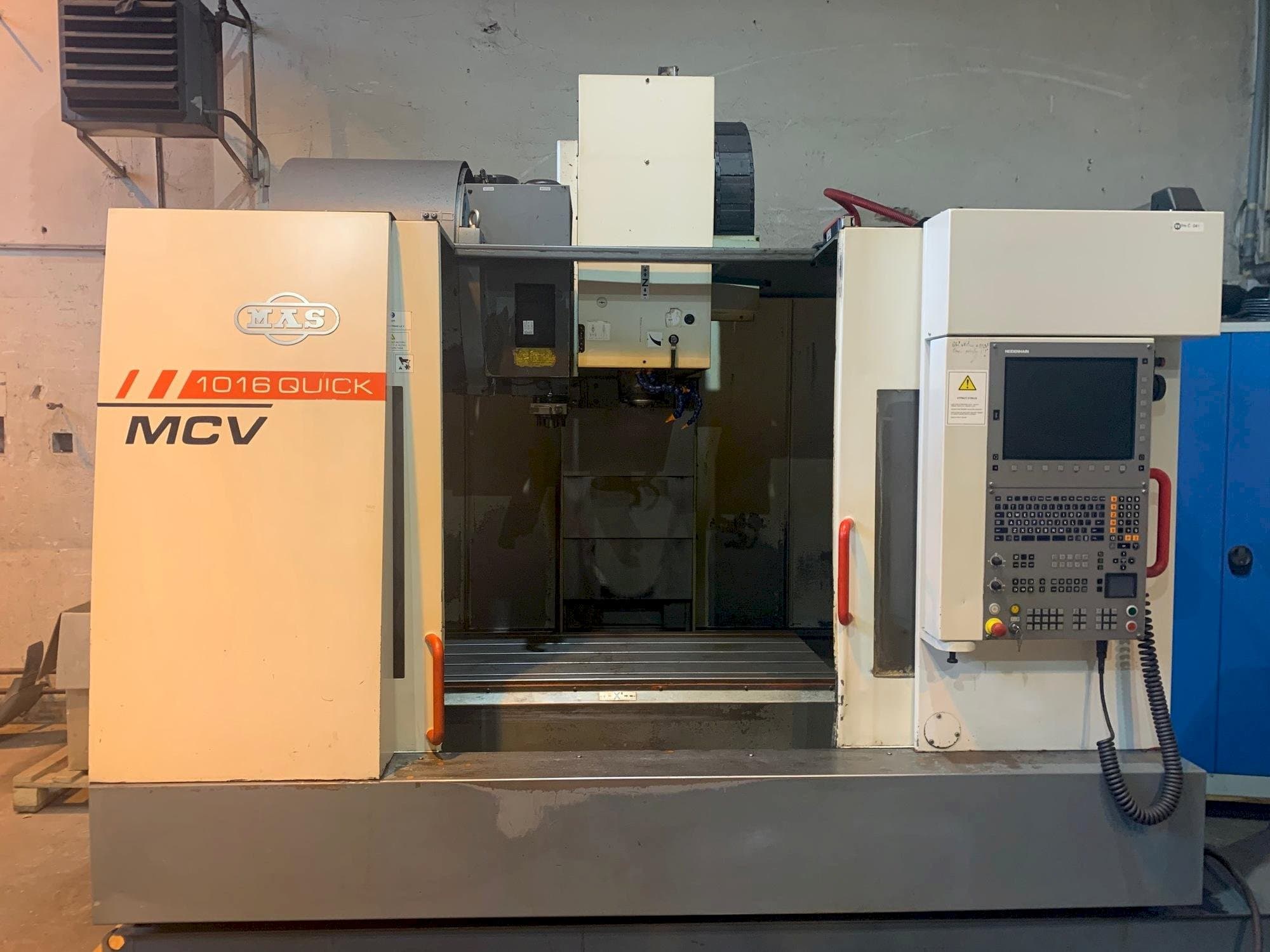

This KOVOSVIT MAS MCV 1016 QUICK Vertical Machining Center was manufactured in the year 2013 in Czech Republic. It has a working record of 20000 hours. This 3 axis machine is equipped with a HEIDENHAIN iTNC 530 HSCI control unit. It can work with a spindle speed up to 10000 rpm. A new spindle was installed in the machine in 2020. This machine presents very good conditions.

Overview

brand: KOVOSVIT MAS
year: 2013
MODEL: MCV 1016 QUICK
production hours: 20000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1016 QUICK

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530 HSCI

Dimensions

Machine Depth: 2700 mm
Machine Height: 2937 mm
Machine Weight: 5500 kg
Table Length: 1300 mm
Table Width: 600 mm

Movement

Number of Axes: 3
X-axis Travel: 1016 mm
Y-axis Travel: 610 mm
Z-axis Travel: 710 mm

Technical Specification

Max. Tool Weight: 6.5 kg
Number of Tools: 24
Spindle Power: 1 kW
Spindle Speed: 10000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
2020 - new spindle installed

Technical Machine Benefits

Cooling through spindle
Workpiece probe
Main motor torque (s1/s6 - 40%) 162/239 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
