KIRNER K360HS

Photo Gallery

KIRNER - K360HSDE-GRI-KIR-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KIRNER K360HS For Sale | gindumac.com

Show in original language

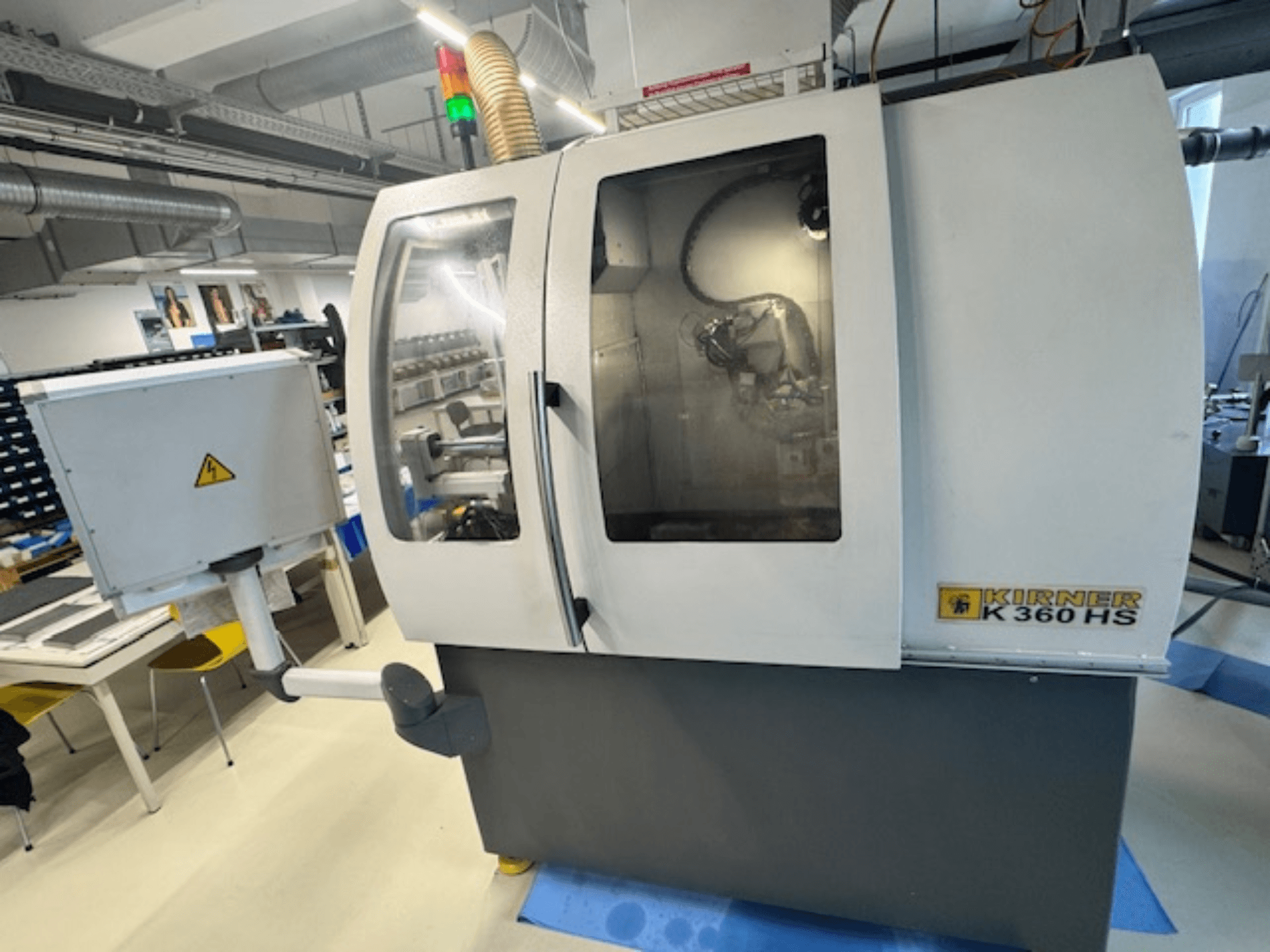

This 9-axis KIRNER K360HS cylindrical grinding machine was manufactured in 2009. It features a grinding spindle maximum speed of 8,500 rpm and a workpiece holder maximum diameter of 150 mm. The integrated loading robot allows for efficient automation, handling up to 1,020 pieces. If you are looking to get high-quality grinding capabilities, consider the KIRNER K360HS machine we have for sale. Contact us for further details.

Overview

brand: KIRNER
year: 2009
MODEL: K360HS
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
control unit brand: SIEMENS

Technical Information - KIRNER K360HS

Control Unit

Control Brand: SIEMENS
Control Model: 840 D

Dimensions

Machine Height: 2100 mm
Machine Length: 1900 mm
Machine Weight: 2600 kg
Machine Width: 1600 mm

Movement

C-axis: 210°
Number of Axes: 9
X-axis Travel: 235 mm
Y-axis Travel: 220 mm
Z-axis Travel: 150 mm

Additional Information

- X-Axis Resolution: 0.0000095 mm

- X-Axis Rapid Traverse: 12 m/min

- X-Axis Drive: Servomotor

- Y-Axis Resolution: 0.0000095 mm

- Y-Axis Rapid Traverse: 12 m/min

- Y-Axis Drive: Servomotor

- Z-Axis Resolution: 0.0000095 mm

- Z-Axis Rapid Traverse: 12 m/min

- Z-Axis Drive: Servomotor

- A-Axis Rotation: Infinite

- A-Axis Resolution: 0.000034°

- A-Axis Speed: 100 1/min

- A-Axis Drive: High-Torque Motor

- B-Axis Swivel Range: 205°

- B-Axis Resolution: 0.000035°

- B-Axis Speed: 30 1/min

- B-Axis Drive: High-Torque Motor

- C-Axis Resolution: 0.000034°

- C-Axis Speed: 30 1/min

- C-Axis Drive: High-Torque Motor

- Grinding Motor Torque: 9.5 Nm at max. 4500 1/min

- Grinding Spindle Max Speed: 8,500 1/min

- Grinding Wheels Dimensions: 60 x 160 mm (40 x 160 mm)

- Workpiece Holder Max Diameter: 150 mm

- Collet Types: K7 / W10 / W12 (optional W15)

- Shank Diameter Range: 0.5 - 8 mm

- Max Shank Length: 105 mm (155 mm for W10)

- Loading/Unloading System: Integrated Loading Robot

- Workpiece Capacity: Max. 1020 pieces (for head/shank diameter = 3 mm)

- Application Range: Fully automatic complete machining of rotary burrs, dental cutters, and drills made of carbide or HSS in a single clamping

- Connected Load: Approx. 12 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
