KIEFEL KLS 86/235

Photo Gallery

KIEFEL - KLS 86/235DE-OTH-KIE-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used KIEFEL KLS 86/235 For Sale | gindumac.com

Show in original language

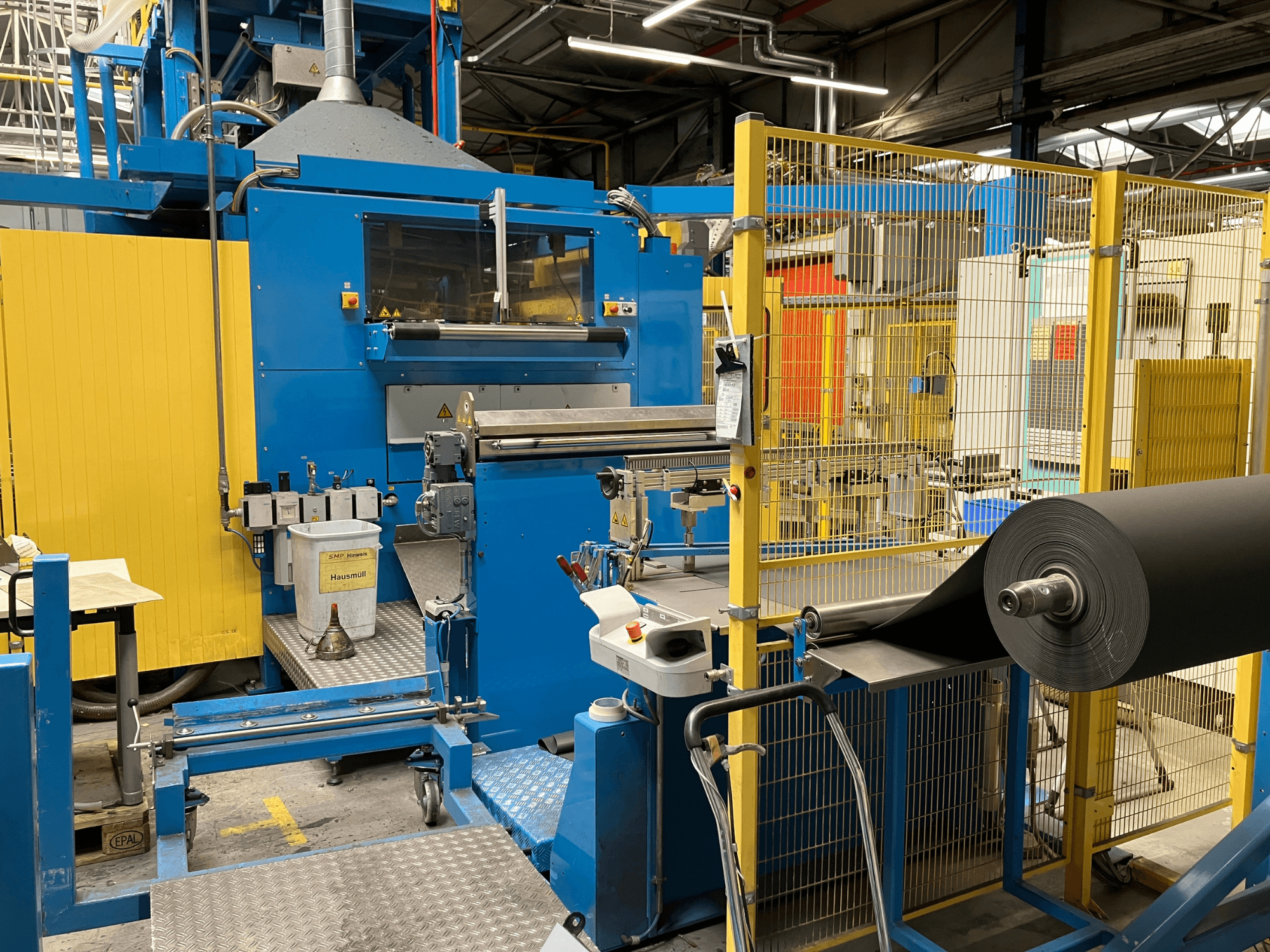

This KIEFEL KLS 86/235 was manufactured in 2011. It features a maximum forming area of 860 x 2350 mm and a maximum forming part height of 350 mm. The machine is equipped with a powerful vacuum system with a suction power of 2 x 300 m³/h. If you are looking to get high-quality laminating capabilities, consider the KIEFEL KLS 86/235 laminating system we have for sale. Contact us for further details.

Overview

brand: KIEFEL
year: 2011
MODEL: KLS 86/235
production hours: 35000
application type: Other Plastic Processing Machinery
Location: Germany
machine type: Plastic Processing Machine

Additional Information

Operating voltage: 3 x 400V + N + PE / 50 Hz
Connected load: 225 kVA
Nominal current: 264 A
Preliminary fuse: 315 A
Short-circuit strength: 50 kA
Control voltage: 24 VDC
Max. forming area: 860 x 2350 mm
Min. forming area: 340 x 1200 mm
Max. forming part height: 350 mm
Film level: 1805 mm
Max. lower table stroke: 1330 mm
Max. upper table stroke: 585 mm
Rotary upper table: 4-part (Forming / Punching)
Punching force upper table: 30 kN
Punching counterforce lower table: 30 kN
Operating pressure: 6 bar
Compressed air requirement: approx. 300 Nl/cycle
Max. roll diameter: 600 mm
Max. film width: 1100 mm
Max. film roll weight: 400 kg
Coil diameter max: 76 mm
Vacuum system suction power: 2 x 300 m³/h
Vacuum system power: 7.6 kW
Tank volume: approx. 1000 L
Side channel blower suction: 14 m³/min
Side channel blower power: 8.5 kW
Feed width chain rails: max. 940 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
