KEYENCE - VR-6200DE-MEA-KEY-2025-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used KEYENCE VR-6200 For Sale | gindumac.com

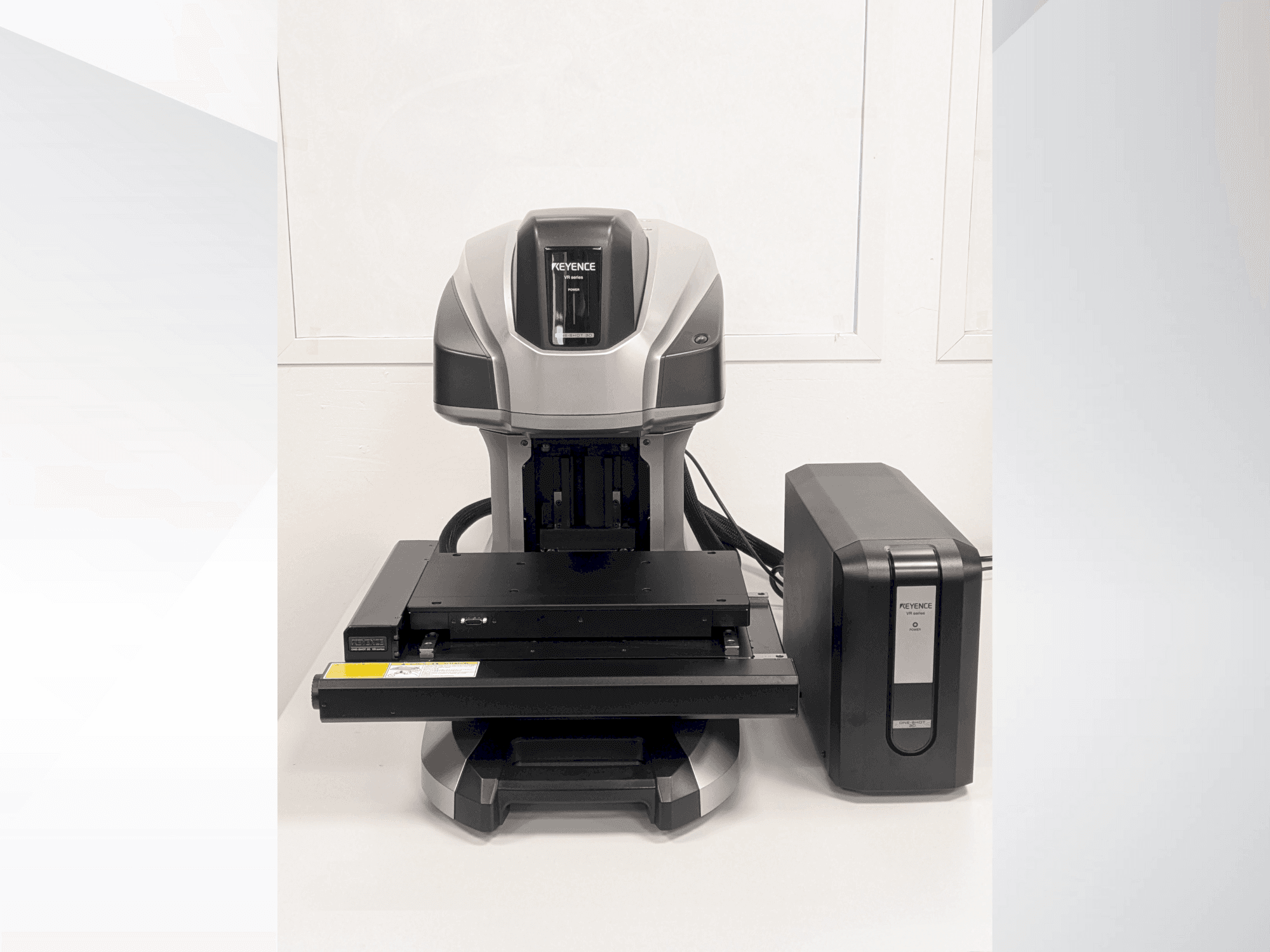

This 3-axis KEYENCE VR-6200 optical measurement machine was manufactured in 2025. It features a high-resolution 4-megapixel monochrome CMOS imager, double telecentric lenses, and a motorized rotation unit supporting a 300 × 150 mm measuring range. The machine offers a zoom range from 1× to 4× and utilizes LED lighting for precise observation and measurement. If you are looking to get high-quality measurement capabilities, consider the KEYENCE VR-6200 machine we have for sale. Contact us for more information.
Overview
- brand: KEYENCE
- year: 2025
- MODEL: VR-6200
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
Technical Information - KEYENCE VR-6200
Dimensions
- Machine Depth: 429 mm
- Machine Height: 218 mm
- Machine Weight: 28 kg
Additional Information
Additional equipment
- Stitching function: Fully automatic measurement with motorized rotation unit supported (measuring range: 300 x 150 mm), measuring range with module VR-H4J: 278 x 134 mm (XY stroke), 69 mm (Z stroke)
Machine Benefits
Technical Machine Benefits
- Load capacity: 4. 5 kg
- Optics and illumination: working distance of 75 mm with 4-megapixel monochrome cmos imager, double telecentric lenses, led ring light (red, blue, green) for observation, and white led for measurement
- Control: dedicated pc (windows 10 pro)
- Power supply: 100-240 vac ±10%, 50/60 hz, max power consumption of 200 va
- Ambient conditions: temperature +15 to 30°c, humidity 20-80% rh (no condensation)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
