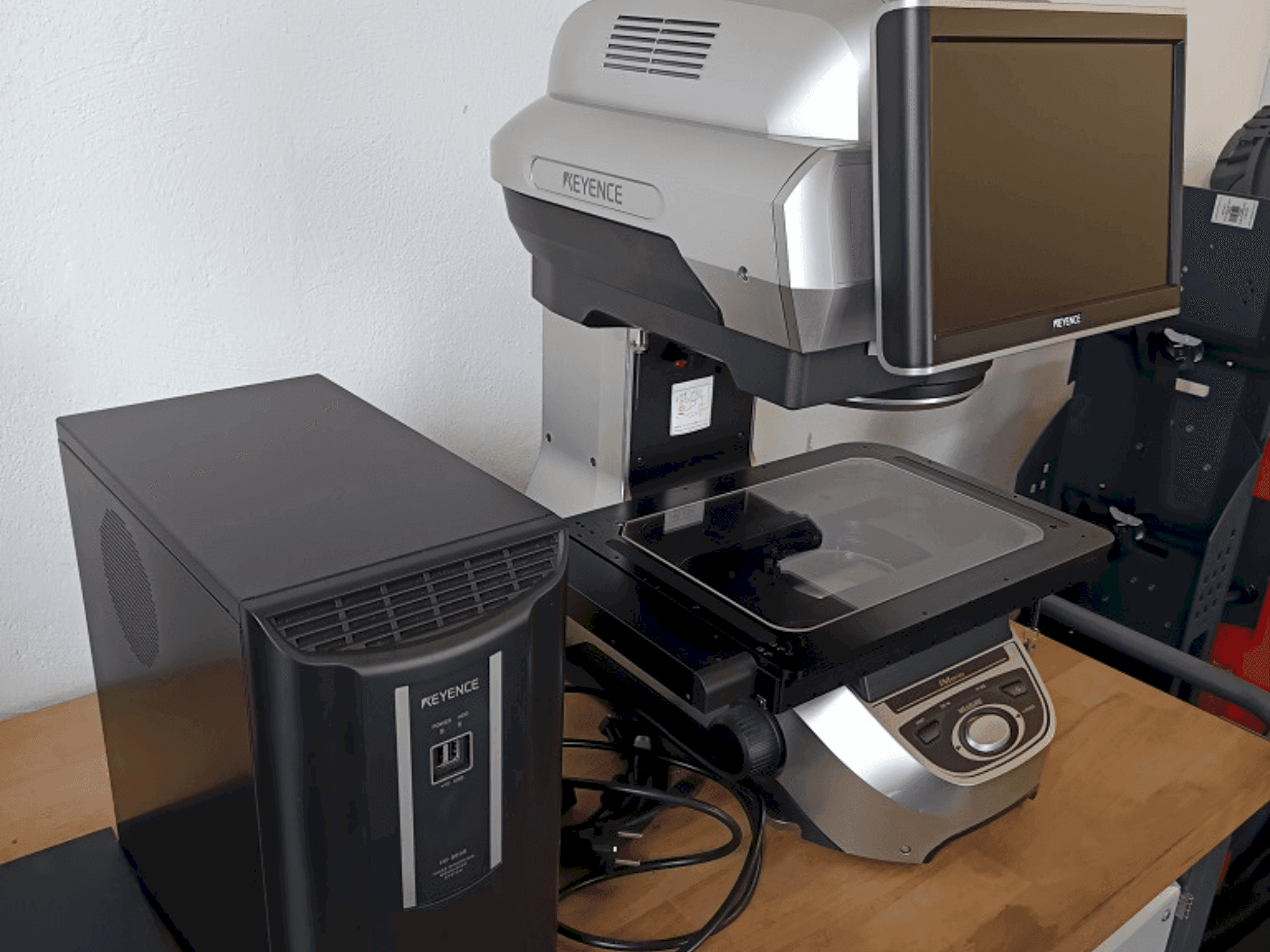

This KEYENCE 8030T optical measurement machine was manufactured in 2023. It features a 1" 20-megapixel CMOS image sensor, a 12.1" LCD display, and dual telecentric lens optics. The machine offers a wide-field measuring range of 300 × 200 mm and a high-precision range of 225 × 125 mm. It supports various interfaces including LAN and USB ports, and operates within ambient conditions of 10–35 °C. For more information about this machine, please reach out to us.
Overview
- brand: KEYENCE
- year: 2023
- MODEL: 8030T
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
Technical Information - KEYENCE 8030T
Dimensions
- Machine Depth: 1385 mm
- Machine Height: 1565 mm
- Machine Weight: 350 kg
- Table Load: 7.5 kg
Additional Information
Machine Benefits
Technical machine benefits:
Light Sensor Measurement
Normal Coaxial Optics
Image Sensor 1" 20-megapixel CMOS
Display 12.1" LCD (1280×800)
Dual telecentric lens
High-precision: 225 × 125 mm
Wide-field: ±1–2 µm
High-precision: ±0.5–1.5 µm
Measurement Accuracy (±2σ)
Wide-field: up to ±9 µm
High-precision: up to ±2 µm
Outer Diameter Measurement Accuracy ±(2.8–4 µm)
Measurement Range: 190 × 90
Measurement Depth: 30 mm
Diameter: 0.3 mm
Measuring Force: 0.015 N
Height Measurement
Measurement Accuracy: ±(8 µm)
Resolution: 1 µm
Telecentric, LED ring (multi-angle)
Interfaces LAN, USB 3.1 (4 ports), USB 2.0 (4 ports), DVI-D, 500 GB HDD
Extra information
Power Supply
Measuring Device: 100–240 V AC, 50/60 Hz, Consumption 430 VA
Vibratory Finishing Machine: 230 V AC, 50 Hz, Power 700 W
Ambient Conditions
Temperature: 10–35 °C
Humidity: 20–80% RH
Vibratory Finishing Machine Specifications
Water Tank Volume: 45 lTrough
Volume: 35 l
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
