KASSOW ROBOTS - KR810DE-ROB-KAS-2020-00002

Rs. 1,527,959
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Collaborative robot manufactured in 2020. This KASSOW ROBOTS KR810 features a reach of 850 mm and a payload capacity of 10 kg. It is designed with a lightweight body made of anodized aluminum and offers a maximum speed of 1200 mm/s. If you are looking to get high-quality automation capabilities, consider the KASSOW ROBOTS KR810 collaborative robot we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: KASSOW ROBOTS
  • year: 2020
  • MODEL: KR810
  • production hours: 300
  • application type: Robotics
  • Location: Germany
  • machine type: Collaborative Robot

Technical Information - KASSOW ROBOTS KR810

Dimensions

  • Machine Weight: 24 kg

Movement

  • Number of Axes: 7

Technical Specification

  • Max. Handling Weight: 10 kg
  • Max. Reach: 850 mm

Additional Information



- Joint Speed: 225 deg/sec

- Joint Ranges: J2 and J4: -70°/+180°; J1, J3, J5, J6 and J7: ±360°

- Degrees of Freedom: 7

- Repeatability: +/- 0.1 mm

- Footprint: 130 x 130 mm

- Operating Temperature: 0 - 45 °C

- Body Material: Anodized aluminum

- Protection Rating: IP54

- Controller: KR Controller KR810/KR1205

- Digital Outputs 24V: 8 pcs

- Relay Outputs: 4 pcs

- Digital Inputs 3-30V: 16 pcs

- Analogue I/O (0-10V): 2 / 2

- Analogue I/O (4-20mA): 2 / 2

- Power Consumption (with max load): 400 - 600 W

- Supply Voltage: 100-120 VAC or 200-240 VAC

- Supply Current: 16 A

- Supply Frequency: 50 / 60 Hz

- Max Speed: 1200 / 1800 mm/s

- Sound Level: Below 70 dB

- Absolute Encoders on Joints: Yes

- Brakes on Joints: Yes

- Working Hours: < 300 hours (Test and evaluation use only in lab environment)

- Optional Accessories / End Effector Included: Schunk Arm CO-ACT EGP-C 64 gripper

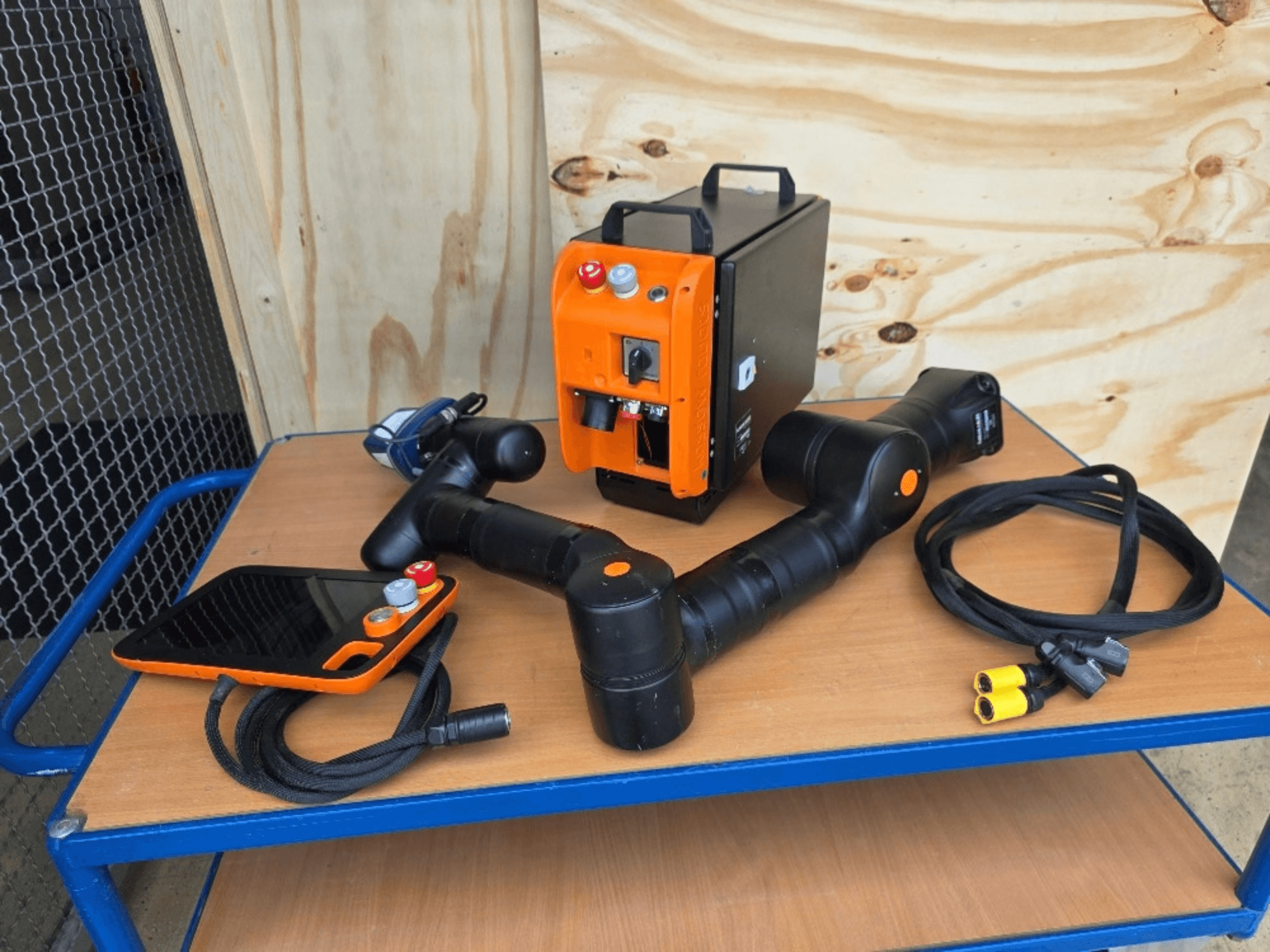

- Included Equipment: Robot arm, original Kassow controller, Kassow Teach Pendant (tablet) with cable, power and communication cables, mounting interface / base plate, original documentation/manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
