➤ Used FANUC LR Mate 200iD/7L auf Bosch APAS assistant i6 For Sale

Show in original language

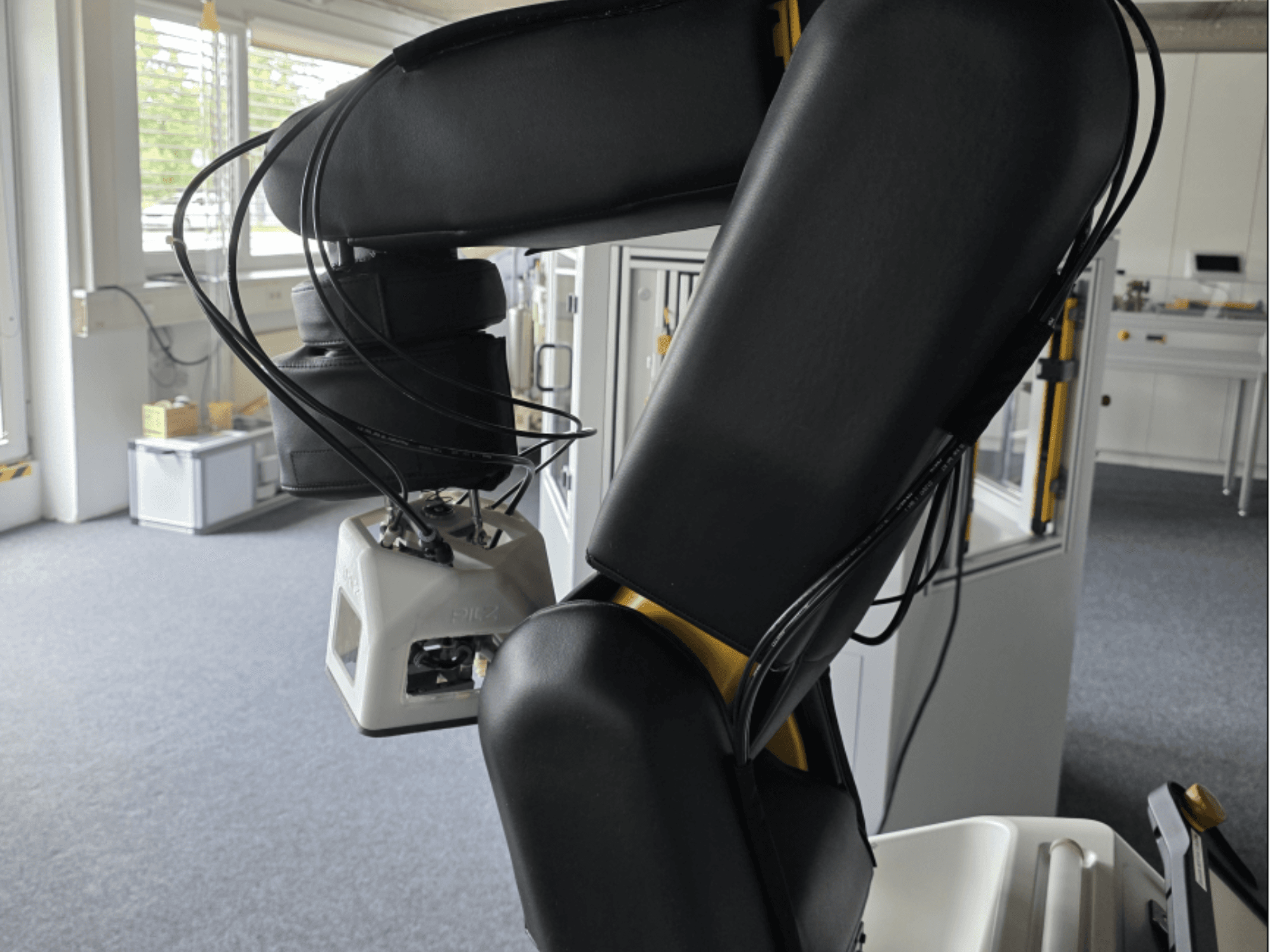

This 6-axis FANUC LR Mate 200iD/7L auf Bosch APAS assistant i6 was manufactured in 2015. It features a mobile base unit, a FANUC System R-30iB Mate control unit, and a custom-built pneumatic gripper. With 3,800 operating hours, this collaborative robot offers versatile automation capabilities. If you are looking to get high-quality automation capabilities, consider the FANUC LR Mate 200iD/7L collaborative robot we have for sale. Contact us for further details.

Overview

brand: FANUC
year: 2015
MODEL: LR Mate 200iD/7L auf Bosch APAS assistant i6
production hours: 3800
application type: Robotics
Location: Germany
machine type: Collaborative Robot
control unit brand: FANUC

Technical Information - FANUC LR Mate 200iD/7L auf Bosch APAS assistant i6

Control Unit

Control Brand: FANUC
Control Model: R-30iB Mate

Dimensions

Machine Weight: 27 kg

Movement

Number of Axes: 6

Technical Specification

Max. Handling Weight: 7 kg
Max. Reach: 911 mm

Additional Information

- Main Components: Mobile base unit Bosch APAS assistant i6 (on wheels), OpCon control panel, Robot arm FANUC LR Mate 200iD/7L, Control unit FANUC System R-30iB Mate, Teach pendant (handheld programming device)

- Peripherals & Additional Modules: Pneumatic module (Festo), Pneumatic gripper (custom-built), Protective covers and mounting frame (APAS-specific)

- Operating Hours: 3,800 h

- Main Circuit Voltage: 1/N/PE 230V AC 50Hz

- Control Circuit Voltage: 24V DC

- Full Load / Short Circuit Current: 3.5A / 10kA

- Min. Supply Line: 3 x 2.5 mm²

- Max. Backup Fuse: 16A gG

- Protection Rating: IP52

- Robot Weight: 27 kg

- Notes: Backup battery is dead

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
