Johnford ST-130 B+CF

Photo Gallery

Johnford - ST-130 B+CFDK-TUR-JOH-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

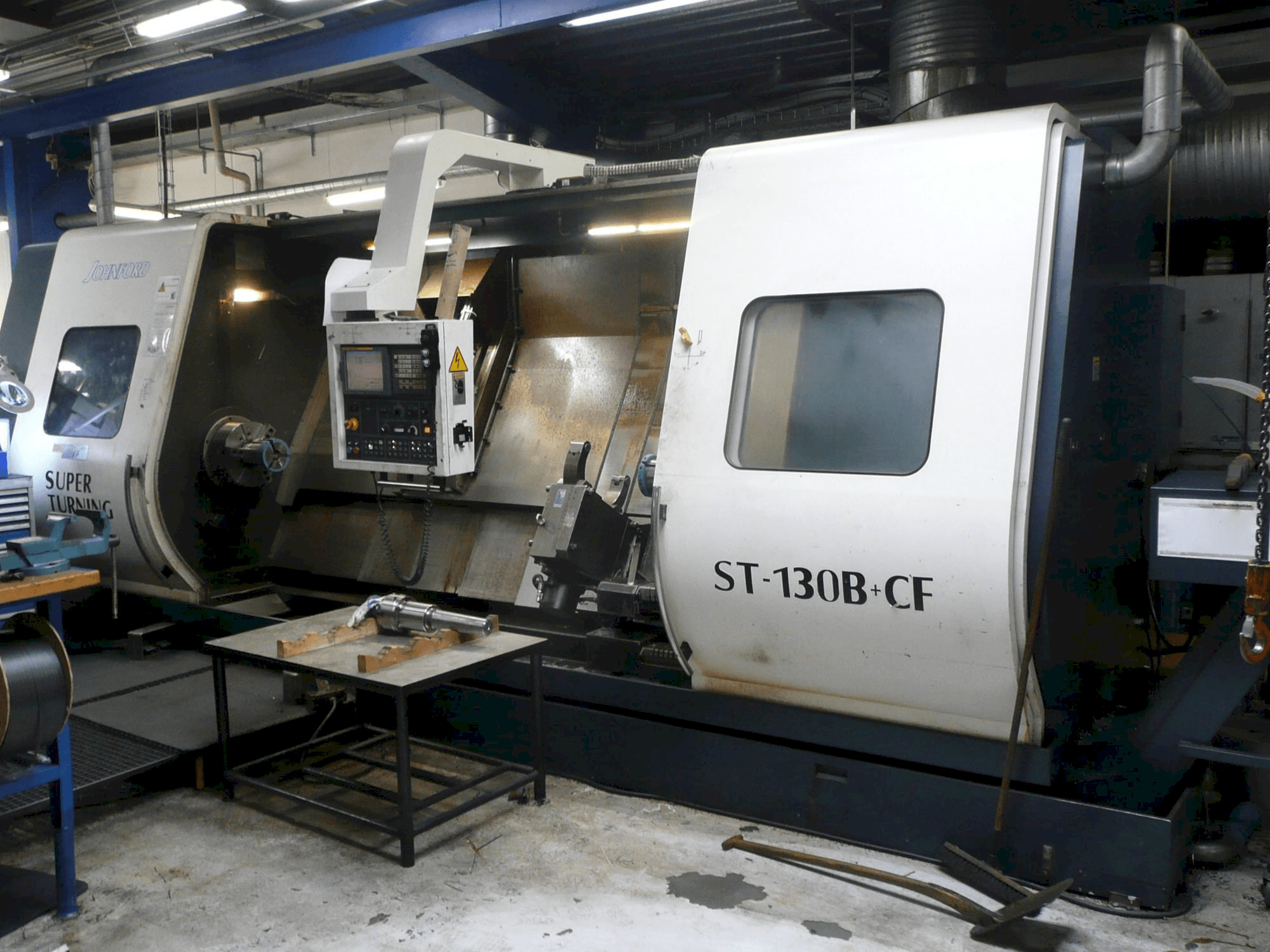

Johnford ST-130 B+CF Lathe

Show in original language

This Johnford ST-130 B+CF Lathe was manufactured in Taiwan in 2007. It has been power on for 54093 hours, of which 9756 are cutting hours. This 3 axis machine is equipped with a Fanuc Series 18i-TB control unit. It can work with a spindle speed up to 2000 rpm. The machine is in good conditions.

Overview

brand: Johnford
year: 2007
MODEL: ST-130 B+CF
production hours: 9756
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford ST-130 B+CF

Control Unit

Control Brand: FANUC
Control Model: Series 18i-TB

Dimensions

Machine Depth: 8200 mm
Machine Weight: 21000 kg

Movement

Number of Axes: 3
X-axis Travel: 370 mm
Z-axis Travel: 3050 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 2000 RPM
Tool Stations: 12

Additional Information

Machine Benefits

Qualitative Machine Benefits

Includes machine manual
Good condition

Technical Machine Benefits

Swing over bed: 920 mm
Swing over cross slide: 700 mm
Working length: 3000 mm
Rapid movement: x-axis 10 m/min
Rapid movement: z-axis 12 m/min
Full c axis, no. Of rotating stations 6 pcs
Interface rs-232 c
Hydraulic rest dia. : 45 - 310 mm, tailstock
3-jaw chuck dia. : 400 mm, set of tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
