- ➤ Used INGRAMATIC RP72 L For Sale | gindumac.com

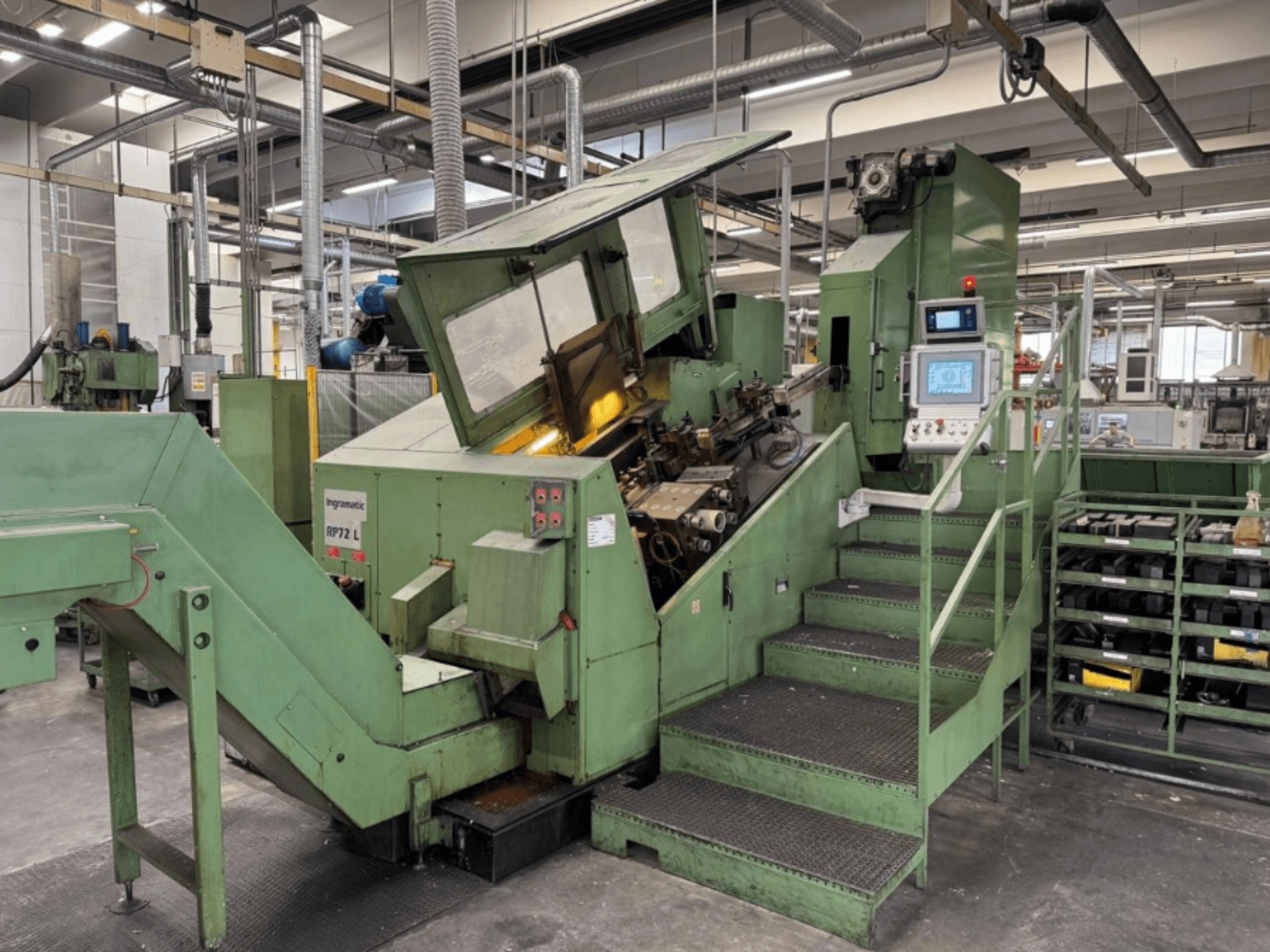

This INGRAMATIC RP72 L was manufactured in 2012. It features a double starter unit with TR7 dies, capable of threading diameters from M14 to M20. The machine operates at speeds up to 120 rpm, powered by a robust 45 kW motor. Weighing 15,000 kg, it is in very good condition and ready for immediate shipment. CE compliant and includes Brankamp control process. Contact us for more information about this machine.
Overview
- brand: INGRAMATIC
- year: 2012
- MODEL: RP72 L
- application type: Other Machine Tools
- Location: Italy
- machine type: Machine Tool
Technical Information - INGRAMATIC RP72 L
Dimensions
- Machine Weight: 15000 kg
Technical Specification
- Spindle Power: 45 kW
Additional Information
Starter unit: Double
Dies type: TR7
Die dimensions:
Fixed die length: 280 mm
Moving die length: 305 mm
Die thickness: 50 mm
Die height: 162.5 mm
Threading capacity:
Thread diameter: M14–M20
Shank length: 300 mm
Thread length: 160 mm
Performance:
Speed range (up to): 120 rpm
Condition: Very good, fully operational
Compliance: CE
Availability/Delivery: Ready for immediate delivery; ready for shipment
Additional equipment
Brankamp process control system included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
