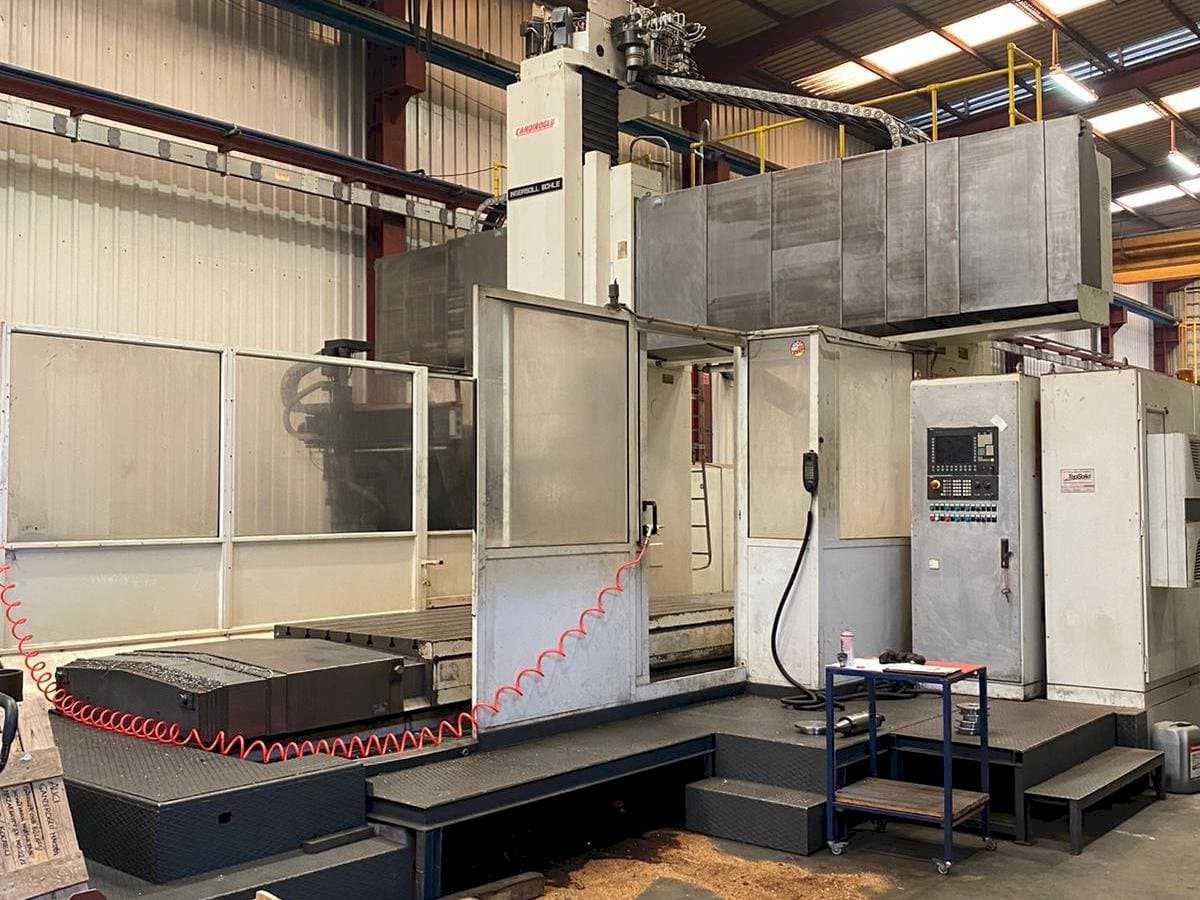

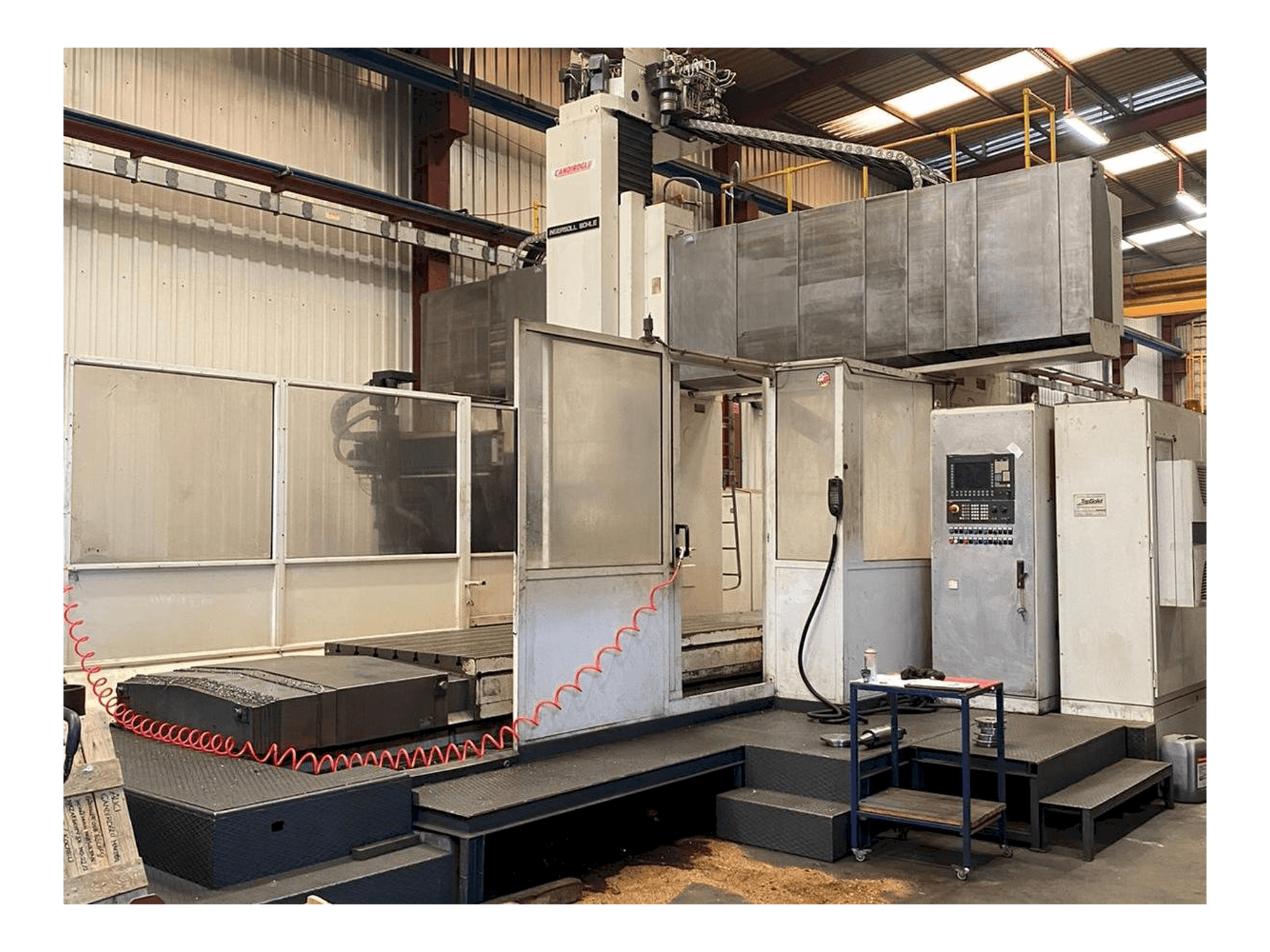

Front view of INGERSOL BOHLE Master Center T1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

INGERSOLL Master Center T1

Photo Gallery

INGERSOLL - Master Center T1TR-MIL-ING-1991-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
INGERSOL BOHLE Master Center T1

Show in original language

This INGERSOLL Master Center T1 Milling Machine was manufactured in the year 1991. It is equipped with a Siemens 840 D control unit. This 5 axis machine is capable of working with a spindle speed 40-4000 rpm, and a table surface 3000x1500 mm.

Overview

brand: INGERSOLL
year: 1991
MODEL: Master Center T1
application type: Milling
Location: Turkey
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - INGERSOLL Master Center T1

Control Unit

Control Brand: SIEMENS
Control Model: 840 D

Dimensions

Machine Weight: 85000 kg
Table Length: 3000 mm
Table Load: 30000 kg
Table Width: 1500 mm

Movement

Number of Axes: 5
X-axis Travel: 3900 mm
Y-axis Travel: 2700 mm
Z-axis Travel: 1100 mm

Technical Specification

Spindle Power: 50 kW
Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Refurbished in 2017

Technical Machine Benefits

2000mm between two columns x-y
Tool change 60 pcs
Head change 3 pcs
Torque 2400 nm
Spindle mount iso 50
T-slot width 28 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
