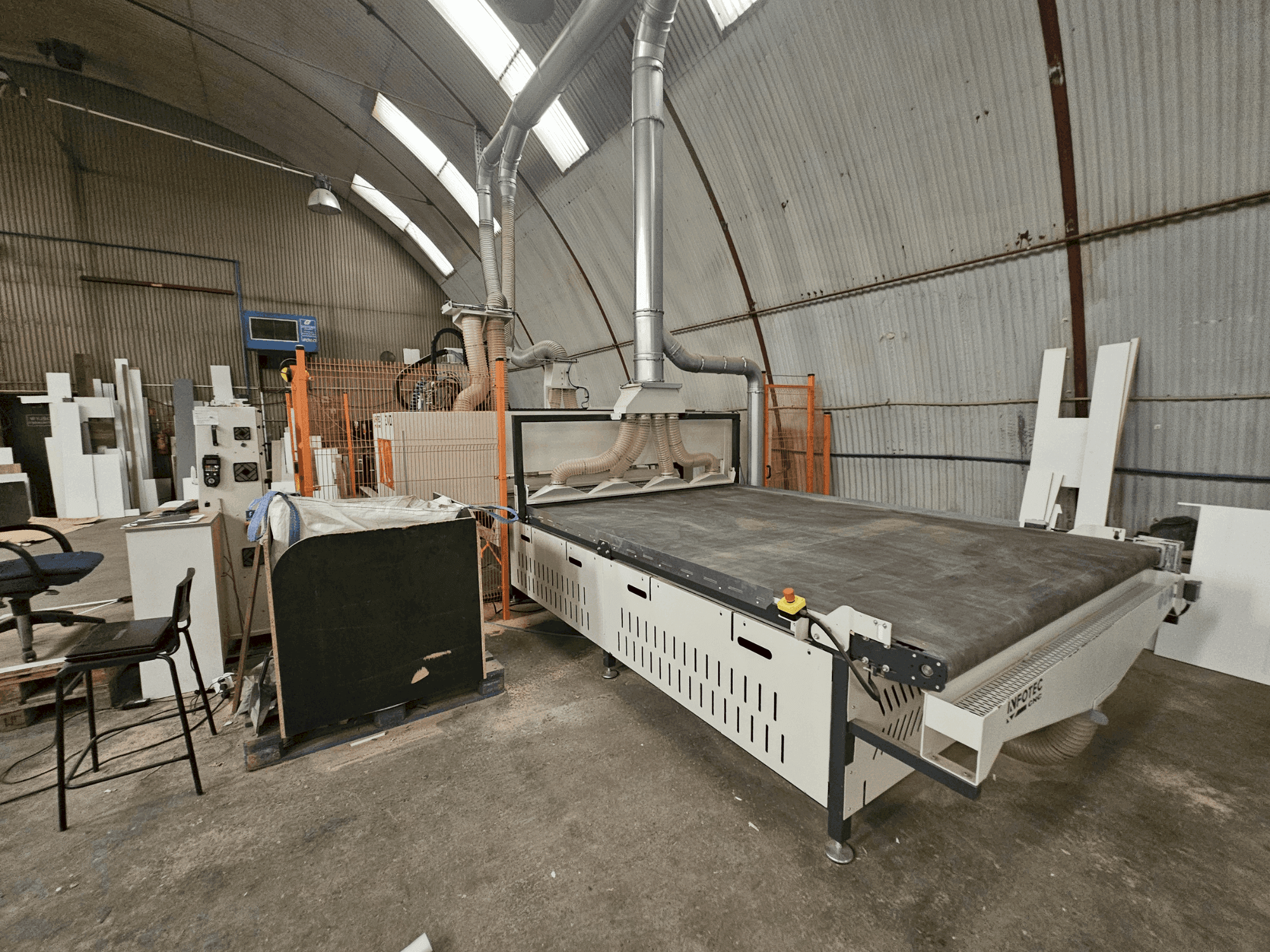

This 3-axis INFOTEC 3121 PRO EVO was manufactured in 2022. It features a working area of 2200 x 3100 mm, Z-axis travel up to 350 mm, and a high-speed main spindle with a power of 8.5 kW and speed range up to 24,000 RPM. Equipped with a 14-position tool magazine and a robust vacuum table with 6 zones. Ideal for advanced CNC wood machining. Contact us for more information about this machine.
Overview
- brand: INFOTEC
- year: 2022
- MODEL: 3121 PRO EVO
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Wood Machining Centre
Technical Information - INFOTEC 3121 PRO EVO
Dimensions
- Machine Weight: 3700 kg
Movement
- Number of Axes: 3
- Z-axis Travel: 250 mm
Technical Specification
- Spindle Power: 8.5 kW
- Spindle Speed: 24000 RPM
Additional Information
Additional equipment
- Remote Control Pendant
- Z-axis Tool Length Sensor
- 4 Vacuum Suction Cups // 4 Additional Positioning Pins (long)
- Automatic Dust Shoe Height Adjustment // Automatic Part Pushing System
- Receiving Table for Finished Parts (2800 x 2070 mm)
- Loading Table (2800 x 2100 mm, 2000 kg Capacity, 500 mm Stack)
- CNC Control System TPA – WSCM
- Straight-line Nesting Software (Included)
- Pneumatic and Electrical Preparation for Drill Head Upgrades
- ECO Mode for Energy Saving
Machine Benefits
Technical Machine Benefits
- Air supply required: 6–8 bar, 300 l/min
- Compressed air treatment: dryer + filters + oil separator
- Vacuum table: 6 zones
- Vacuum pumps: 2 x becker 250 m³/h (total 500 m³/h)
- Working area (x / y): 2200 x 3100 mm
Extra Information
Tools Tool Magazine: 14 positions (5 holders included – HSK 63F / ISO30) Drilling Unit: 12 Vertical Spindles 8 Horizontal Spindles 2 Saw Blades Power: 1.7 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
