IEMCA Master 80
IEMCA - Master 80
2016
Rs. 1,250,100
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- IEMCA Master 80 Bar Feeder

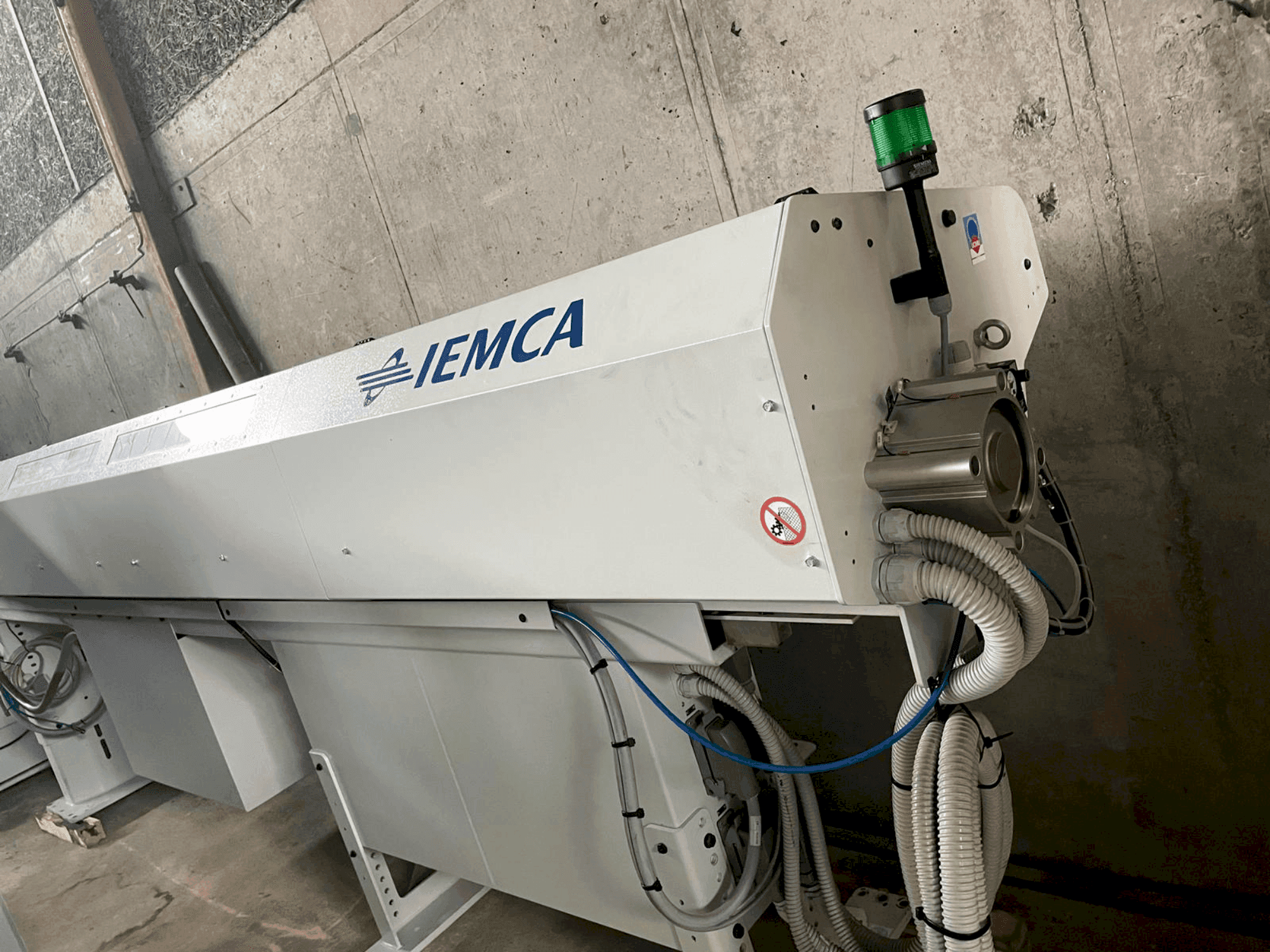

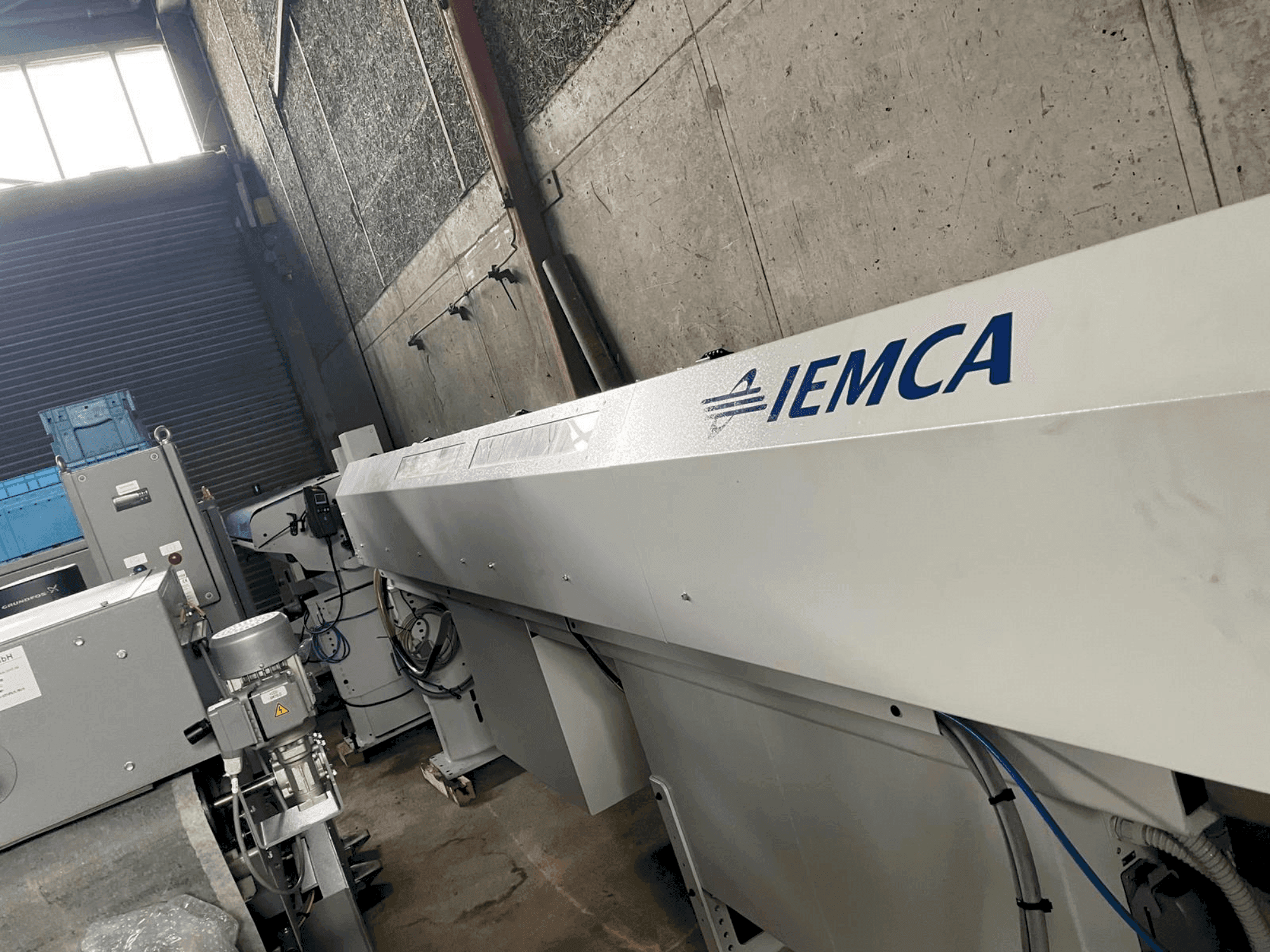

This IEMCA Master 80 Bar Feeder was manufactured in the year 2016. The machine is barely used. There are 2 units of the same model available. Both bar feeder were connected to identical Index C200 (YOM 2016 with Unimag 4 interface). They have a bar capacity of 80mm. Bar feeder #1 is at 7,500 and Bar feeder #2 at 8,000 production hours. The Master 80 HF is recommended for frequent unloading (even multiple times a day) needs, catering to a wide range of bars (e.g., from Ø 15 to 80 mm), accommodating both hexagonal and square materials, and for those seeking the convenience of a loader without manual adjustments required.
Overview
- brand: IEMCA
- year: 2016
- MODEL: Master 80
- production hours: 7500
- application type: Other
- Location: Austria
- machine type: Other
- availability: Immediately
- GINDUMAC ID: AT-OTH-IEM-2016-00001
Technical Information
Additional Information
- Technical Machine Benefits:
- - 2 units available
- - Connected to identical index c200 (yom 2016 with unimag 4 interface)
- - Bar capacity of 80mm
- - Diameter of round rods Ø 8-80 mm
- - Diameter hexagonal rods 7-65 mm
- - Diameter of square bars 6-50 mm
- - Up loading magazine capacity 600 mm
- - F loading magazine capacity 2500 kg
- - Mp loading magazine capacity 270 - 320 mm
- - Max. Weight of machined bar 180 kg // max. Bar change time (mod. 33) 32 sec
- Qualitative Machine Benefits:
- - Barely used
- - Bar feeder #1 = 7500h, bar feeder #2 = 8000h
- - Supply voltage 230/400 Volt // Installed power UP 3 KW // Installed power F 4 kW // Installed power MP 2.3 KW // Compressed air 6 bar
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
