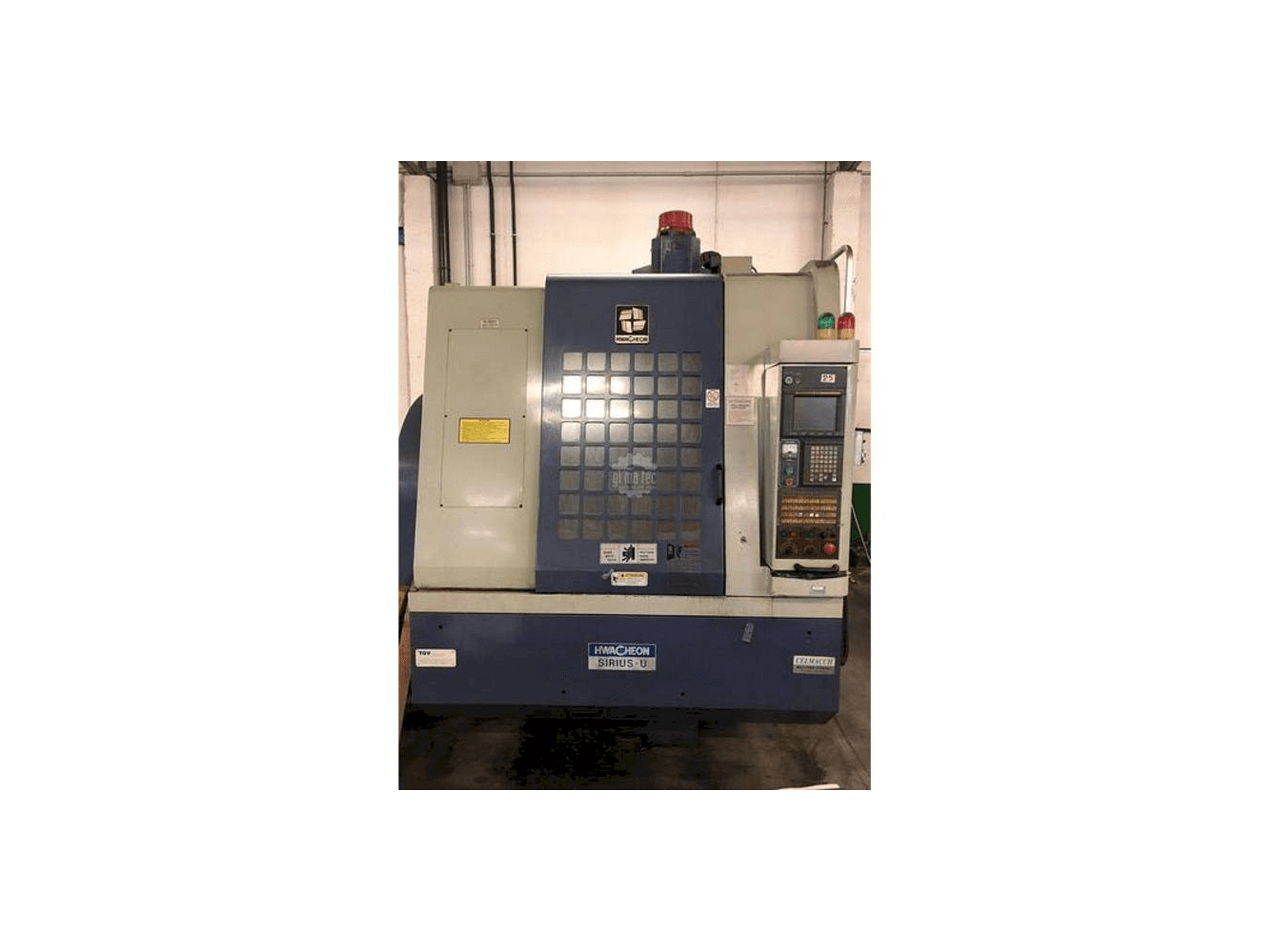

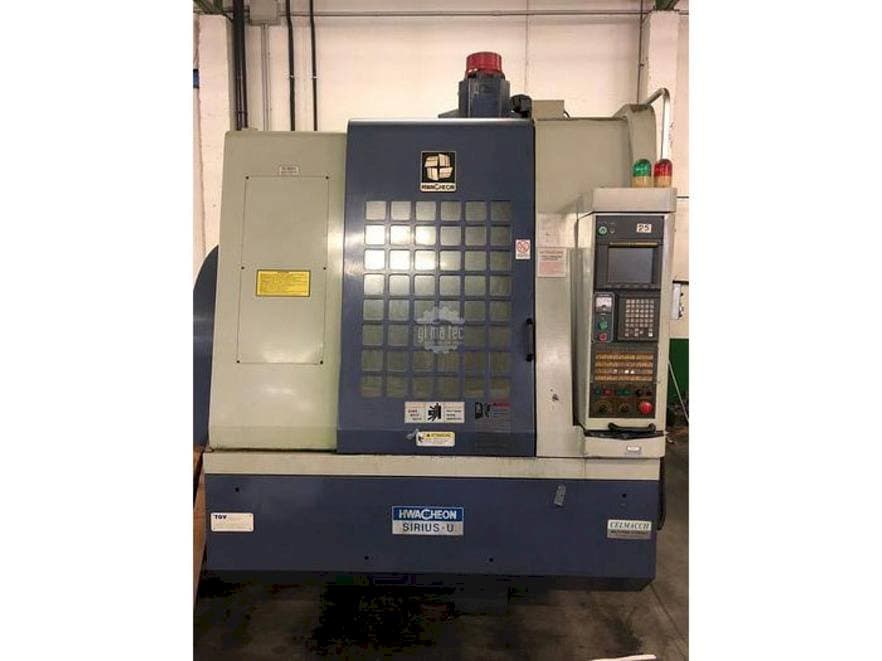

Front view of HWACHEON SIRIUS U  machine

HWACHEON - SIRIUS UIT-MIL-HWA-2010-00001

Rs. 2,419,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HWACHEON SIRIUS U Vertical Machining center was manufactured in the year 2010 in Korea. It is equipped with a Fanuc control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

  • brand: HWACHEON
  • year: 2010
  • MODEL: SIRIUS U
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - HWACHEON SIRIUS U

General Data

  • Measurements width: 2090 mm
  • Measurements depth: 3140 mm
  • Measurements height: 2900 mm
  • Machine weight: 7000 kg

Control Unit

  • Brand: Fanuc

Main drive

  • Spindle speed range: 10000 1/MIN
  • Tool taper: ISO40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 mm
  • X-AXIS Rapid traverse: 30000 m/s
  • Y-AXIS Movement: 500 mm
  • Y-AXIS Rapid traverse: 30000 m/s
  • Z-AXIS Movement: 500 mm
  • Z-AXIS Rapid traverse: 30000 m/s

Table

  • Outer length: 650 mm
  • Outer width: 500 mm

Tools

  • Slots in storage: 30

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tool selection method (atc magazine) random
      • - Coolant pressure: 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
