Huron VX12 Vertical Machine Center

Show in original language

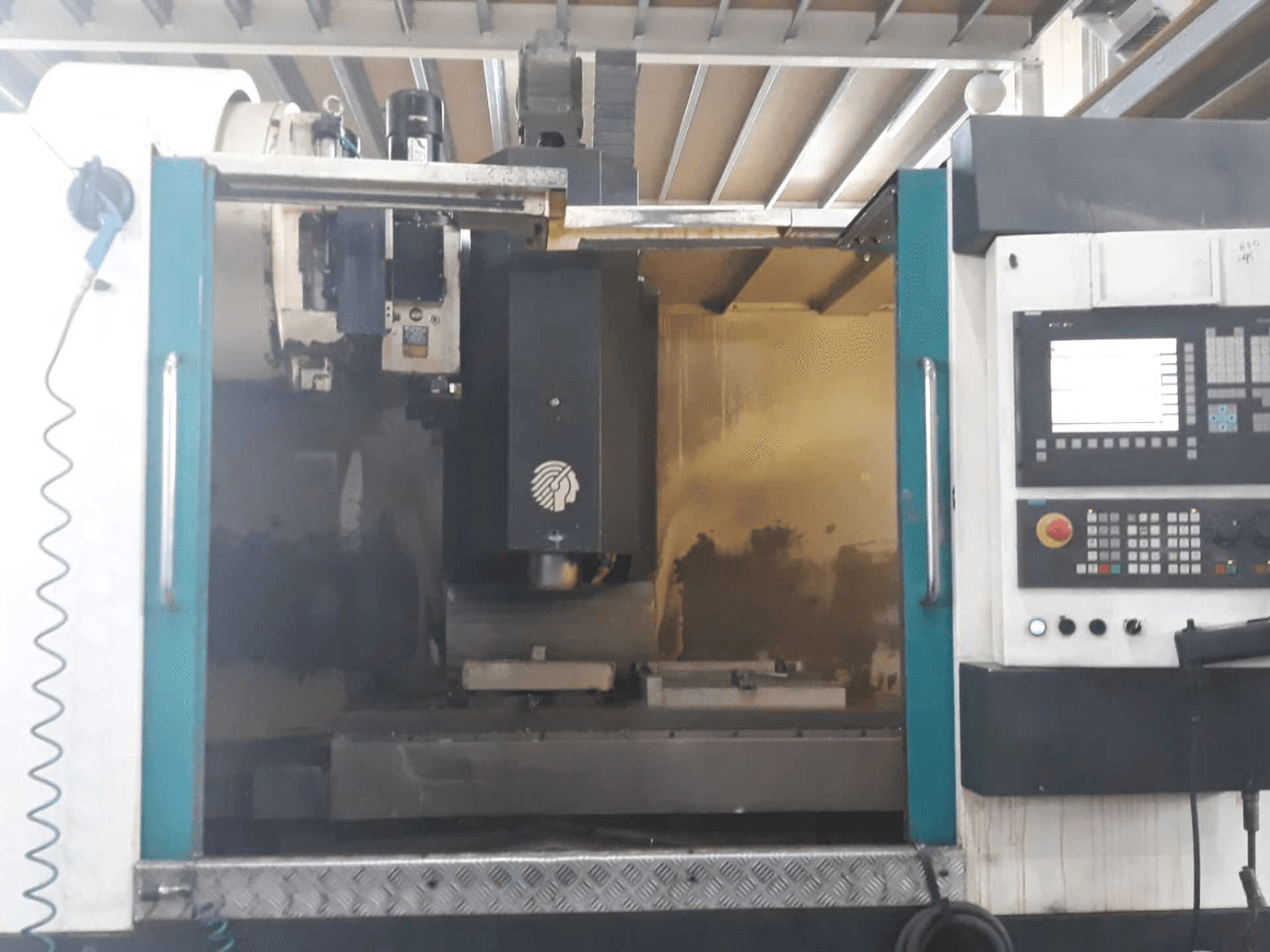

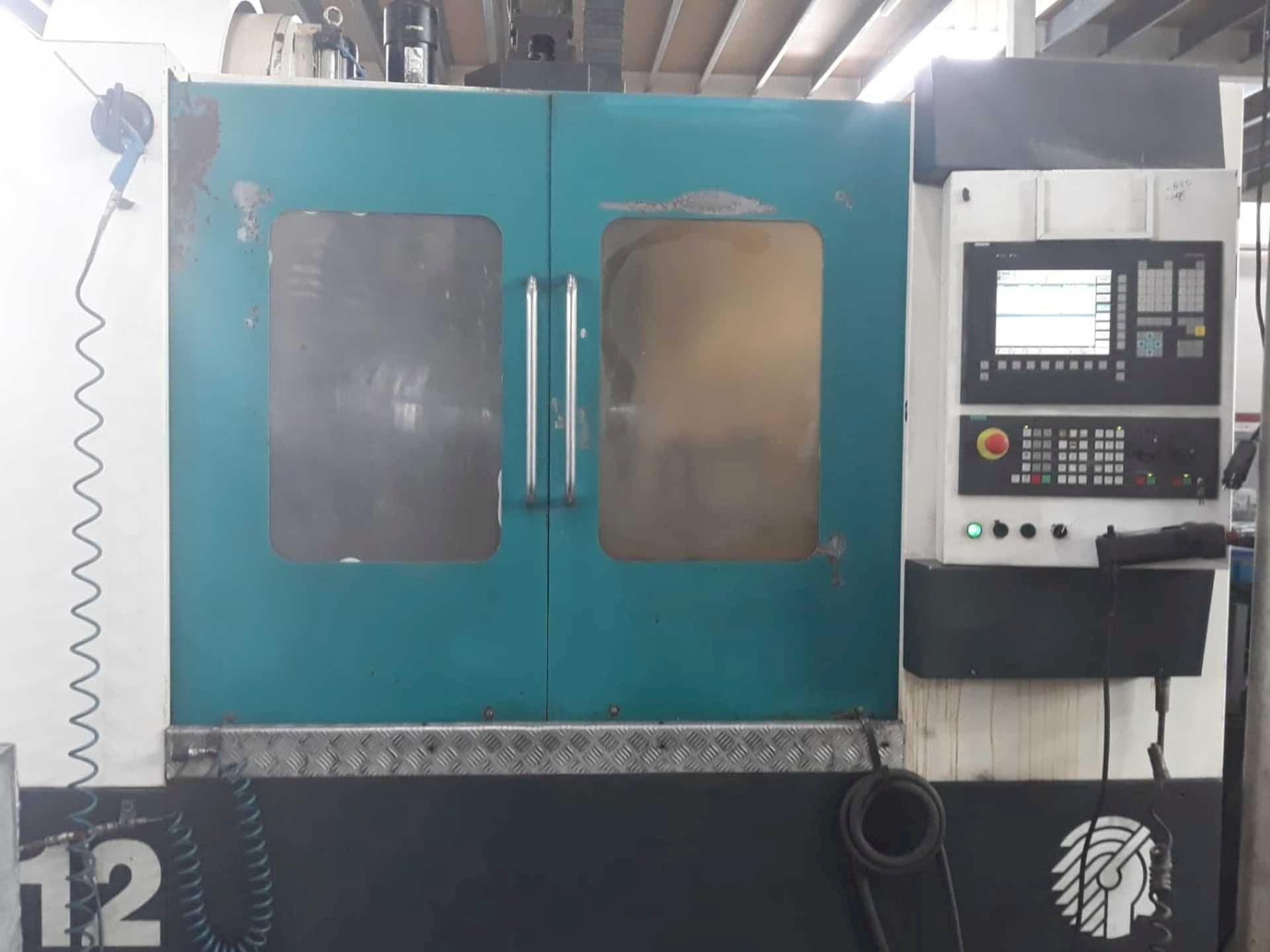

This Huron VX12 Vertical Machine Center was built in the year 2008 in France. It is equipped with a Siemens 810D control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and is like new.

Overview

brand: Huron
year: 2008
MODEL: VX12
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Huron VX12

Control Unit

Control Brand: SIEMENS
Control Model: 810D

Dimensions

Machine Depth: 3140 mm
Machine Height: 2990 mm
Machine Weight: 8500 kg
Table Length: 1400 mm
Table Load: 1200 kg
Table Width: 630 mm

Movement

Number of Axes: 3

Technical Specification

Spindle Power: 10.5 kW
Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Max tool diameter: 80 mm
Max tool length: 250 mm
Max tool weight: 7 kg

Technical Machine Benefits

Longitudinal travel x axis: 1220 mm
Cross travel y-axis: 600 mm
Vertical travel z-axis: 610 mm
Type: linear guide
Distance spindle nose / table area: 150 - 760 mm
Table height relative to the ground: 1075 mm
Grooves (width x spacing x no. ): 15 x 125 x 5 mm
Rapid traverse (x / y / z): 24/24/24 m / min
Working feeds (x / y / z): 10/10/10 m / min
Number of tolls: 30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
