Huron KX 10 Vertical Machining Center

Show in original language

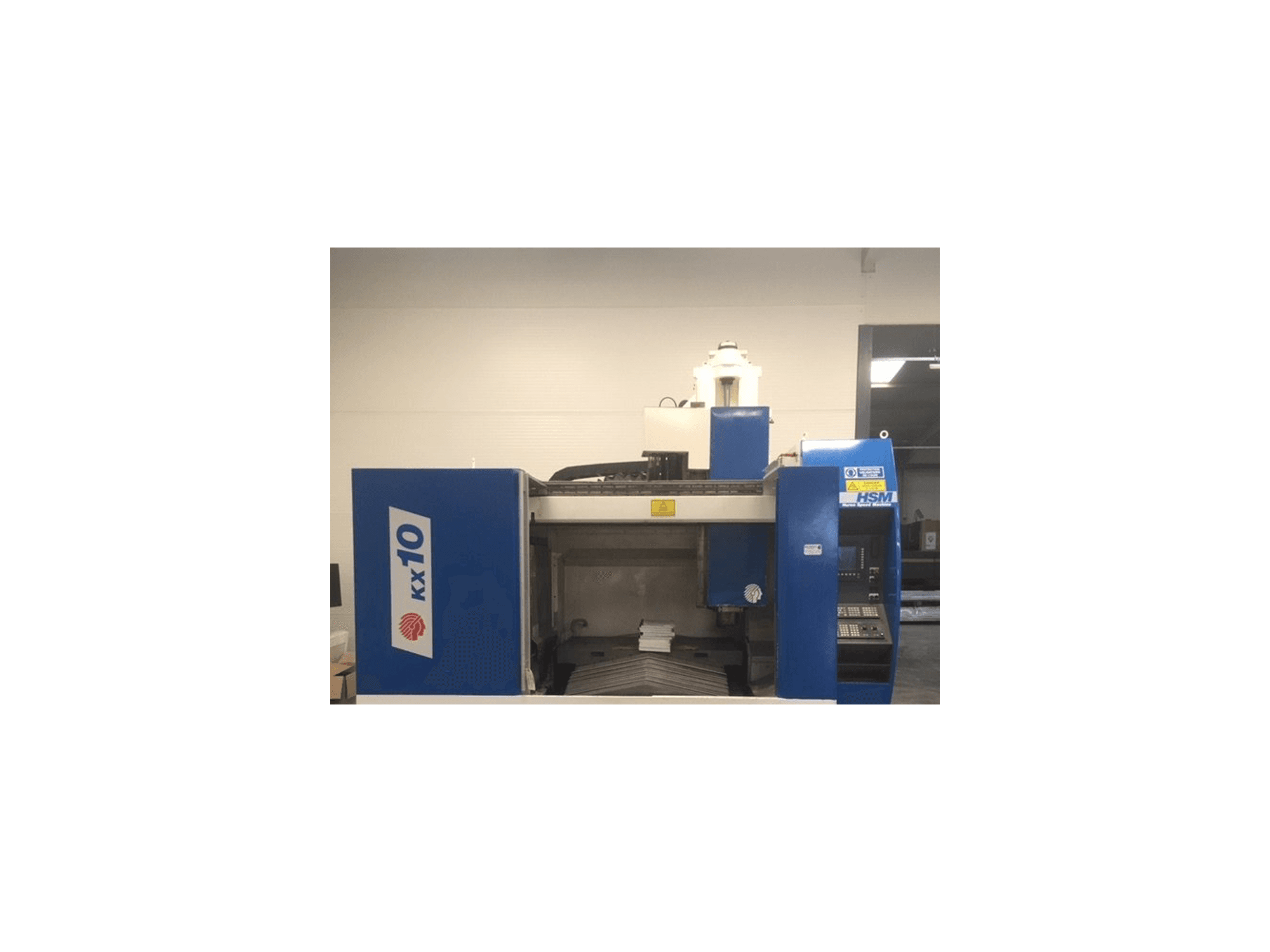

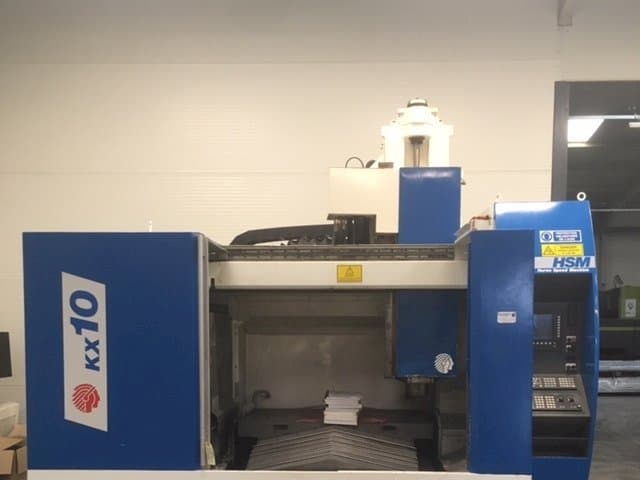

This Huron KX 10 Vertical Machining Center was manufactured in France in 2007. This reliable machine can perform with a spindle speed up to 24000 rpm. It counts with an HSK 63A tool holder, with 20 magazine tools.

Overview

brand: Huron
year: 2007
MODEL: KX 10
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Huron KX 10

Control Unit

Model: 840 D Shopmill
Brand: SIEMENS

Main drive

Spindle speed range: 24000 1/MIN

Movement

X-AXIS Movement: 1000 mm
X-AXIS Working Feed: 0 - 18 m/min
Y-AXIS Movement: 750 mm
Y-AXIS Working Feed: 0 - 18 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Working Feed: 0 - 18 m/min

Table

Outer length: 1250 mm
Outer width: 700 mm
Distance between: 1500 mm
Table load: 1.5 T

Tools

Type of tool holder: HSK 63A

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter 90 mm
- - Tool change units: 20 places

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
