Huron - K2X10DE-MIL-HUR-2013-00002

Name: Huron K2X10
Brand: Huron
SKU: DE-MIL-HUR-2013-00002
Price: 5764850 INR
Availability: InStock

Rs. 5,764,850

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Huron K2X10 Vertical Center For Sale | gindumac.com

Show in original language

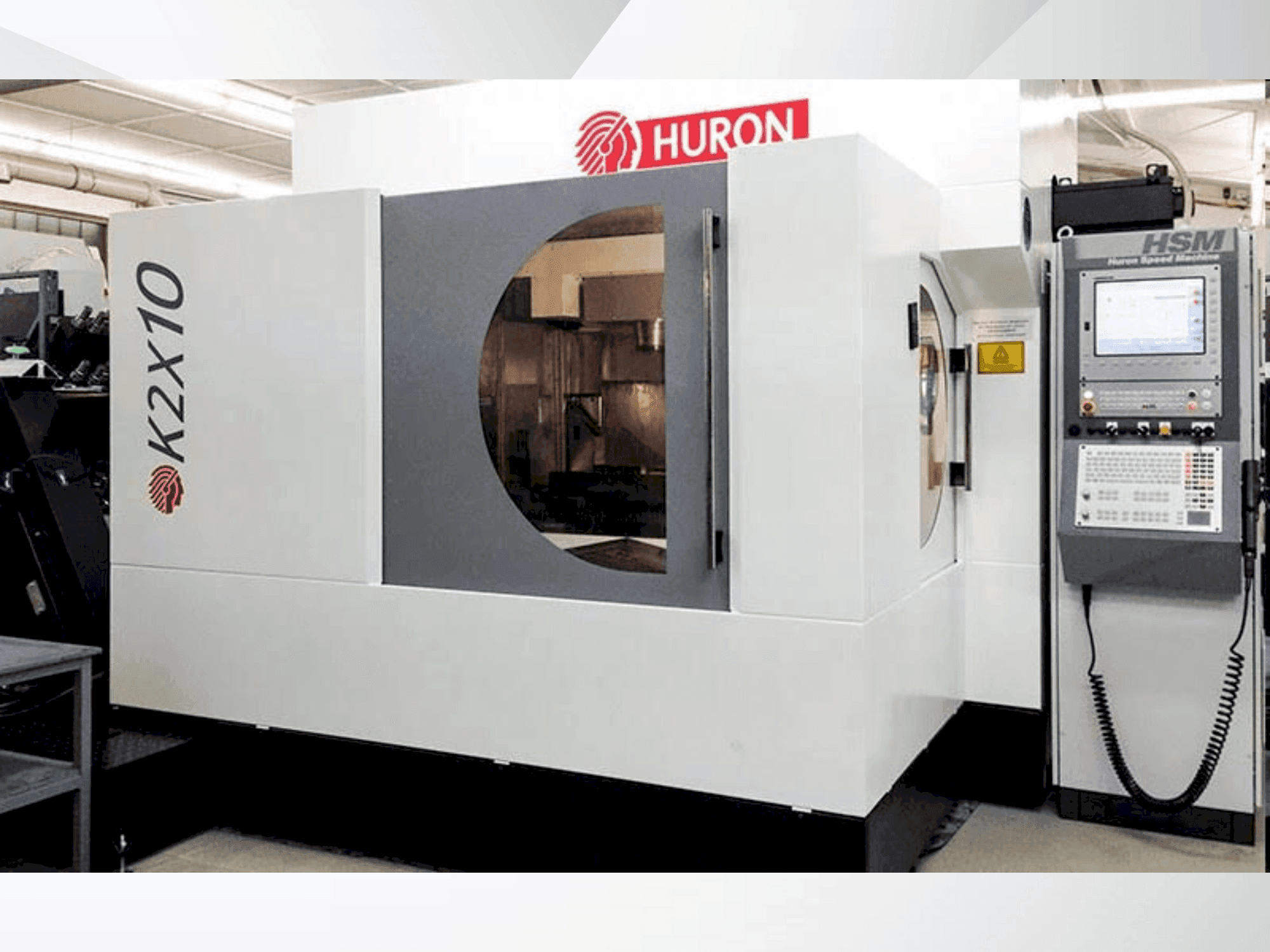

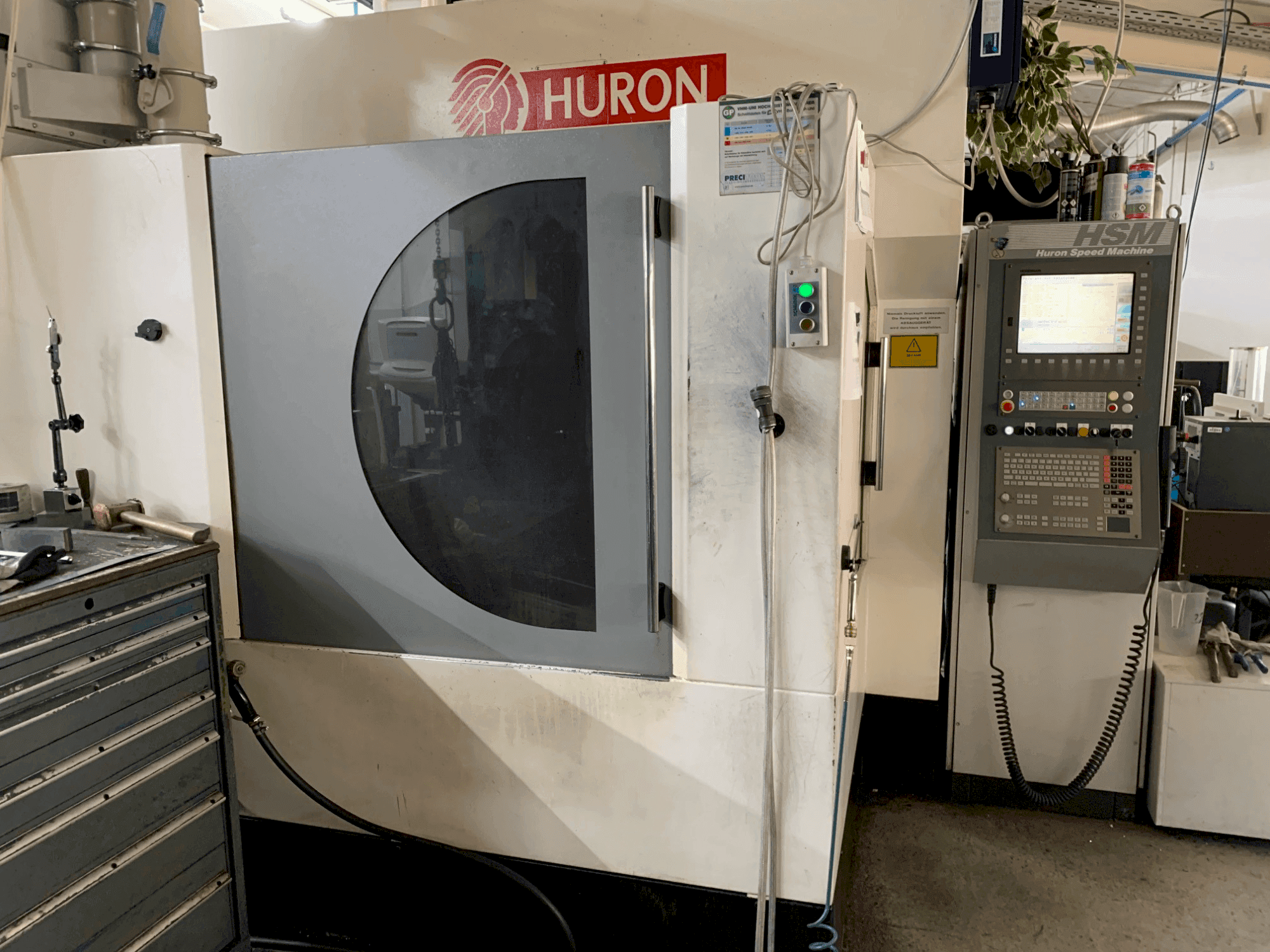

This 3-axis Huron K2X10 vertical machining center was manufactured in 2013. It features a spindle speed of up to 18,000 rpm, a drive power of 25 KW, and rapid traverse rates of 60,000 mm/min. The machine includes a high-pressure coolant system at 50 bar, a chip conveyor, and a carousel tool changer with 30 positions. A great opportunity to buy this Huron K2X10 vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: Huron
year: 2013
MODEL: K2X10
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: Heidenhain

Technical Information - Huron K2X10

Control Unit

Brand: Heidenhain
Model: TNC i530

Main drive

Spindle speed range: 100-18000 1/MIN
Spindle motor power: 25 KW
Tool taper: HSK 63 A

Movement

X-AXIS Movement: 1000 MM
Y-AXIS Movement: 800 MM
Z-AXIS Movement: 500 MM

Media

Internal cooling: Yes
Cooling pressure: 50 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Vibration monitoring of the electrospindle
- - Rapid traverse 60000 mm/mn
- - Hp cooling through tool centre 50 bar- 30 l/mn
- - Air through nozzles
- - Air sealing of the glass scales
- - Rinsing gun
Qualitative Machine Benefits:
- - Tool changer: 30 places instead of 60, as per agreement dated 24/07/13
- - Electrical equipment: 400 v ± 10%- 50 hz ± 2%- en 60 204 incl. Transform
- - Standard manufacturer colour
- - Chip conveyor
- - Tool probe blum- laser system- mounted on structure
- - Hf workpiece probe m&h type 38. 41
- - Belt oil separator for hp cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
