➤ Used Hurco VMX42 For Sale | gindumac.com

Show in original language

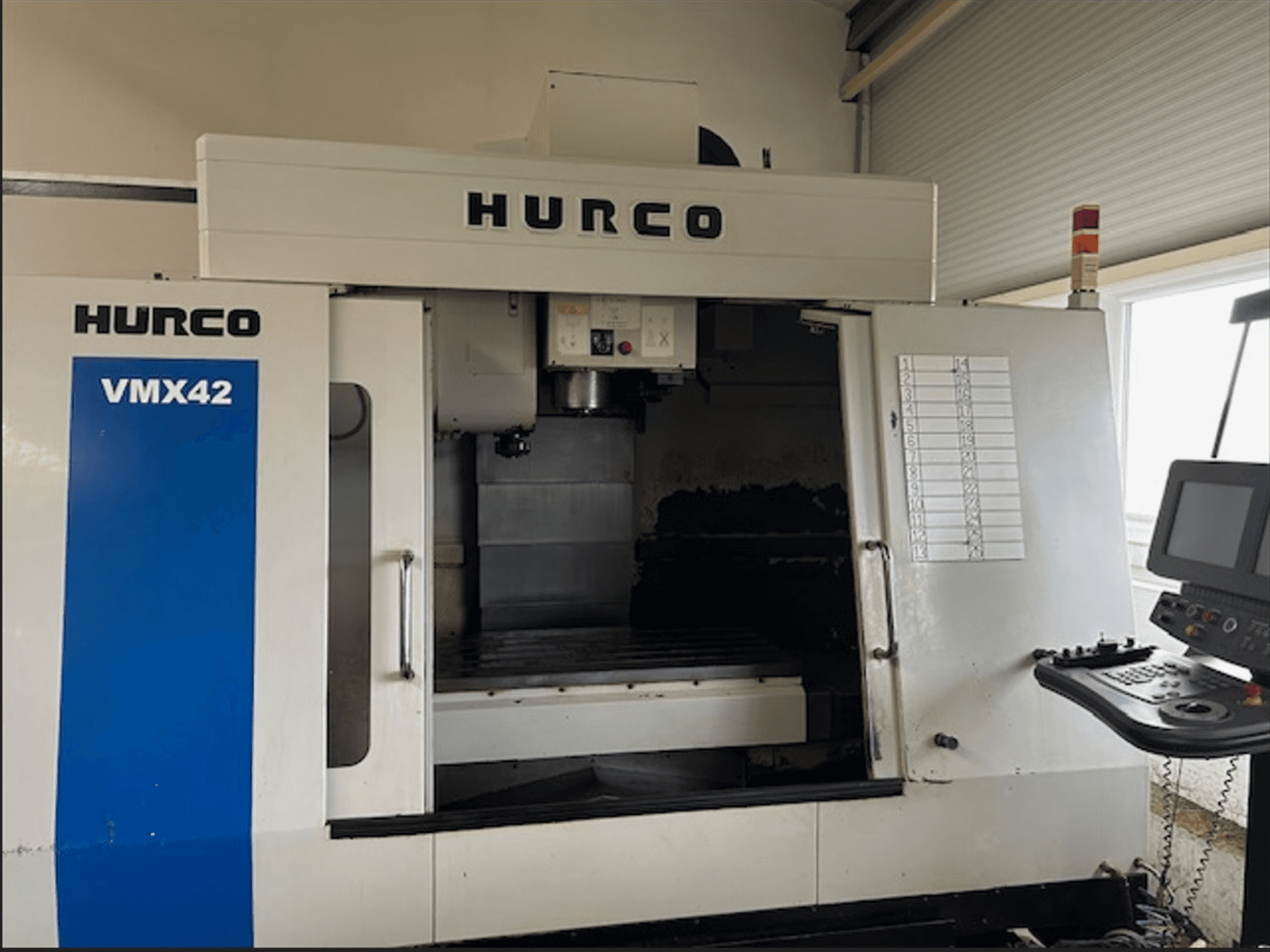

This 3-axis Hurco VMX42 vertical machining center was manufactured in 2007. It features a robust table size of 1,270 × 610 mm, supporting a maximum load of 1,500 kg. Equipped with a high-speed spindle capable of up to 12,000 rpm and a BT40 taper, it ensures efficient machining. The machine includes a 24-tool automatic changer and rapid traverse rates of 24 m/min. Contact us for more information about this machine.

Overview

brand: Hurco
year: 2007
MODEL: VMX42
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
Available from: 14/11/2025

Technical Information - Hurco VMX42

General Data

Measurements width: 2400 mm
Measurements depth: 2800 mm
Measurements height: 2800 mm
Machine weight: 5000 kg

Main drive

Spindle speed range: up to 10000 or 12000 1/MIN
Tool taper: BT40 or CAT40

Movement

X-AXIS Movement: 1067 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 24 m/min

Table

TSlots size: 18 mm
Number of tslots: 5
Table load: 1500 kg

Tools

Number of index: 24
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Additional Information

Table:
- Size: 1,270 × 610 mm
Spindle:
- Lubrication: Grease-lubricated
- Through-spindle coolant (CTS): optional
Feed rates:
- Cutting feed: up to 20 m/min
Tool changer:
- Type: Automatic carousel
Accuracy:
- Positioning: ±0.005 mm
- Repeatability: ±0.003 mm
Control:
- Hurco WinMax CNC
- Display: Dual 19" touchscreen

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
