- ➤ Used Hurco VMX42 For Sale | gindumac.com

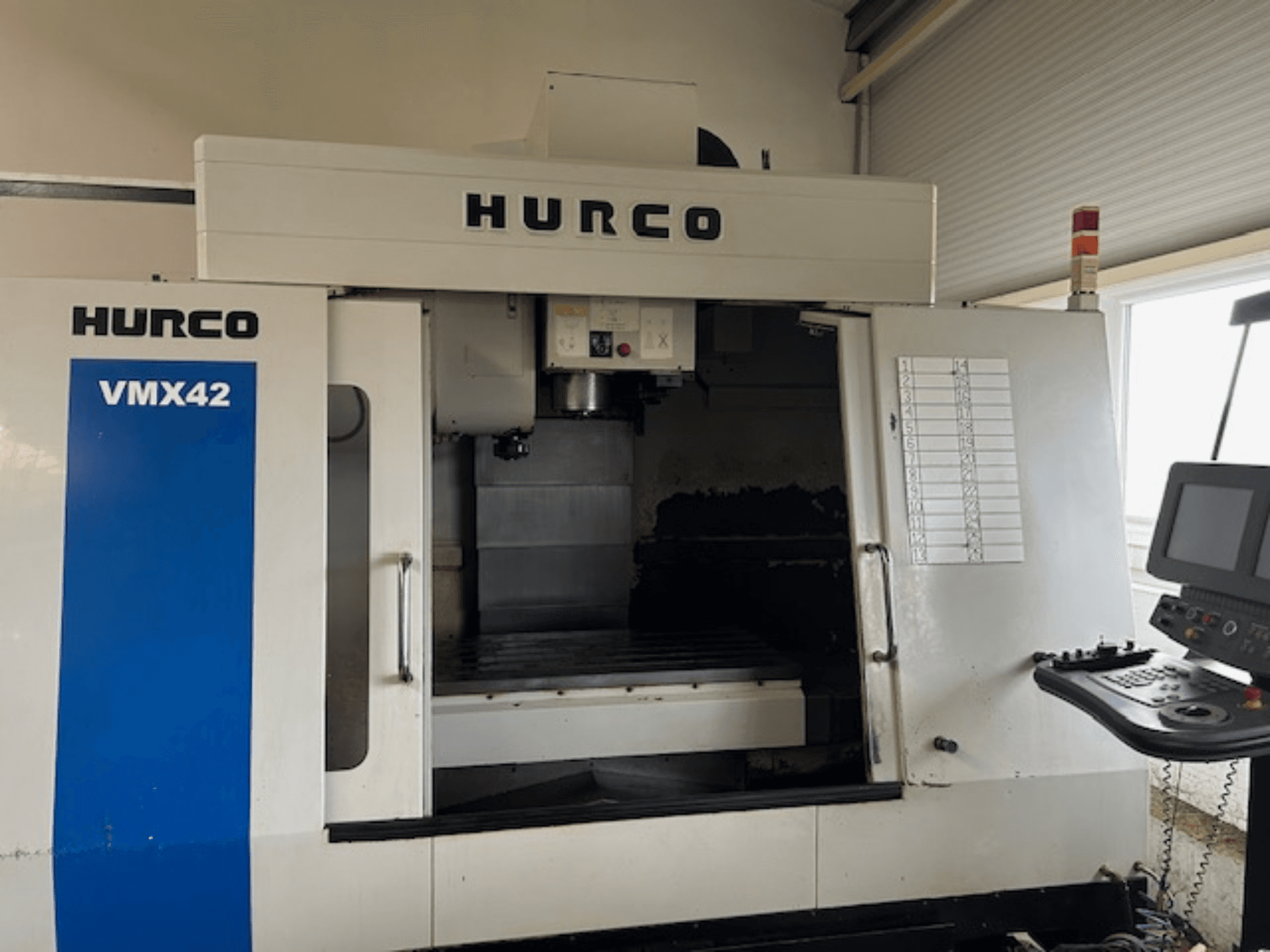

This 3-axis Hurco VMX42 was manufactured in 2006. It features a vertical machining centre with a table size of 1,270 × 610 mm, supporting up to 1,500 kg. The spindle reaches speeds up to 10,000 rpm, powered by a 15 HP motor. It includes a 24-tool magazine with a rapid tool change time. Ideal for precision CNC milling. Consider the opportunity to buy this Hurco VMX42 vertical machining centre. Contact us for more information about this machine.
Overview
- brand: Hurco
- year: 2006
- MODEL: VMX42
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - Hurco VMX42
Dimensions
- Machine Depth: 3000 mm
- Machine Height: 2700 mm
- Machine Weight: 5000 kg
- Table Load: 1500 kg
Movement
- X-axis Travel: 1067 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Table: 1,270 × 610 mm
Through-spindle coolant (optional)
Feed rates: Cutting 12 m/min
Tool changer: 24 tools; Tool change time approx. 4 s
Accuracy: Positioning ±0.005 mm; Repeatability ±0.003 mm
Control: Hurco Ultimax / WinMax; 3-axis standard; 4th axis optional
Power: 400 V / 50 Hz; Connected load 15 kVA; Full load current 30 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
