Hurco VMX24S

Photo Gallery

Hurco - VMX24SIE-MIL-HUR-2006-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

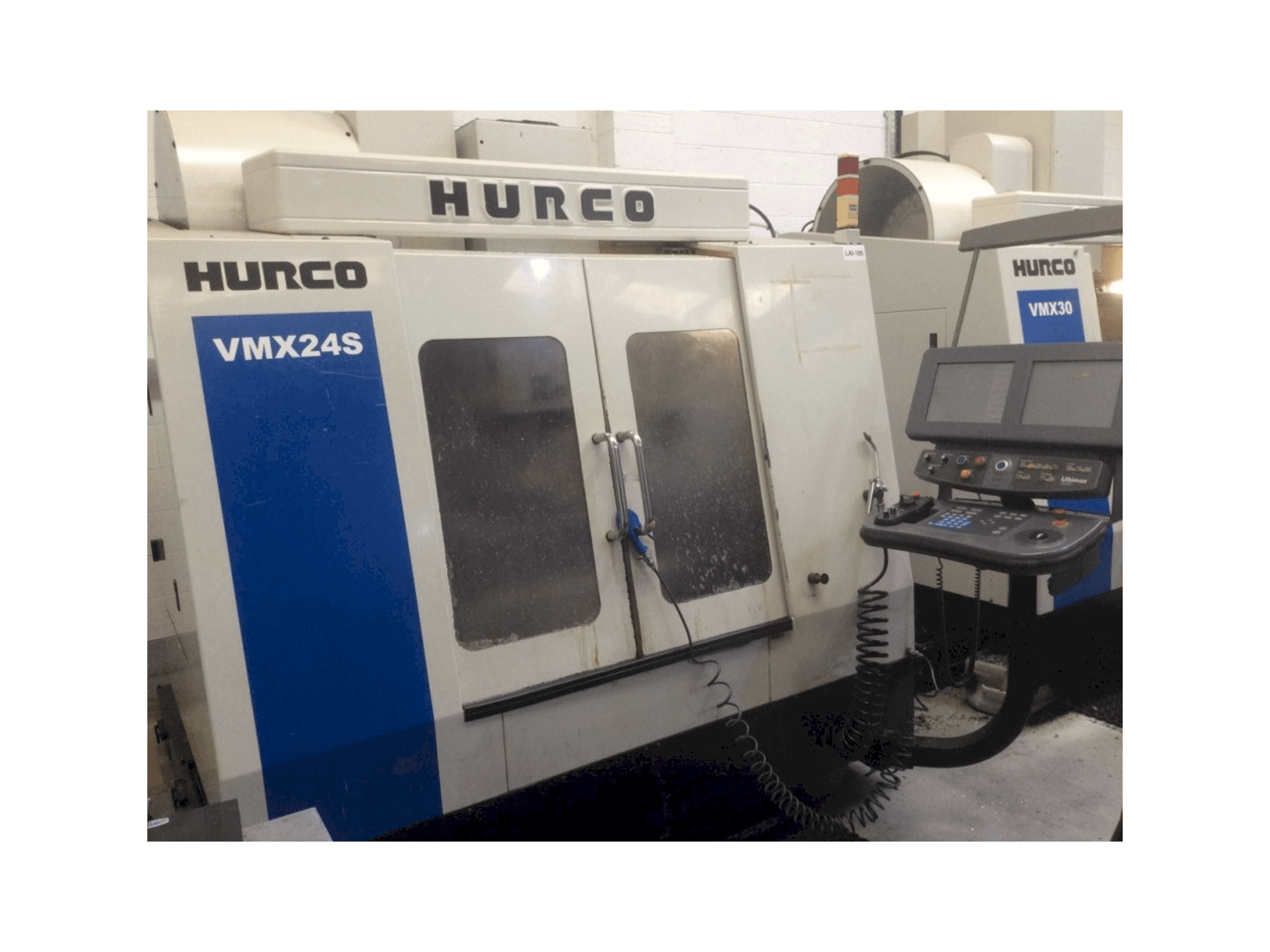

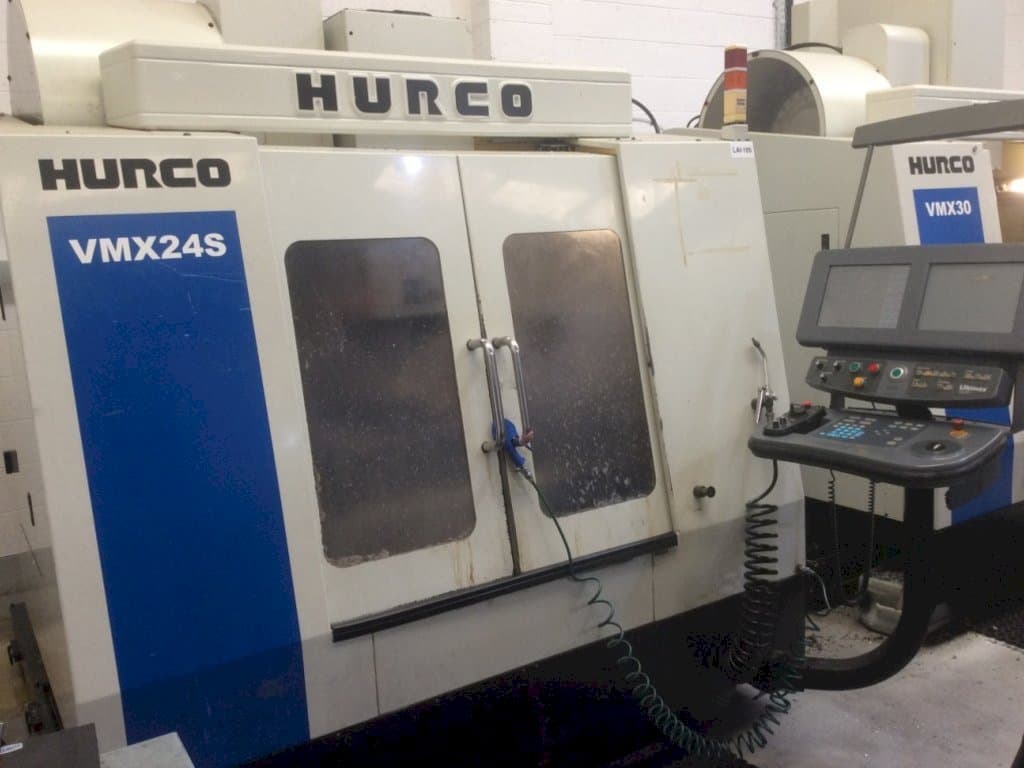

➤ Used Hurco VMX24S - 2006 - Vertical Machining Center

Show in original language

This Hurco VMX24S Vertical Machining Center, produced in Taiwan in 2006. It has a production history of 6119 working hours. It is equipped with a Hurco Ultimax control unit. This machine can work with a spindle speed range up to 15000 rpm. During this past, this Hurco has mainly worked with mild steel and has been maintained regularly. Includes a 5 x Cat 40 tool holders and a spindle chiller. This machine is in very good condition and has been well maintained.

Overview

brand: Hurco
year: 2006
MODEL: VMX24S
production hours: 6119
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX24S

General Data

Measurements width: 2180 mm
Measurements depth: 2950 mm
Measurements height: 2520 mm
Machine weight: 4000 kg

Control Unit

Model: Ultimax
CNC main language: English
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 15000 rpm 1/MIN

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 760 mm
Outer width: 510 mm
TSlots size: 5

Tools

Slots in storage: 24
Type of tool holder: ISO 40

Media

Main electronic connection: 380 V
Internal cooling: Yes

Additional Information

Machine history

Material type: Mildsteel

Machine Benefits

Technical Machine Benefits:
- - 5 x cat 40 tool holders
- - Spindle chiller
- - Includes swarf auger & swarf bin
- - Ulti-pockets
- - Dxf
- - Rigid tap
- - Nc production package
- - Ramp/helical entry
- - Adaptive surface finishing
- - Coolant through nozzles next to the spindle nose.
Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
