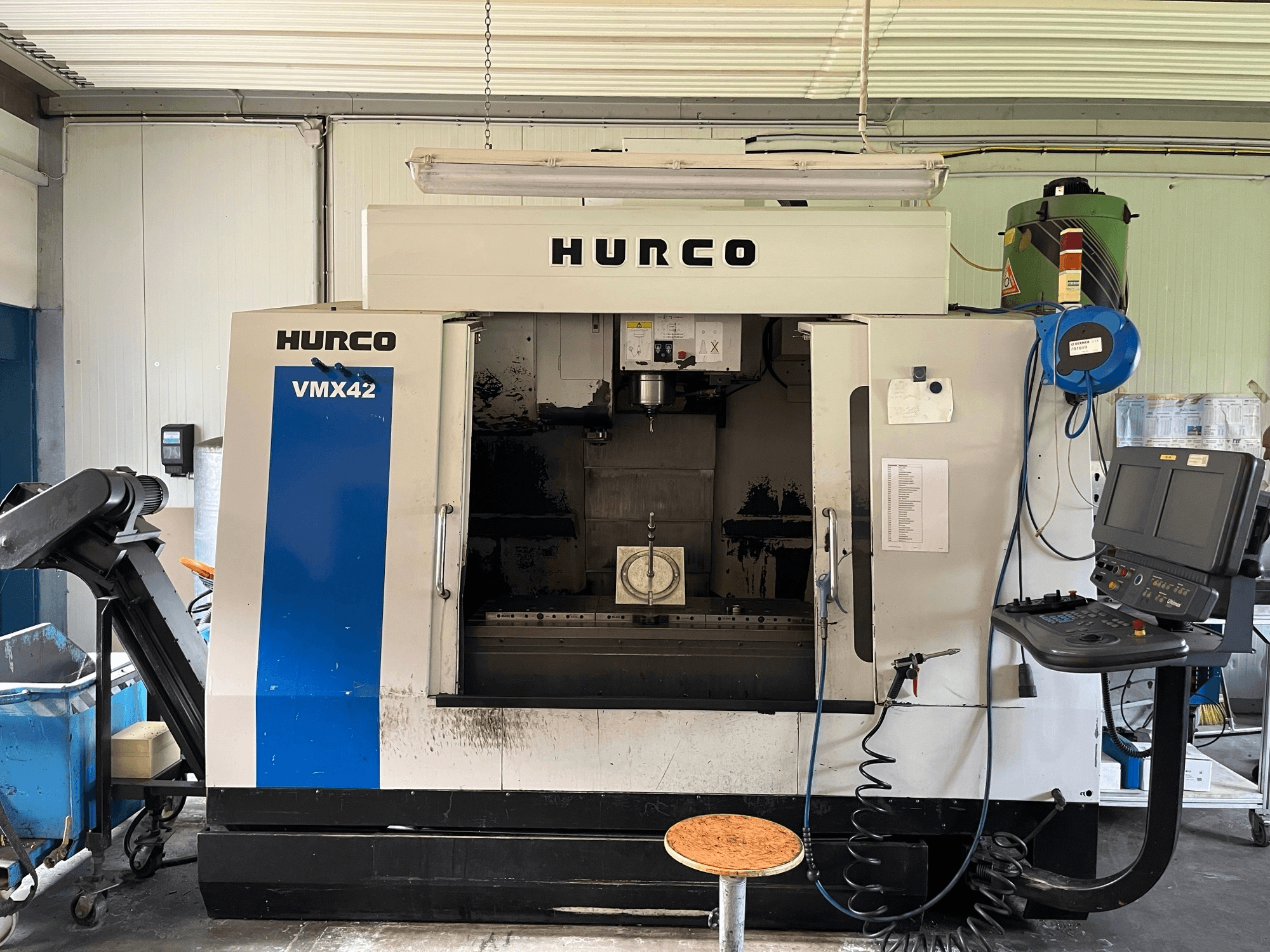

This 3-axis Hurco VMX 42 was manufactured in 2006. It features an X-axis travel of 1060 mm, Y-axis travel of 610 mm, and Z-axis travel of 610 mm. The machine includes a table size of 1270 x 610 mm and a maximum part weight capacity of 500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 42 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Hurco
- year: 2006
- MODEL: VMX 42
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: HURCO
Technical Information - Hurco VMX 42
Control Unit
- Control Brand: HURCO
- Control Model: UltiMax
Dimensions
- Machine Height: 2750 mm
- Machine Length: 2800 mm
- Machine Weight: 6454 kg
- Machine Width: 2450 mm
- Table Length: 1270 mm
- Table Width: 610 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1060 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
Additional Information
- Max Distance Table-Spindle Nose: 150-760 mm
- Max Part Weight: 500 kg
- Spindle Taper: BT 40
- Spindle Speed: 10,000 RPM
- Main Motor Power: 15 kW
- Tool Changer Positions (ATC): 24
- Feed Speed: 30,000 mm/min
- Rapid Feed Rate: 30 m/min
- Total Operating Hours: 22,612.4 hrs
- Spindle Hours: 6,344.2 hrs
- Included Equipment: Coolant through spindle, set of approx. 40x tool-holders BT 40, 1x machine vise, Swarf / chip conveyor, Coolant tank & pump system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
