Hurco VM1

Photo Gallery

Hurco - VM1AT-MIL-HUR-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hurco VM1 Machining Center For Sale | gindumac.com

Show in original language

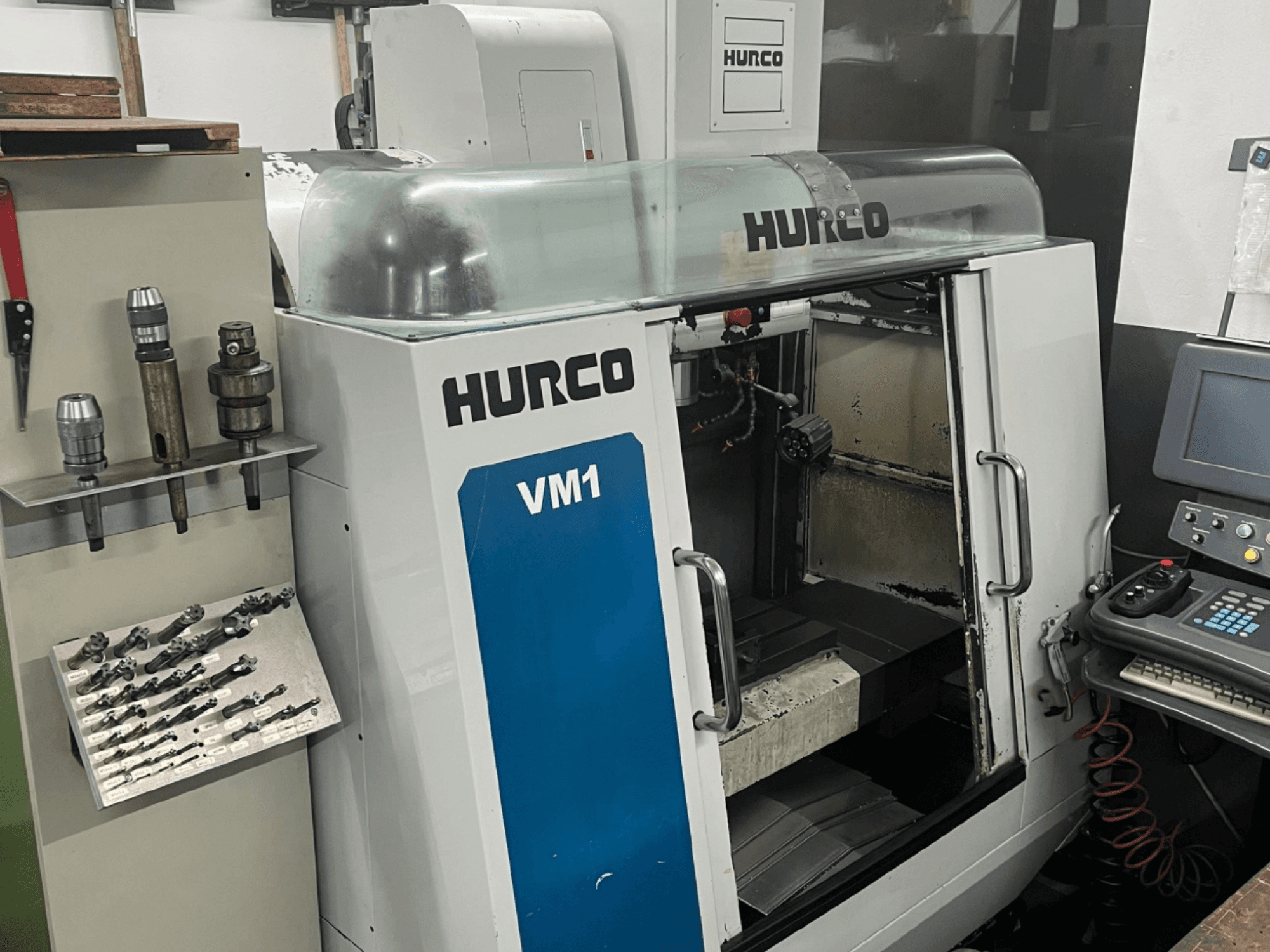

This 3-axis Hurco VM1 was manufactured in 2004. It features a maximum spindle speed of 10,000 rpm and a cutting feed rate of up to 11,400 mm/min. The machine has a table size of approximately 760 × 355 mm and offers a tool changer with 16 stations. If you are looking to get high-quality milling capabilities, consider the Hurco VM1 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Hurco
year: 2004
MODEL: VM1
production hours: 30826
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco VM1

Control Unit

Control Brand: HURCO
Control Model: Ultimax

Dimensions

Machine Weight: 3400 kg

Movement

Number of Axes: 3
X-axis Travel: 660 mm
Y-axis Travel: 355 mm
Z-axis Travel: 455 mm

Technical Specification

Spindle Power: 13 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40

Additional Information

Cutting feed rate: max. 11,400 mm/min
Table size: approx. 760 × 355 mm
Tool changer: 16 stations
Machine hours: 30.826
Condition: Used, good overall condition; fully functional and ready for operation

Additional equipment

Coolant pump
Chip conveyor
Machine vise
3D touch probe
Various collet sets / SK 40 tool holders
Tool cabinet with worktop and bench vise
Additional accessories by arrangement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
