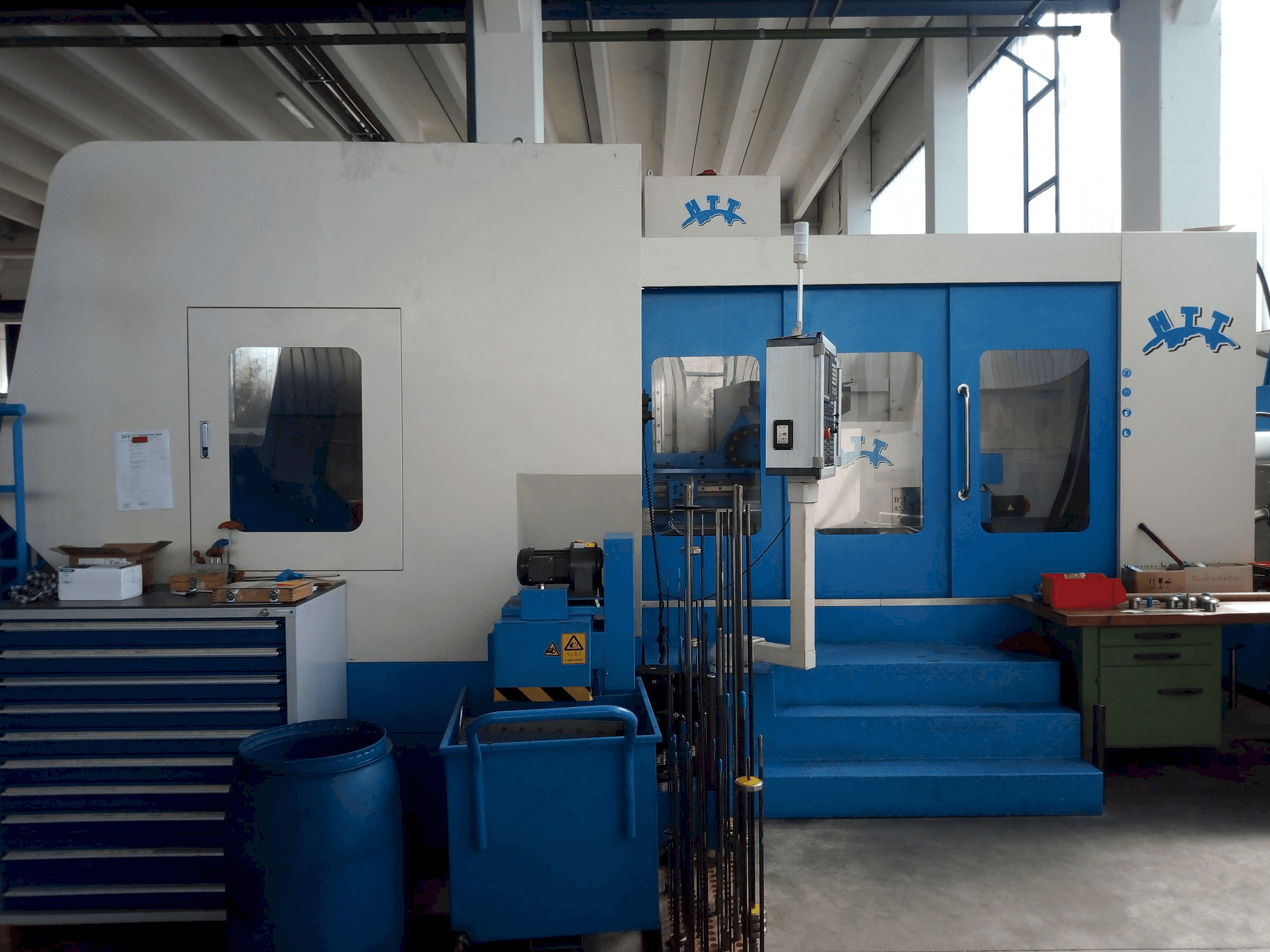

HTT KBR6-1008 Milling Machine

Show in original language

This HTT KBR6-1008 Milling Machine was built in 2017. It is equipped with a Fanuc Oi-MD control unit. This machine works with a spindle speed up to 6000 rpm, a drilling depth of 1000 mm in one stoke, and has a table dimension of 1000 x 1000 mm.

Overview

brand: HTT
year: 2017
MODEL: KBR6-1008
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: FANUC

Technical Information - HTT KBR6-1008

Control Unit

Control Brand: FANUC
Control Model: Oi-MD

Dimensions

Machine Depth: 5500 mm
Machine Height: 3000 mm
Machine Weight: 9000 kg
Table Length: 1000 mm
Table Load: 5000 kg
Table Width: 1000 mm

Movement

X-axis Travel: 1000 mm
Y-axis Travel: 800 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

Additional coolant oil at external device for tools refrigeration

Machine Benefits

Qualitative Machine Benefits

Completely closed safeguard with sliding doors and removable back cover, easy for machine maintenance

Technical Machine Benefits

Complete protection safeguard
Cooling capacity: oil tank 800l, max pressure 100 bar, max flow 85l/min
Chip conveyor: split the coolant oil of the metal chips, chip trolley
Tilting column and rotating work table (5 axis)
4 liner axis x,y,z,w
Telescopic covers
Table controlled with servo system
External device for tools refrigeration
1 piece adapter for gun drilling
2 pieces travelling whip guides

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
