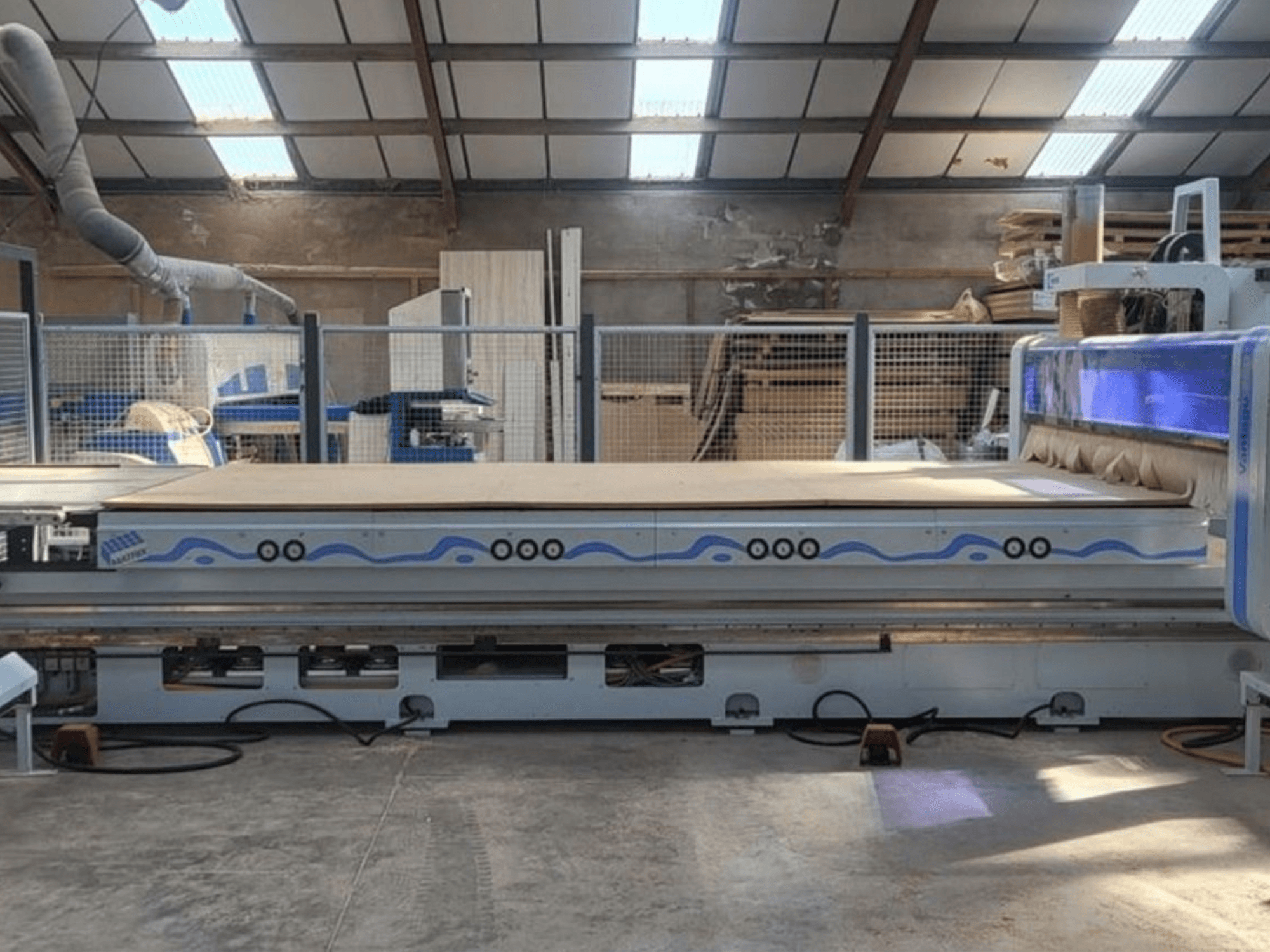

This 3-axis HOMAG WEEKE BHP200/VANTAGE714 CNC Machining Centre was manufactured in 2013. It features an impressive working area with an X-axis of approximately 4300 mm and a Y-axis of around 2250 mm. The machine is equipped with a powerful 10 kW spindle capable of reaching up to 24,000 RPM and includes a 14-position automatic tool changer. If you are looking to get high-quality CNC routing capabilities, consider the HOMAG WEEKE BHP200/VANTAGE714 machine we have for sale. Contact us for further details.
Overview
- brand: HOMAG WEEKE
- year: 2013
- MODEL: BHP200/VANTAGE714
- application type: CNC Wood Machining
- Location: Ireland
- machine type: CNC Router
Technical Information - HOMAG WEEKE BHP200/VANTAGE714
Movement
- Number of Axes: 3
- X-axis Travel: 4300 mm
- Y-axis Travel: 2250 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 10 kW
- Spindle Speed: 24000 RPM
Additional Information
Series: Weeke Vantage 200 platform
Electrical specs (from plate)
Supply: 415Y / 240 V
Phases: 3-phase
Frequency: 50 Hz
Full load current: 61 A
Recommended fuse: 80 A
Control voltage: 24 V
Spindle
Tool interface: usually HSK-F63
Tool change: automatic
Axes
Servo-driven gantry system
Tool changer
14-position
Drilling block
Vertical drills
Horizontal drills
Grooving saw
Table type
Flat nesting vacuum table
MATRIX table variants
Zoned vacuum system
Automatic vacuum control
Controller / software (usually paired with)
HOMAG Power Control / Homatic 2000 IPC
WoodWOP software
MCC production software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
